Instrument Panel (Lower) (Itatiaia (Brazil)) ((V) Fromgt000001)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Instrument Panel (Lower) (Itatiaia (Brazil)) ((V) FROMGT000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR006453 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR044894 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR004023 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR006214 NUT Enquire To Order
Photo Part No Description Price (each) Stock
LR028425 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR027849 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR028417 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR000695 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
PYP500140 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR026105 BEZEL - GLOVE BOX MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR026052 FINISHER - INSTRUMENT PANEL CENTRE Enquire To Order
LR026053 FINISHER - INSTRUMENT PANEL CENTRE Enquire To Order
LR026057 FINISHER - INSTRUMENT PANEL CENTRE Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR031956 FINISHER - DECORATIVE TRIM Enquire To Order
LR031962 FINISHER - DECORATIVE TRIM Enquire To Order
Photo Part No Description Price (each) Stock
LR026131 PANEL - INSTRUMENT - LOWER Enquire To Order
LR026125 PANEL - INSTRUMENT - LOWER Enquire To Order
Photo Part No Description Price (each) Stock
LR026088 CAP - SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR071009 COVER - INSTRUMENT CLUSTER Enquire To Order
Photo Part No Description Price (each) Stock
LR026100 COVER - INSTRUMENT CLUSTER Enquire To Order
Photo Part No Description Price (each) Stock
LR059776 COVER - ADDITIONAL FUSE BOX Enquire To Order
Photo Part No Description Price (each) Stock
LR026348 GRILLE - AIR CONDITIONING SENSOR Enquire To Order
LR026349 GRILLE - AIR CONDITIONING SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
LR072893 MOULDING - INSTRUMENT PANEL Enquire To Order
LR026411 MOULDING - INSTRUMENT PANEL Enquire To Order
LR072895 MOULDING - INSTRUMENT PANEL Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR072865 MOULDING - INSTRUMENT PANEL Enquire To Order
LR026405 MOULDING - INSTRUMENT PANEL Enquire To Order
LR072867 MOULDING - INSTRUMENT PANEL Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR026091 MOULDING - INSTRUMENT PANEL Enquire To Order
LR026092 MOULDING - INSTRUMENT PANEL Enquire To Order
Photo Part No Description Price (each) Stock
LR072759 FINISHER - SWITCH START STOP Enquire To Order
LR072758 FINISHER - SWITCH START STOP Enquire To Order
Photo Part No Description Price (each) Stock
LR026059 FILLER - STEERING COLUMN Enquire To Order
Photo Part No Description Price (each) Stock
LR026096 BEZEL - INSTRUMENT PANEL Enquire To Order
Photo Part No Description Price (each) Stock
LR071517 BEZEL - INSTRUMENT PANEL Enquire To Order
View All

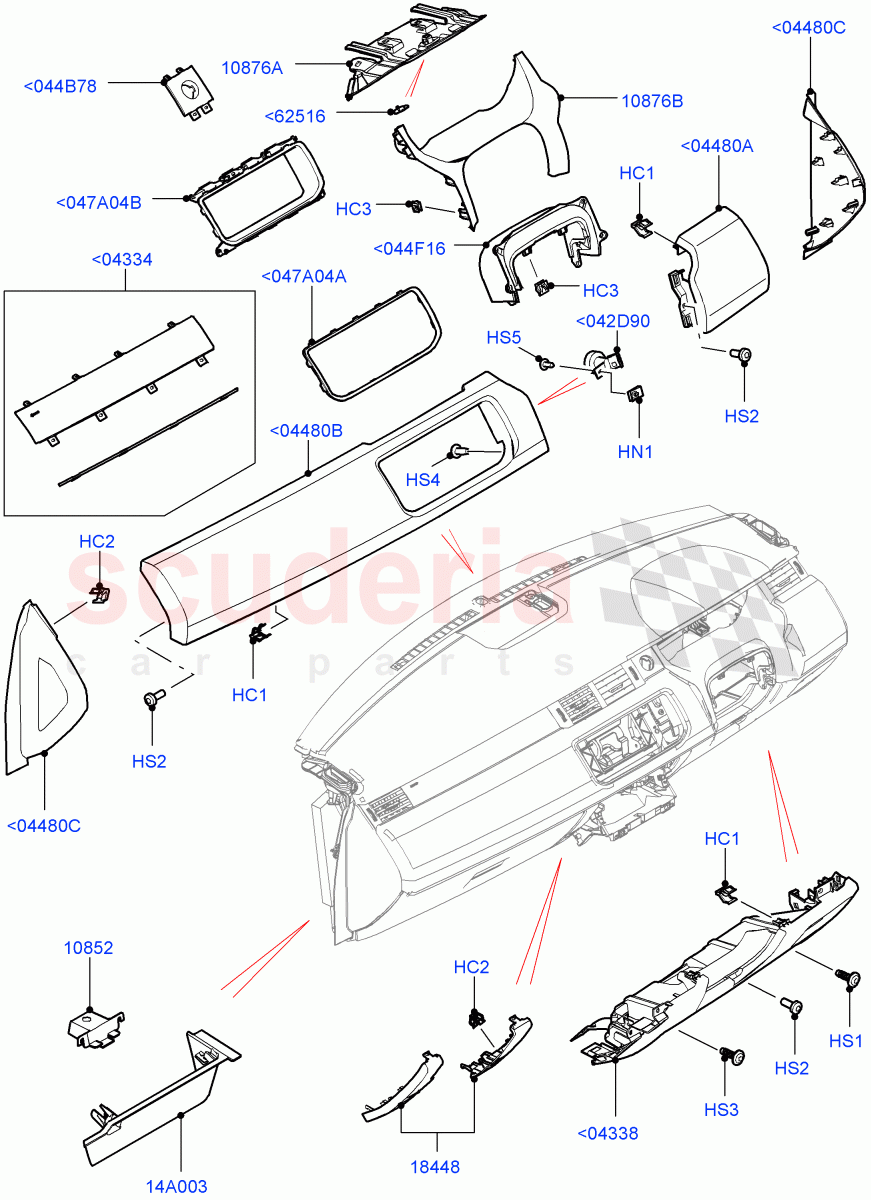

Instrument Panel (Lower) (Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<042D90 LR026348
GRILLE - AIR CONDITIONING SENSOR
I/P Facia Contrast - Ebony Black / From: GT000001 		- 1 Enquire
<042D90 LR026349
GRILLE - AIR CONDITIONING SENSOR
I/P Facia Contrast-Espresso/Almond / From: GT000001 		- 1 Enquire
<044B78 LR072759
FINISHER - SWITCH START STOP
Satin Brushed Metal / Finisher - Stop/Start Switch / From: GT000001 		- 1 Enquire
<044B78 LR072758
FINISHER - SWITCH START STOP
Gloss Black Strata / Finisher - Stop/Start Switch / From: GT000001 		- 1 Enquire
<044F16 LR026059
FILLER - STEERING COLUMN
From: GT000001 		- 1 Enquire
<047A04A LR026096
BEZEL - INSTRUMENT PANEL
From: GT000001 		- 1 Enquire
<047A04B LR071517
BEZEL - INSTRUMENT PANEL
NGI Head Unit / From: GT000001 		- 1 Enquire
<04334 LR031956
FINISHER - DECORATIVE TRIM
Satin Brushed Metal / From: GT000001 		- 1 Enquire
<04334 LR031962
FINISHER - DECORATIVE TRIM
Gloss Black Strata / From: GT000001 		- 1 Enquire
<04338 LR026131
PANEL - INSTRUMENT - LOWER
I/P Facia Contrast - Ebony Black / From: GT000001 		- 1 Enquire
<04338 LR026125
PANEL - INSTRUMENT - LOWER
I/P Facia Contrast-Espresso/Almond / From: GT000001 		- 1 Enquire
<04480A LR072893
MOULDING - INSTRUMENT PANEL
Ebony/Lunar, I/P Facia Contrast - Ebony Black, Premium Leather Facia / From: GT000001 		- 1 Enquire
<04480A LR026411
MOULDING - INSTRUMENT PANEL
Ebony Black/Ebony Black Interior, I/P Facia Contrast - Ebony Black, Premium Leather Facia / From: GT000001 		- 1 Enquire
<04480A LR072895
MOULDING - INSTRUMENT PANEL
Ebony/Pimento Red, I/P Facia Contrast - Ebony Black, Premium Leather Facia / From: GT000001 		- 1 Enquire
<04480A LR026363
MOULDING - INSTRUMENT PANEL
Ebony Black/Ebony Black Interior, I/P Facia Contrast - Ebony Black, With PVC Facia / From: GT000001 		- 1 Enquire
<04480A LR026364
MOULDING - INSTRUMENT PANEL
I/P Facia Contrast-Espresso/Almond, With PVC Facia / From: GT000001 		- 1 Enquire
<04480A LR031602
MOULDING - INSTRUMENT PANEL
Ebony/Pimento Red, I/P Facia Contrast - Ebony Black, With PVC Facia / From: GT000001 		- 1 Enquire
<04480B LR072865
MOULDING - INSTRUMENT PANEL
Ebony/Lunar, I/P Facia Contrast - Ebony Black, Premium Leather Facia / From: GT000001 		- 1 Enquire
<04480B LR026405
MOULDING - INSTRUMENT PANEL
Ebony Black/Ebony Black Interior, I/P Facia Contrast - Ebony Black, Premium Leather Facia / From: GT000001 		- 1 Enquire
<04480B LR072867
MOULDING - INSTRUMENT PANEL
Ebony/Pimento Red, I/P Facia Contrast - Ebony Black, Premium Leather Facia / From: GT000001 		- 1 Enquire
<04480B LR026355
MOULDING - INSTRUMENT PANEL
Ebony Black/Ebony Black Interior, I/P Facia Contrast - Ebony Black, With PVC Facia / From: GT000001 		- 1 Enquire
<04480B LR072874
MOULDING - INSTRUMENT PANEL
Ebony/Lunar, I/P Facia Contrast - Ebony Black, With PVC Facia / From: GT000001 		- 1 Enquire
<04480B LR026356
MOULDING - INSTRUMENT PANEL
I/P Facia Contrast-Espresso/Almond, With PVC Facia / From: GT000001 		- 1 Enquire
<04480C LR026091
MOULDING - INSTRUMENT PANEL
RH / From: GT000001 		- 1 Enquire
<04480C LR026092
MOULDING - INSTRUMENT PANEL
LH / From: GT000001 		- 1 Enquire
<62516 LR026088
CAP - SCREW
From: GT000001 		- 1 Enquire
HC1 LR006453
CLIP
8.5 X 16 X 1.7 / From: GT000001 		- 1 Enquire
HC2 LR044894
CLIP
0.8 - 2.5 / From: GT000001 		- 1 Enquire
HC3 LR004023
CLIP
1.4 M, Push On / From: GT000001 		- 1 Enquire
HN1 LR006214
NUT
4.2 X 2.25 - 3 / From: GT000001 		- 1 Enquire
HS1 LR028425
SCREW
M6 X 1.4 X 17 / From: GT000001 		- 1 Enquire
HS2 LR027849
SCREW
M6 X 16MM / From: GT000001 		- 1 Enquire
HS3 LR028417
SCREW
M6 X 20MM / From: GT000001 		- 1 Enquire
HS4 LR000695
SCREW
M4 x 10MM / From: GT000001 		- 1 Enquire
HS5 PYP500140
SCREW
4.2 x 13MM, Torx / From: GT000001 		- 1 Enquire
14A003 LR059776
COVER - ADDITIONAL FUSE BOX
Ebony Black / From: GT000001 		- 1 Enquire
10852 LR026105
BEZEL - GLOVE BOX MOUNTING
From: GT000001 		- 1 Enquire
10876A LR071009
COVER - INSTRUMENT CLUSTER
Upper / From: GT000001 		- 1 Enquire
10876B LR026100
COVER - INSTRUMENT CLUSTER
Lower / From: GT000001 		- 1 Enquire
18448 LR026052
FINISHER - INSTRUMENT PANEL CENTRE
I/P Facia Contrast - Ebony Black / RH / From: GT000001 		- 1 Enquire
18448 LR026053
FINISHER - INSTRUMENT PANEL CENTRE
I/P Facia Contrast-Espresso/Almond / RH / From: GT000001 		- 1 Enquire
18448 LR026057
FINISHER - INSTRUMENT PANEL CENTRE
I/P Facia Contrast - Ebony Black / LH / From: GT000001 		- 1 Enquire
18448 LR026058
FINISHER - INSTRUMENT PANEL CENTRE
I/P Facia Contrast-Espresso/Almond / LH / From: GT000001 		- 1 Enquire
