Thermostat/Housing & Related Parts (2.2L Dohc Efi Tc Dw12, 2.2L Cr Di 16V Diesel)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Thermostat/Housing & Related Parts (2.2L DOHC EFI TC DW12, 2.2L CR DI 16V Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR000642 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR002851 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR002852 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR002995 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR001312 THERMOSTAT AND HOUSING Enquire To Order
Photo Part No Description Price (each) Stock
LR000678 CLIP - RETAINING Enquire To Order
Photo Part No Description Price (each) Stock
LR004161 GASKET - THERMOSTAT HOUSING Enquire To Order
Photo Part No Description Price (each) Stock
LR002841 CLAMP - TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR006857 SENSOR - ENGINE COOLANT TEMPERATURE Enquire To Order
View All

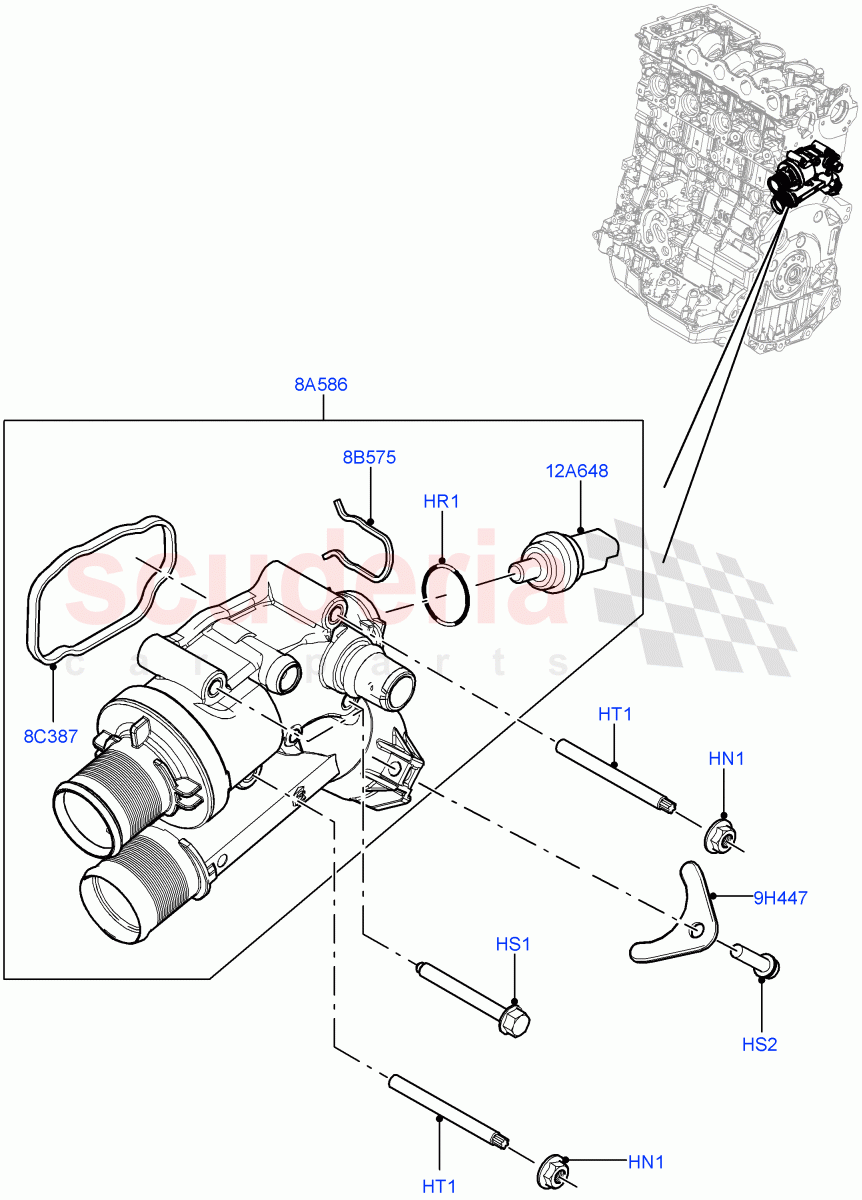

Thermostat/Housing & Related Parts (2.2L DOHC EFI TC DW12, 2.2L CR DI 16V Diesel) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 		- 2 Enquire
HR1 LR000642
O-RING
To Engine Coolant Temperature Sensor 		- 1 Enquire
HS1 LR002851
SCREW
M6, Thermostat Housing 		- 2 Enquire
HS2 LR002852
SCREW
M6 X 16MM 		- 2 Enquire
HT1 LR002995
STUD
M6 		- 2 Enquire
8A586 LR001312
THERMOSTAT AND HOUSING
Thermostat And Housing With Sensor 		- 1 Enquire
8B575 LR000678
CLIP - RETAINING
Sensor 		- 1 Enquire
8C387 LR004161
GASKET - THERMOSTAT HOUSING
Thermostat Housing 		- 1 Enquire
9H447 LR002841
CLAMP - TUBE 		- 1 Enquire
12A648 LR006857
SENSOR - ENGINE COOLANT TEMPERATURE 		- 1 Enquire
