Name: Cooling System Pipes And Hoses (2.2L CR DI 16V Diesel) ((V) TODH999999)
Rating: 5.0 (1 reviews)

View All

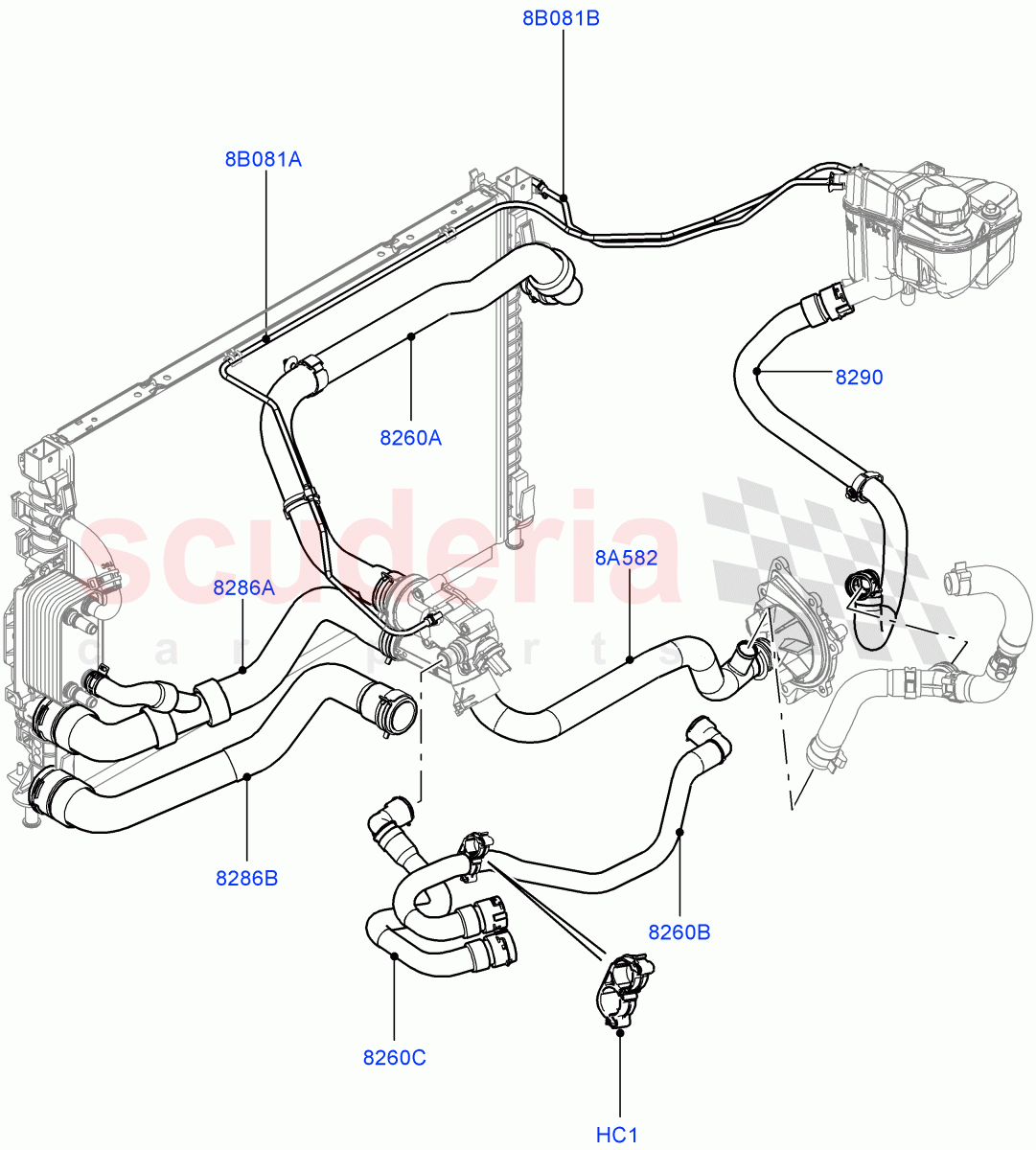

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR003010	CLIP	$5.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024243	HOSE - COOLING SYSTEM	$44.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032349	HOSE - RADIATOR	$73.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000943	HOSE - COOLING SYSTEM	$30.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000941	HOSE - COOLING SYSTEM	$60.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR026707	HOSE - RADIATOR	$76.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005300	HOSE - RADIATOR	$20.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001311	HOSE - WATER BY-PASS	$174.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024252	HOSE - OVERFLOW CONTAINER	$25.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024251	HOSE - DEGAS COOLING SYSTEM	$15.05	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR003010	CLIP	LR003010 CLIP 19/19MM, Double	$5.54	1
8A582	LR001311	HOSE - WATER BY-PASS	LR001311 HOSE - WATER BY-PASS From Water Pump To Thermostat	$174.40	1
8B081A	LR024252	HOSE - OVERFLOW CONTAINER	LR024252 HOSE - OVERFLOW CONTAINER Engine Degas Line	$25.33	1
8B081B	LR024251	HOSE - DEGAS COOLING SYSTEM	LR024251 HOSE - DEGAS COOLING SYSTEM Radiator Degas Line, Top Of Radiator To Top Of Supply Tank	$15.05	1
8260A	LR032349	HOSE - RADIATOR	LR032349 HOSE - RADIATOR Radiator Hose, Top	$73.52	1
8260B	LR000943	HOSE - COOLING SYSTEM	LR000943 HOSE - COOLING SYSTEM From EGR Cooler To Heater Inlet	$30.12	1
8260C	LR000941	HOSE - COOLING SYSTEM IN STOCK	LR000941 HOSE - COOLING SYSTEM From Heater Outlet To Thermostat IN STOCK	$60.81	1
8286A	LR026707	HOSE - RADIATOR	LR026707 HOSE - RADIATOR 6 Speed Auto AWF21 AWD / Bottom, Radiator Hose	$76.02	1
8286B	LR005300	HOSE - RADIATOR	LR005300 HOSE - RADIATOR 6 Speed Manual Trans-JLR M66 2WD / Bottom, Radiator Hose	$20.68	1
8290	LR024243	HOSE - COOLING SYSTEM	LR024243 HOSE - COOLING SYSTEM Expansion Tank To Pump	$44.61	1

Cooling System Pipes And Hoses (2.2L Cr Di 16V Diesel) ((V) Todh999999)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]
