Cooling System Pipes And Hoses (2.2L CR DI 16V Diesel) ((V) FROMEH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Cooling System Pipes And Hoses (2.2L CR DI 16V Diesel) ((V) FROMEH000001)

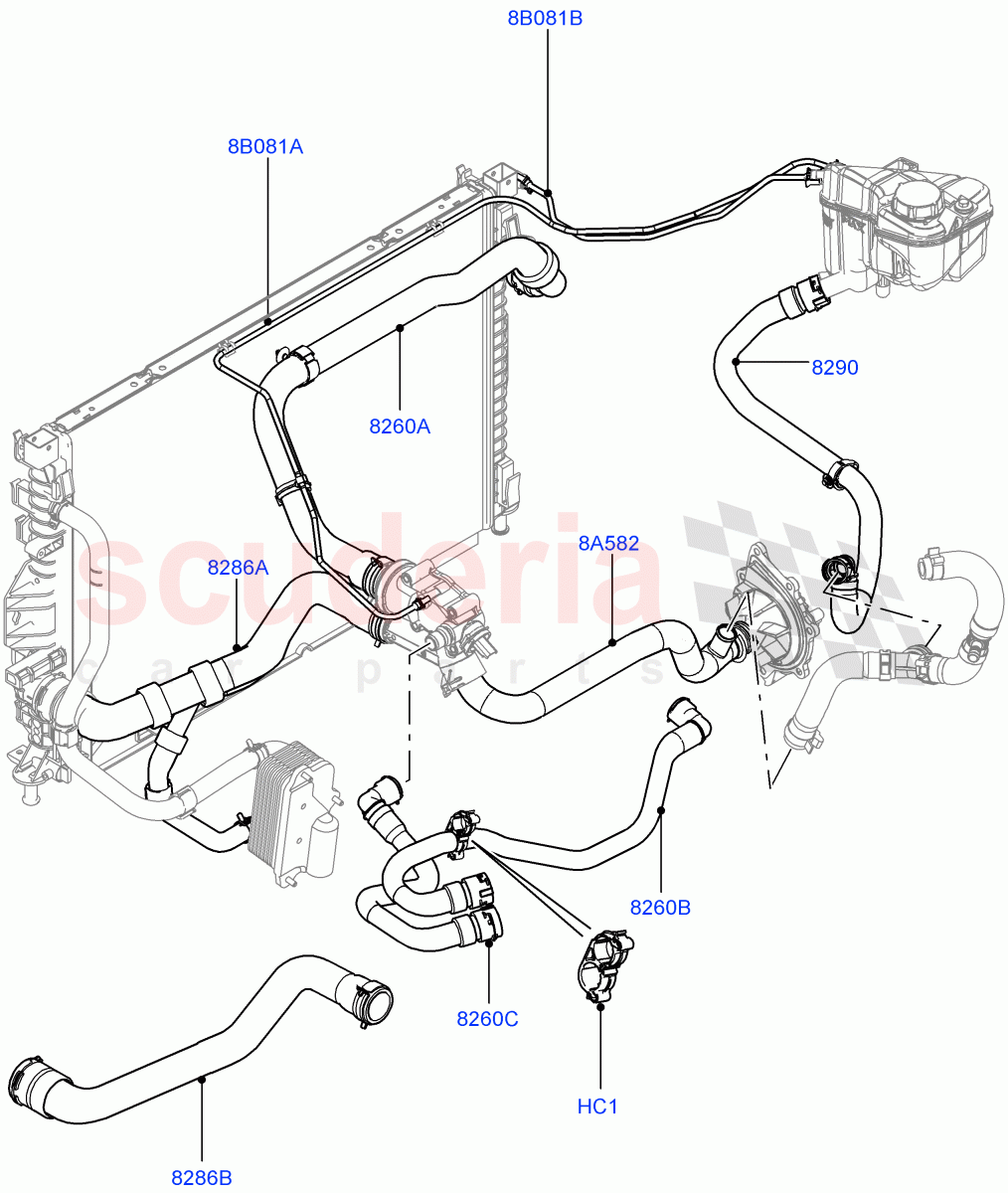

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR003010	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024243	HOSE - COOLING SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032349	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000943	HOSE - COOLING SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000941	HOSE - COOLING SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049635	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005300	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001311	HOSE - WATER BY-PASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024252	HOSE - OVERFLOW CONTAINER	Enquire	To Order
	LR060348	HOSE - OVERFLOW CONTAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024251	HOSE - DEGAS COOLING SYSTEM	Enquire	To Order
	LR060347	HOSE - DEGAS COOLING SYSTEM	Enquire	To Order
	LR060347	HOSE - DEGAS COOLING SYSTEM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR003010	CLIP	LR003010 CLIP 19/19MM, Double / From: EH000001	-	1	Enquire
8A582	LR001311	HOSE - WATER BY-PASS	LR001311 HOSE - WATER BY-PASS From Water Pump To Thermostat / From: EH000001	-	1	Enquire
8B081A	LR024252	HOSE - OVERFLOW CONTAINER	LR024252 HOSE - OVERFLOW CONTAINER Engine Degas Line / From: EH000001 / To: FH038974	-	1	Enquire
8B081A	LR060348	HOSE - OVERFLOW CONTAINER	LR060348 HOSE - OVERFLOW CONTAINER Engine Degas Line / From: FH038975	-	1	Enquire
8B081B	LR024251	HOSE - DEGAS COOLING SYSTEM	LR024251 HOSE - DEGAS COOLING SYSTEM Radiator Degas Line, Top Of Radiator To Top Of Supply Tank / From: EH000001 / To: EH999999	-	1	Enquire
8B081B	LR060347	HOSE - DEGAS COOLING SYSTEM	LR060347 HOSE - DEGAS COOLING SYSTEM Radiator Degas Line, Top Of Radiator To Top Of Supply Tank / From: FH000001 / To: FH038974	-	1	Enquire
8B081B	LR060347	HOSE - DEGAS COOLING SYSTEM	LR060347 HOSE - DEGAS COOLING SYSTEM Radiator Degas Line, Top Of Radiator To Top Of Supply Tank / From: FH038975	-	1	Enquire
8260A	LR032349	HOSE - RADIATOR	LR032349 HOSE - RADIATOR Radiator Hose, Top / From: EH000001	-	1	Enquire
8260B	LR000943	HOSE - COOLING SYSTEM	LR000943 HOSE - COOLING SYSTEM From EGR Cooler To Heater Inlet / From: EH000001	-	1	Enquire
8260C	LR000941	HOSE - COOLING SYSTEM	LR000941 HOSE - COOLING SYSTEM From Heater Outlet To Thermostat / From: EH000001	-	1	Enquire
8286A	LR049635	HOSE - RADIATOR	LR049635 HOSE - RADIATOR 9 Speed Auto AWD / Bottom, Radiator Hose / From: EH000001	-	1	Enquire
8286B	LR005300	HOSE - RADIATOR	LR005300 HOSE - RADIATOR 6 Speed Manual Trans M66 - AWD / Bottom, Radiator Hose / From: EH000001	-	1	Enquire
8290	LR024243	HOSE - COOLING SYSTEM	LR024243 HOSE - COOLING SYSTEM Expansion Tank To Pump / From: EH000001	-	1	Enquire
