Name: Exhaust System (2.0L 16V TIVCT T/C Gen2 Petrol, Changsu (China), 2.0L 16V TIVCT T/C 240PS Petrol) ((V) FROMEG000001)
Rating: 4.6 (1 reviews)

Exhaust System (2.0L 16V TIVCT T/C Gen2 Petrol, Changsu (China), 2.0L 16V TIVCT T/C 240PS Petrol) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Exhaust System (2.0L 16V TIVCT T/C Gen2 Petrol, Changsu (China), 2.0L 16V TIVCT T/C 240PS Petrol)...

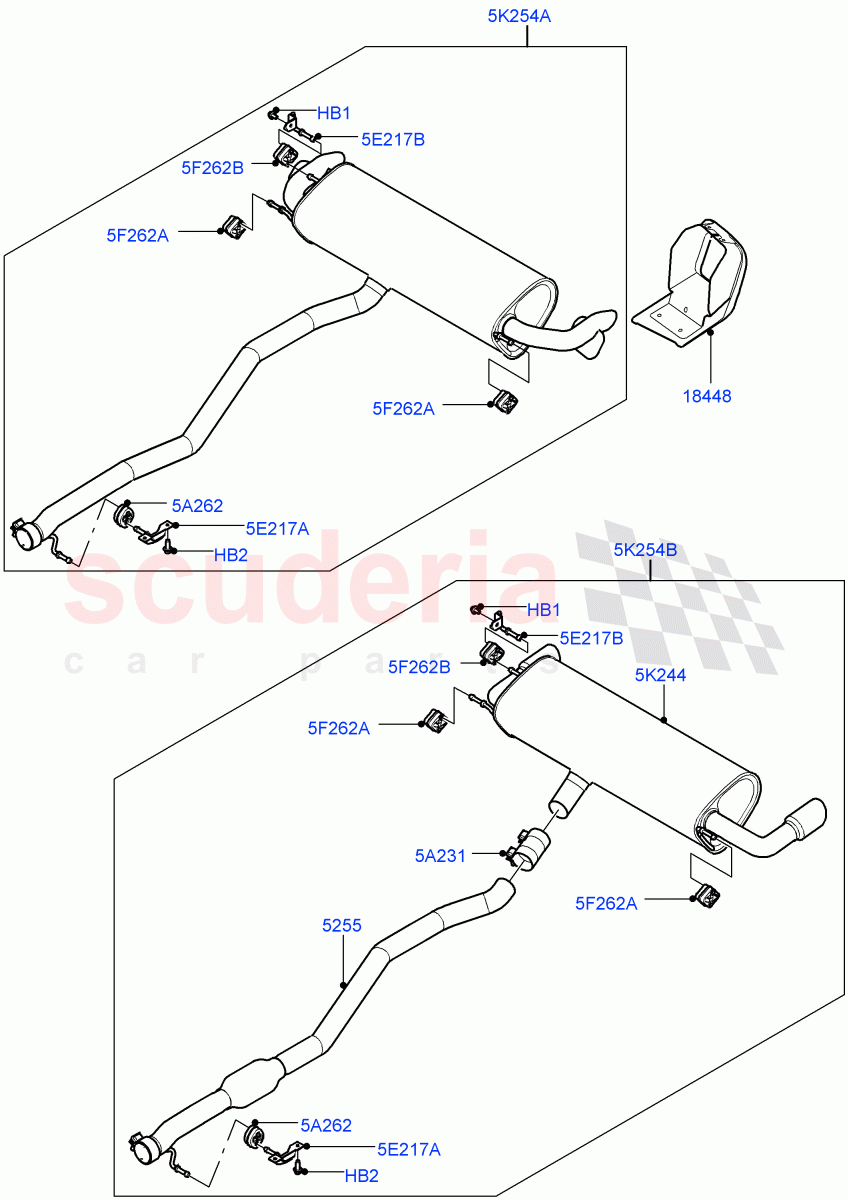

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500200	BOLT	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	$0.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052730	PIPE - EXHAUST	$704.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027871	FINISHER - EXHAUST	$315.49	To Order
	LR027872	FINISHER - EXHAUST	$315.49	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500040	CLAMP - EXHAUST	$82.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000593	INSULATOR - RUBBER	$11.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052731	MUFFLER - REAR	$739.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025109	BRACKET - EXHAUST PIPE MOUNTING	$35.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025108	BRACKET - EXHAUST PIPE MOUNTING	$33.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017444	INSULATOR - RUBBER	$25.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004549	INSULATOR - RUBBER	$11.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR056536	MUFFLER - REAR	$925.20	To Order
	LR078646	MUFFLER - REAR	$896.35	To Order
	LR088536	MUFFLER - REAR	$1,011.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049954	MUFFLER - REAR	$930.55	To Order
	LR072624	MUFFLER - REAR	$1,088.11	To Order
	LR085527	MUFFLER - REAR	$1,079.61	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG500200	BOLT	RYG500200 BOLT Hexagonal Head, M8 X 16MM / From: EG000001	$0.63	2
HB2	RYG500440	BOLT	RYG500440 BOLT Hexagonal Head, M8 X 20MM / From: EG000001	$0.99	2
5A231	WCL500040	CLAMP - EXHAUST	WCL500040 CLAMP - EXHAUST 60MM, Double / From: EG000001	$82.97	1
5A262	LR000593	INSULATOR - RUBBER	LR000593 INSULATOR - RUBBER Middle / From: EG000001	$11.29	1
5E217A	LR025109	BRACKET - EXHAUST PIPE MOUNTING	LR025109 BRACKET - EXHAUST PIPE MOUNTING Middle, Single / From: EG000001	$35.43	1
5E217B	LR025108	BRACKET - EXHAUST PIPE MOUNTING	LR025108 BRACKET - EXHAUST PIPE MOUNTING RH, Rear, Single / From: EG000001	$33.94	1
5F262A	LR017444	INSULATOR - RUBBER	LR017444 INSULATOR - RUBBER LH, RH, Rear / From: EG000001	$25.10	2
5F262B	LR004549	INSULATOR - RUBBER	LR004549 INSULATOR - RUBBER RH, Rear / From: EG000001	$11.59	1
5K244	LR052731	MUFFLER - REAR	LR052731 MUFFLER - REAR From: EG000001	$739.01	1
5K254A	LR056536	MUFFLER - REAR	LR056536 MUFFLER - REAR Dual Exh Olet W/Squa Tail Pipe Garn / Sport / From: EG000001 / To: FG109134	$925.20	1
5K254A	LR078646	MUFFLER - REAR	LR078646 MUFFLER - REAR Dual Exh Olet W/Squa Tail Pipe Garn / Sport / From: FG109135 / To: GG146040	$896.35	1
5K254A	LR088536	MUFFLER - REAR	LR088536 MUFFLER - REAR Dual Exh Olet W/Squa Tail Pipe Garn / Sport / From: GG146041	$1,011.42	1
5K254B	LR049954	MUFFLER - REAR	LR049954 MUFFLER - REAR Dual Exh Olet W/Roun Tail Pipe Garn / Standard / From: EG000001 / To: FG109134	$930.55	1
5K254B	LR072624	MUFFLER - REAR	LR072624 MUFFLER - REAR Dual Exh Olet W/Roun Tail Pipe Garn / Standard / From: FG109135 / To: GG146040	$1,088.11	1
5K254B	LR085527	MUFFLER - REAR	LR085527 MUFFLER - REAR Dual Exh Olet W/Roun Tail Pipe Garn / Standard / From: GG146041	$1,079.61	1
5255	LR052730	PIPE - EXHAUST	LR052730 PIPE - EXHAUST Front / From: EG000001	$704.94	1
18448	LR027871	FINISHER - EXHAUST	LR027871 FINISHER - EXHAUST Dual Exh Olet W/Squa Tail Pipe Garn / RH, Exhaust Exit Bumper Finisher, Sport / From: EG000001	$315.49	1
18448	LR027872	FINISHER - EXHAUST	LR027872 FINISHER - EXHAUST Dual Exh Olet W/Squa Tail Pipe Garn / LH, Exhaust Exit Bumper Finisher, Sport / From: EG000001	$315.49	1
