Exhaust System (2.0L 16V TIVCT T/C Gen2 Petrol) ((V) FROMEH000001)

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Exhaust System (2.0L 16V TIVCT T/C Gen2 Petrol) ((V) FROMEH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR005738 BOLT $2.54 To Order
Photo Part No Description Price (each) Stock
LR057202 BOLT AND WASHER - HEX.HEAD $2.32 To Order
Photo Part No Description Price (each) Stock
RYG500230 BOLT - HEX.HEAD $1.36 To Order
Photo Part No Description Price (each) Stock
LR027177 NUT $0.78 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.45 To Order
Photo Part No Description Price (each) Stock
FS110206 BOLT - HEX.HEAD $0.76 To Order
Photo Part No Description Price (each) Stock
LR000593 INSULATOR - RUBBER $11.29 To Order
Photo Part No Description Price (each) Stock
WCM500120 GASKET - EXHAUST PIPE $11.97 To Order
Photo Part No Description Price (each) Stock
LR032162 SHIELD - EXHAUST PIPE $48.06 To Order
Photo Part No Description Price (each) Stock
LR025110 GASKET - EXHAUST PIPE $16.05 To Order
Photo Part No Description Price (each) Stock
YQR000050 CLIP - WIRING $0.76 To Order
Photo Part No Description Price (each) Stock
LR043993 BRACKET - ENGINE HARNESS $14.34 To Order
Photo Part No Description Price (each) Stock
LR049867 CATALYTIC CONVERTER $1,956.96 To Order
LR067413 CATALYTIC CONVERTER $2,078.72 To Order
Photo Part No Description Price (each) Stock
LR049868 CATALYTIC CONVERTER $1,335.25 To Order
LR068417 CATALYTIC CONVERTER $1,746.08 To Order
Photo Part No Description Price (each) Stock
LR032384 HEAT SHIELD - SENSOR $42.63 To Order
Photo Part No Description Price (each) Stock
LR102723 HEAT SHIELD - SENSOR $17.98 To Order
Photo Part No Description Price (each) Stock
LR024227 BRACKET - EXHAUST PIPE MOUNTING $38.10 To Order
LR077874 BRACKET - EXHAUST PIPE MOUNTING $24.95 To Order
Photo Part No Description Price (each) Stock
LR049878 BRACKET - EXHAUST PIPE MOUNTING $57.89 To Order
Photo Part No Description Price (each) Stock
LR049882 SENSOR - EXHAUST GAS - OXYGEN $316.15 To Order
Photo Part No Description Price (each) Stock
LR049883 SENSOR - EXHAUST GAS - OXYGEN $195.44 To Order
LR101816 SENSOR - EXHAUST GAS - OXYGEN $195.44 To Order
Photo Part No Description Price (each) Stock
LR049884 SENSOR - EXHAUST GAS - OXYGEN $279.33 To Order
LR098282 SENSOR - EXHAUST GAS - OXYGEN $255.57 To Order
View All

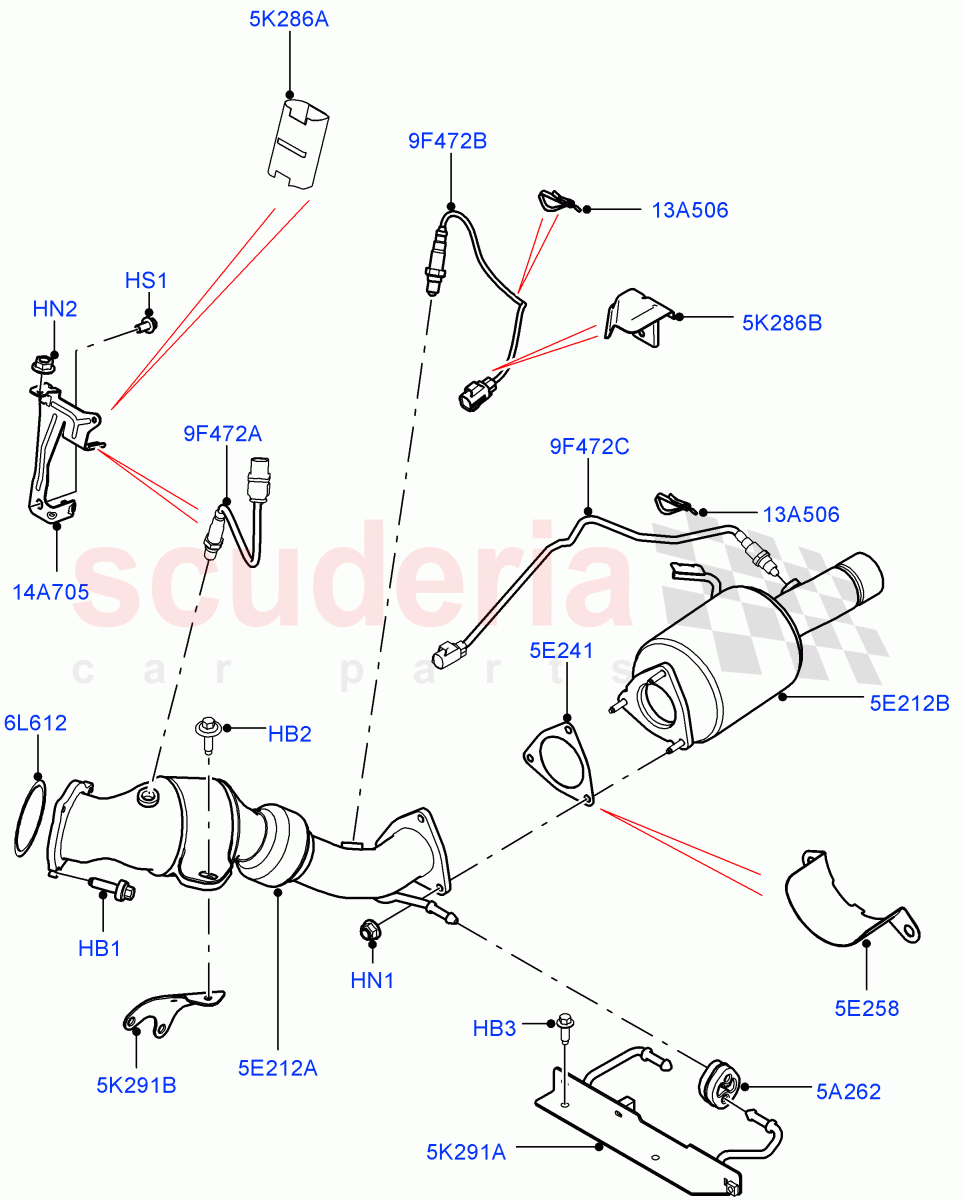

Exhaust System (2.0L 16V TIVCT T/C Gen2 Petrol) ((V) FROMEH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR005738
BOLT
M8 x 31MM / From: EH000001 		$2.54 3
HB2 LR057202
BOLT AND WASHER - HEX.HEAD
M8 x 40MM / From: EH000001 		$2.32 1
HB3 RYG500230
BOLT - HEX.HEAD
Hexagonal Head, M8 X 20MM / From: EH000001 		$1.36 2
HN1 LR027177
NUT
M8 / From: EH000001 		$0.78 1
HN2 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: EH000001 		$1.45 1
HS1 FS110206
BOLT - HEX.HEAD
Hexagonal Head, M10 X 20MM / From: EH000001 		$0.76 1
5A262 LR000593
INSULATOR - RUBBER
Front 		$11.29 2
5E212A LR049867
CATALYTIC CONVERTER
Catalyst Assy, Primary / From: EH000001 / To: FH982866 		$1,956.96 1
5E212A LR067413
CATALYTIC CONVERTER
Catalyst Assy, Primary / From: FH982867 		$2,078.72 1
5E212B LR049868
CATALYTIC CONVERTER
Catalyst Assy, Secondary / From: EH000001 / To: FH995541 		$1,335.25 1
5E212B LR068417
CATALYTIC CONVERTER
Catalyst Assy, Secondary / From: FH995542 		$1,746.08 1
5E241 WCM500120
GASKET - EXHAUST PIPE
Catalyst Assy, Rear / From: EH000001 		$11.97 1
5E258 LR032162
SHIELD - EXHAUST PIPE
Catalyst Assy, Primary / From: EH000001 		$48.06 1
5K286A LR032384
HEAT SHIELD - SENSOR
Oxygen Sensor / From: EH000001 		$42.63 1
5K286B LR102723
HEAT SHIELD - SENSOR
From: EH000001 		$17.98 1
5K291A LR024227
BRACKET - EXHAUST PIPE MOUNTING
Double, Front / From: EH000001 / To: GH123008 		$38.10 1
5K291A LR077874
BRACKET - EXHAUST PIPE MOUNTING
Double, Front / From: GH123009 		$24.95 1
5K291B LR049878
BRACKET - EXHAUST PIPE MOUNTING
Catalyst Assy, Front / From: EH000001 		$57.89 1
6L612 LR025110
GASKET - EXHAUST PIPE
Catalyst Assy, Front / From: EH000001 		$16.05 1
9F472A LR049882
SENSOR - EXHAUST GAS - OXYGEN
Exhaust Gas Oxygen, Front / From: EH000001 		$316.15 1
9F472B LR049883
SENSOR - EXHAUST GAS - OXYGEN
Exhaust Gas Oxygen, Middle / From: EH000001 / To: HH237043 		$195.44 1
9F472B LR101816
SENSOR - EXHAUST GAS - OXYGEN
Exhaust Gas Oxygen, Middle / From: HH237044 		$195.44 1
9F472C LR049884
SENSOR - EXHAUST GAS - OXYGEN
Exhaust Gas Oxygen, Rear / From: EH000001 / To: HH235085 		$279.33 1
9F472C LR098282
SENSOR - EXHAUST GAS - OXYGEN
Exhaust Gas Oxygen, Rear / From: HH235086 		$255.57 1
13A506 YQR000050
CLIP - WIRING
From: EH000001 		$0.76 3
14A705 LR043993
BRACKET - ENGINE HARNESS
Oxygen Sensor / From: EH000001 		$14.34 1
