Exhaust System (Front) (2.0L 16V TIVCT T/C 240PS Petrol, Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Exhaust System (Front) (2.0L 16V TIVCT T/C 240PS Petrol, Halewood (UK))

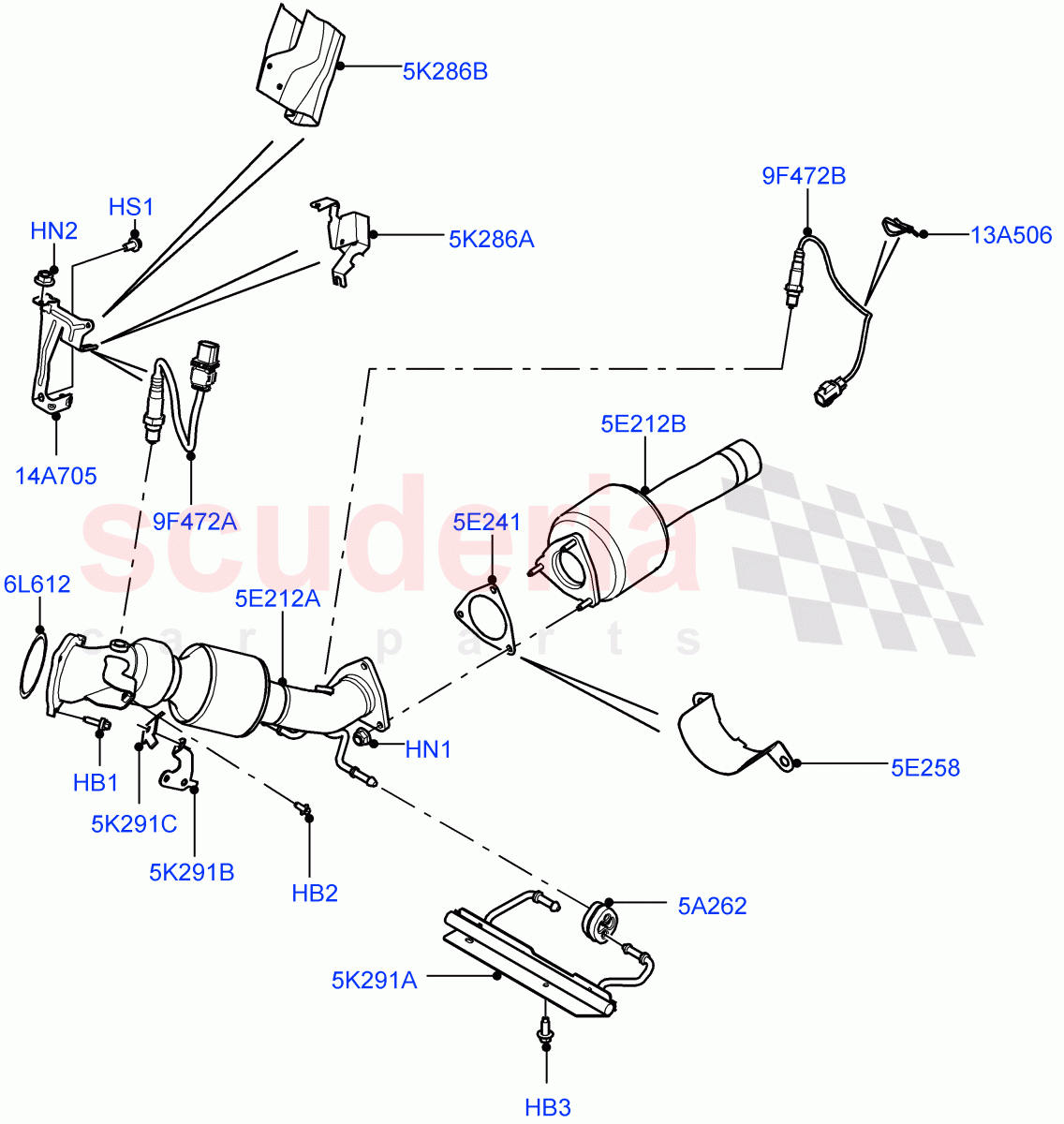

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR005738	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024183	BOLT	Enquire	To Order
	LR057202	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500230	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027177	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106042	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS110206	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000593	INSULATOR - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WCM500120	GASKET - EXHAUST PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032162	SHIELD - EXHAUST PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025110	GASKET - EXHAUST PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	YQR000050	CLIP - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028859	BRACKET - ENGINE HARNESS	Enquire	To Order
	LR043993	BRACKET - ENGINE HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024235	CATALYTIC CONVERTER - DOWNPIPE	Enquire	To Order
	LR041429	CATALYTIC CONVERTER	Enquire	To Order
	LR045424	CATALYTIC CONVERTER	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR024237	CATALYTIC CONVERTER	Enquire	To Order
	LR041430	CATALYTIC CONVERTER	Enquire	To Order
	LR068416	CATALYTIC CONVERTER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR031391	HEAT SHIELD - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032384	HEAT SHIELD - SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024227	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order
	LR077874	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024234	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order
	LR049879	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028996	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001370	SENSOR - EXHAUST GAS - OXYGEN	Enquire	To Order
	LR049882	SENSOR - EXHAUST GAS - OXYGEN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028931	SENSOR - EXHAUST GAS - OXYGEN	Enquire	To Order
	LR049883	SENSOR - EXHAUST GAS - OXYGEN	Enquire	To Order
	LR101816	SENSOR - EXHAUST GAS - OXYGEN	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR005738	BOLT	LR005738 BOLT M8 x 31MM	-	3	Enquire
HB2	LR024183	BOLT	LR024183 BOLT Hexagonal Head, M8 X 25MM / To: DH999999	-	2	Enquire
HB2	LR057202	BOLT AND WASHER - HEX.HEAD	LR057202 BOLT AND WASHER - HEX.HEAD M8 x 40MM / From: EH000001	-	2	Enquire
HB3	RYG500230	BOLT - HEX.HEAD	RYG500230 BOLT - HEX.HEAD Hexagonal Head, M8 X 20MM	-	2	Enquire
HN1	LR027177	NUT	LR027177 NUT M8	-	3	Enquire
HN2	FN106042	NUT	FN106042 NUT Hexagonal Head, M6	-	1	Enquire
HS1	FS110206	BOLT - HEX.HEAD	FS110206 BOLT - HEX.HEAD Hexagonal Head, M10 X 20MM	-	1	Enquire
5A262	LR000593	INSULATOR - RUBBER	LR000593 INSULATOR - RUBBER Front	-	2	Enquire
5E212A	LR024235	CATALYTIC CONVERTER - DOWNPIPE	LR024235 CATALYTIC CONVERTER - DOWNPIPE Catalyst Assy, Primary / To: CH679460	-	1	Enquire
5E212A	LR041429	CATALYTIC CONVERTER	LR041429 CATALYTIC CONVERTER Catalyst Assy, Primary / From: CH679461 / To: DH733067	-	1	Enquire
5E212A	LR045424	CATALYTIC CONVERTER	LR045424 CATALYTIC CONVERTER Catalyst Assy, Primary / From: DH733068 / To: DH804638	-	1	Enquire
5E212A	LR067412	CATALYTIC CONVERTER	LR067412 CATALYTIC CONVERTER Catalyst Assy, Primary / From: DH804639 / To: EH863593	-	1	Enquire
5E212A	LR055954	CATALYTIC CONVERTER	LR055954 CATALYTIC CONVERTER Catalyst Assy, Primary / From: EH863594 / To: FH982643	-	1	Enquire
5E212A	LR067412	CATALYTIC CONVERTER	LR067412 CATALYTIC CONVERTER Catalyst Assy, Primary / From: FH982644	-	1	Enquire
5E212B	LR024237	CATALYTIC CONVERTER	LR024237 CATALYTIC CONVERTER Catalyst Assy, Secondary / To: CH693462	-	1	Enquire
5E212B	LR041430	CATALYTIC CONVERTER	LR041430 CATALYTIC CONVERTER Catalyst Assy, Secondary / From: CH693463 / To: DH804638	-	1	Enquire
5E212B	LR068416	CATALYTIC CONVERTER	LR068416 CATALYTIC CONVERTER Catalyst Assy, Secondary / From: DH804639 / To: FH993464	-	1	Enquire
5E212B	LR068416	CATALYTIC CONVERTER	LR068416 CATALYTIC CONVERTER Catalyst Assy, Secondary / From: FH993465	-	1	Enquire
5E241	WCM500120	GASKET - EXHAUST PIPE	WCM500120 GASKET - EXHAUST PIPE Catalyst Assy, Rear	-	1	Enquire
5E258	LR032162	SHIELD - EXHAUST PIPE	LR032162 SHIELD - EXHAUST PIPE Catalyst Assy, Primary	-	1	Enquire
5K286A	LR031391	HEAT SHIELD - EXHAUST	LR031391 HEAT SHIELD - EXHAUST Oxygen Sensor / From: CH622941	-	1	Enquire
5K286B	LR032384	HEAT SHIELD - SENSOR	LR032384 HEAT SHIELD - SENSOR Oxygen Sensor / To: CH622940	-	1	Enquire
5K291A	LR024227	BRACKET - EXHAUST PIPE MOUNTING	LR024227 BRACKET - EXHAUST PIPE MOUNTING Double, Front / To: GH123008	-	1	Enquire
5K291A	LR077874	BRACKET - EXHAUST PIPE MOUNTING	LR077874 BRACKET - EXHAUST PIPE MOUNTING Double, Front / From: GH123009	-	1	Enquire
5K291B	LR024234	BRACKET - EXHAUST PIPE MOUNTING	LR024234 BRACKET - EXHAUST PIPE MOUNTING Catalyst Assy, Front / To: DH999999	-	1	Enquire
5K291B	LR049879	BRACKET - EXHAUST PIPE MOUNTING	LR049879 BRACKET - EXHAUST PIPE MOUNTING Catalyst Assy, Front / From: EH000001	-	1	Enquire
5K291C	LR028996	BRACKET - EXHAUST PIPE MOUNTING	LR028996 BRACKET - EXHAUST PIPE MOUNTING Catalyst Assy, Front	-	1	Enquire
6L612	LR025110	GASKET - EXHAUST PIPE	LR025110 GASKET - EXHAUST PIPE Catalyst Assy, Front	-	1	Enquire
9F472A	LR001370	SENSOR - EXHAUST GAS - OXYGEN	LR001370 SENSOR - EXHAUST GAS - OXYGEN Exhaust Gas Oxygen, Front / To: DH999999	-	1	Enquire
9F472A	LR049882	SENSOR - EXHAUST GAS - OXYGEN	LR049882 SENSOR - EXHAUST GAS - OXYGEN Exhaust Gas Oxygen, Front / From: EH000001	-	1	Enquire
9F472B	LR028931	SENSOR - EXHAUST GAS - OXYGEN	LR028931 SENSOR - EXHAUST GAS - OXYGEN Exhaust Gas Oxygen, Rear / To: DH999999	-	1	Enquire
9F472B	LR049883	SENSOR - EXHAUST GAS - OXYGEN	LR049883 SENSOR - EXHAUST GAS - OXYGEN Exhaust Gas Oxygen, Rear / From: EH000001 / To: HH237043	-	1	Enquire
9F472B	LR101816	SENSOR - EXHAUST GAS - OXYGEN	LR101816 SENSOR - EXHAUST GAS - OXYGEN Exhaust Gas Oxygen, Rear / From: HH237044	-	1	Enquire
13A506	YQR000050	CLIP - WIRING	YQR000050 CLIP - WIRING	-	1	Enquire
14A705	LR028859	BRACKET - ENGINE HARNESS	LR028859 BRACKET - ENGINE HARNESS Oxygen Sensor / To: CH999999	-	1	Enquire
14A705	LR043993	BRACKET - ENGINE HARNESS	LR043993 BRACKET - ENGINE HARNESS Oxygen Sensor / From: DH000001	-	1	Enquire
