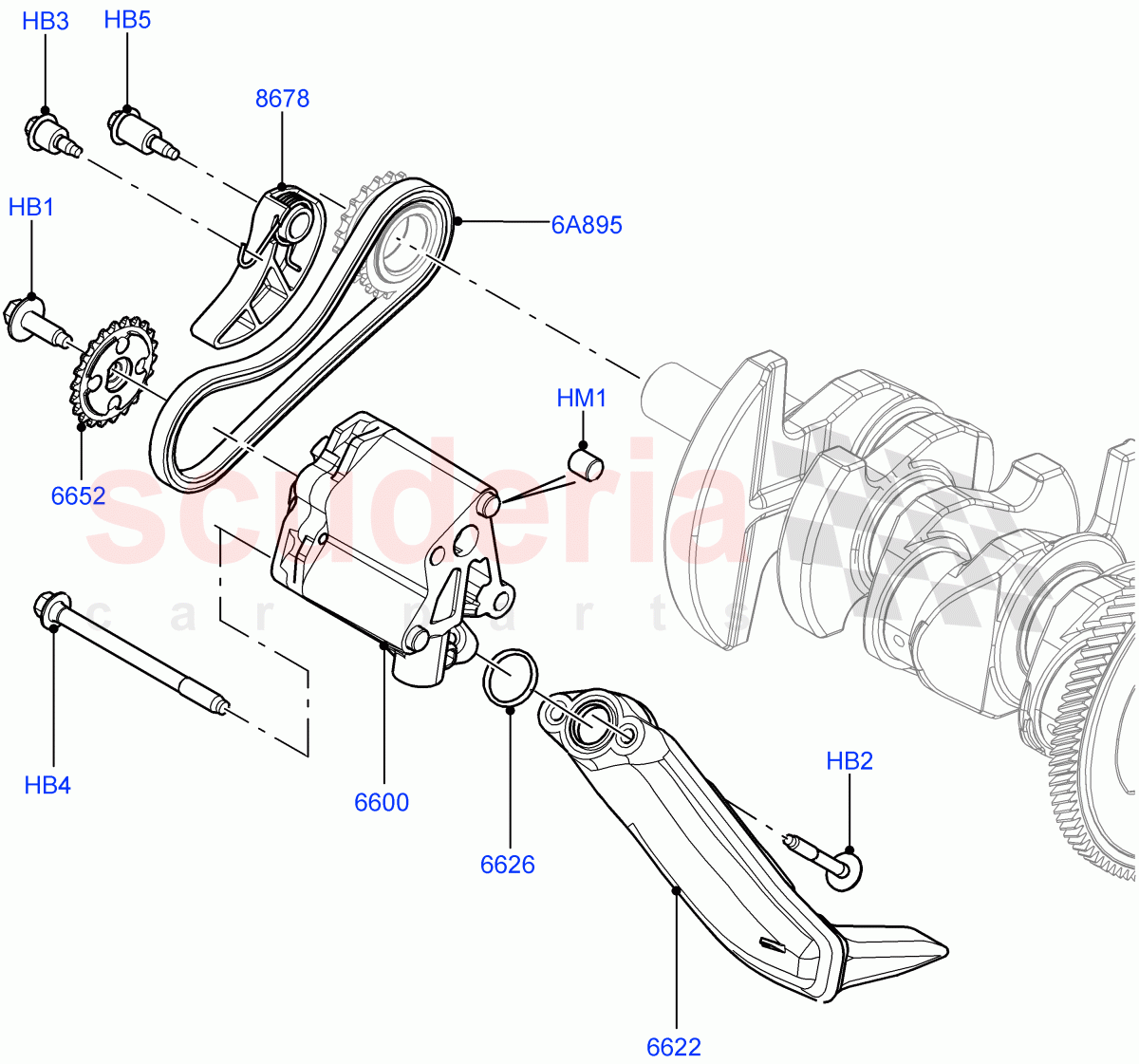

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR004505	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025476	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025481	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025486	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027153	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000392	DOWEL - PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057189	PUMP - OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049184	TUBE - OIL PUMP INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025303	GASKET - OIL PUMP INLET TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025300	SPROCKET - OIL PUMP DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025261	TENSIONER - TIMING CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025625	CHAIN - OIL PUMP DRIVE	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR004505	BOLT	LR004505 BOLT M8 X 20MM, Sprocket - Drive / From: GT000001	-	1	Enquire
HB2	LR025476	BOLT	LR025476 BOLT Inlet Tube, M6 X 45MM / From: GT000001	-	2	Enquire
HB3	LR025481	BOLT	LR025481 BOLT M6 x 17MM / From: GT000001	-	1	Enquire
HB4	LR025486	BOLT - HEX.HEAD	LR025486 BOLT - HEX.HEAD M8 X 101MM / From: GT000001	-	4	Enquire
HB5	LR027153	BOLT	LR027153 BOLT M6 x 29MM, Tensioner / From: GT000001	-	1	Enquire
HM1	LR000392	DOWEL - PIN	LR000392 DOWEL - PIN Bush 8.9 X 10.306 X 10.25 / From: GT000001	-	2	Enquire
6A895	LR025625	CHAIN - OIL PUMP DRIVE	LR025625 CHAIN - OIL PUMP DRIVE From: GT000001	-	1	Enquire
6600	LR057189	PUMP - OIL	LR057189 PUMP - OIL From: GT000001	-	1	Enquire
6622	LR049184	TUBE - OIL PUMP INLET	LR049184 TUBE - OIL PUMP INLET From: GT000001	-	1	Enquire
6626	LR025303	GASKET - OIL PUMP INLET TUBE	LR025303 GASKET - OIL PUMP INLET TUBE Seal Pump Inlet Tube / From: GT000001	-	1	Enquire
6652	LR025300	SPROCKET - OIL PUMP DRIVE	LR025300 SPROCKET - OIL PUMP DRIVE Oil Pump / From: GT000001	-	1	Enquire
8678	LR025261	TENSIONER - TIMING CHAIN	LR025261 TENSIONER - TIMING CHAIN Oil Pump Drive Chain Tensioner / From: GT000001	-	1	Enquire
