Oil Pan/Oil Level Indicator (2.0L 16V Tivct T/C Gen2 Petrol, Halewood (Uk), 2.0L 16V Tivct T/C...

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Oil Pan/Oil Level Indicator (2.0L 16V TIVCT T/C Gen2 Petrol, Halewood (UK), 2.0L 16V TIVCT T/C...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4649492 BOLT Enquire To Order
LR048529 Bolt Enquire To Order
LR054947 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
4540794 SCREW Enquire To Order
LR048528 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
4408651 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR025514 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR025543 PAN - ENGINE OIL Enquire To Order
LR061549 PAN - ENGINE OIL Enquire To Order
Photo Part No Description Price (each) Stock
LR025048 PLUG - OIL DRAIN Enquire To Order
Photo Part No Description Price (each) Stock
LR024967 INDICATOR - OIL LEVEL Enquire To Order
Photo Part No Description Price (each) Stock
LR024971 SENSOR - OIL LEVEL Enquire To Order
View All

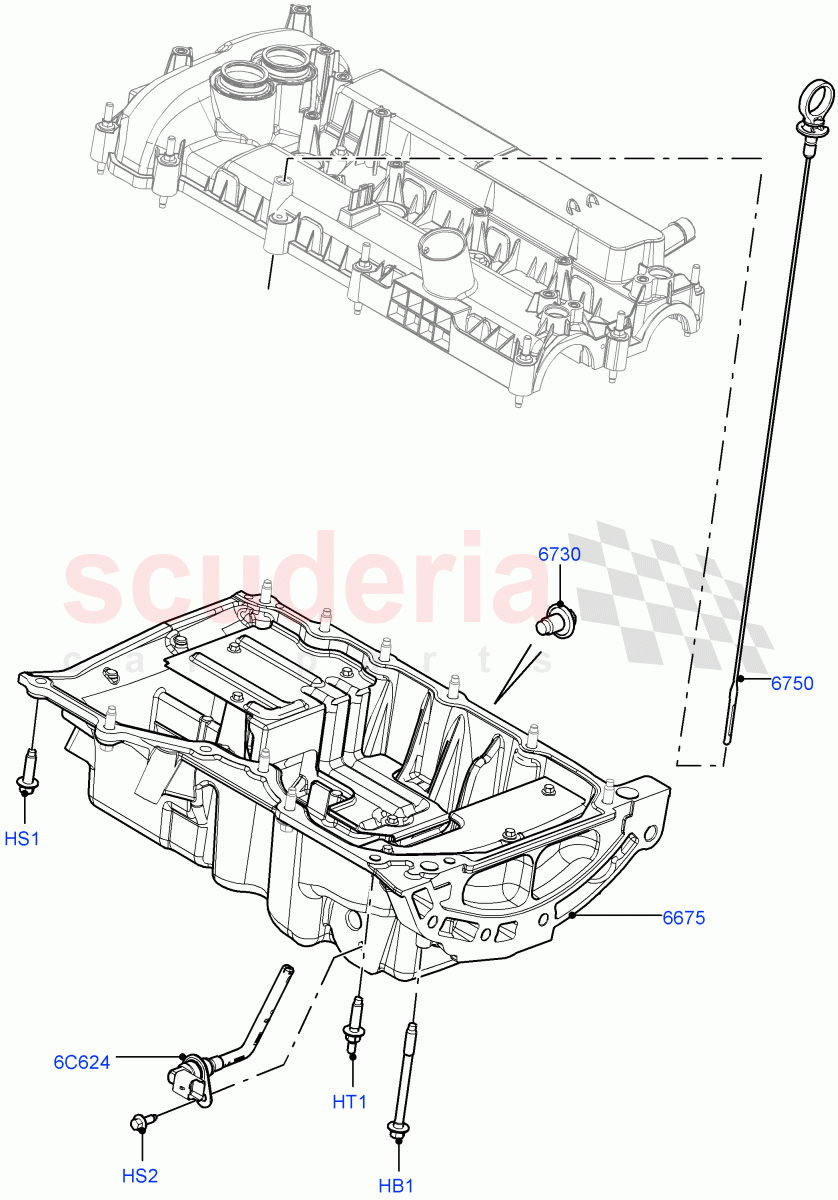

Oil Pan/Oil Level Indicator (2.0L 16V TIVCT T/C Gen2 Petrol, Halewood (UK), 2.0L 16V TIVCT T/C 240PS Petrol) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 4649492
BOLT
M8 X 90MM / To: DH771326 		- 2 Enquire
HB1 LR048529
Bolt
M8 x 95MM, With Sealer / From: DH771327 / To: DH999999 		- 2 Enquire
HB1 LR054947
BOLT - HEX.HEAD
M8 x 92,5MM, With Sealer / From: EH000001 		- 2 Enquire
HS1 4540794
SCREW
M8 X 25MM / To: DH771326 		- 10 Enquire
HS1 LR048528
SCREW
M8 x 28MM, With Sealer / From: DH771327 		- 10 Enquire
HS2 4408651
SCREW
M6 X 14MM, Sensor - Oil Level 		- 1 Enquire
HT1 LR025514
STUD
M8X25 + M6X12 		- 1 Enquire
6C624 LR024971
SENSOR - OIL LEVEL
Sensor - Oil Temperature 		- 1 Enquire
6675 LR025543
PAN - ENGINE OIL
To: EH936664 		- 1 Enquire
6675 LR061549
PAN - ENGINE OIL
From: EH936665 		- 1 Enquire
6730 LR025048
PLUG - OIL DRAIN 		- 1 Enquire
6750 LR024967
INDICATOR - OIL LEVEL 		- 1 Enquire
