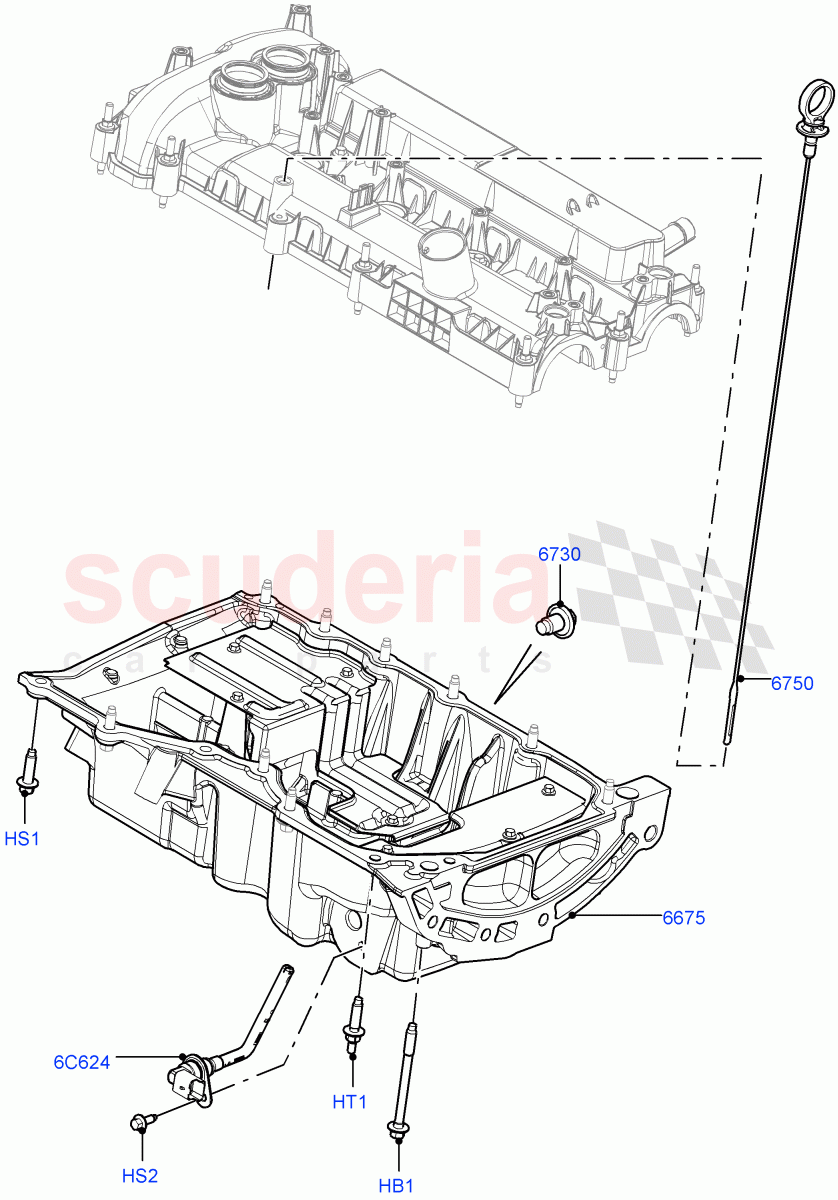

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR054947	BOLT - HEX.HEAD	$4.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048528	SCREW	$3.70	To Order

Photo	Part No	Description	Price (each)	Stock
	4408651	SCREW	$1.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025514	STUD	$5.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061549	PAN - ENGINE OIL	$298.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025048	PLUG - OIL DRAIN	$8.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024967	INDICATOR - OIL LEVEL	$24.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024971	SENSOR - OIL LEVEL	$166.40	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR054947	BOLT - HEX.HEAD	LR054947 BOLT - HEX.HEAD M8 x 92,5MM, With Sealer / From: GT000001	$4.38	2
HS1	LR048528	SCREW	LR048528 SCREW M8 x 28MM, With Sealer / From: GT000001	$3.70	10
HS2	4408651	SCREW	4408651 SCREW M6 X 14MM, Sensor - Oil Level / From: GT000001	$1.22	1
HT1	LR025514	STUD	LR025514 STUD M8X25 + M6X12 / From: GT000001	$5.98	1
6C624	LR024971	SENSOR - OIL LEVEL	LR024971 SENSOR - OIL LEVEL Sensor - Oil Temperature / From: GT000001	$166.40	1
6675	LR061549	PAN - ENGINE OIL	LR061549 PAN - ENGINE OIL From: GT000001	$298.16	1
6730	LR025048	PLUG - OIL DRAIN	LR025048 PLUG - OIL DRAIN From: GT000001	$8.28	1
6750	LR024967	INDICATOR - OIL LEVEL	LR024967 INDICATOR - OIL LEVEL From: GT000001	$24.47	1
