Name: Thermostat/Housing & Related Parts (2.0L I4 High DOHC AJ200 Petrol, Changsu (China), 2.0L I4 Mid DOHC AJ200 Petrol)
Rating: 5.0 (1 reviews)

Thermostat/Housing & Related Parts (2.0L I4 High DOHC AJ200 Petrol, Changsu (China), 2.0L I4 Mid DOHC AJ200 Petrol) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Thermostat/Housing & Related Parts (2.0L I4 High DOHC AJ200 Petrol, Changsu (China), 2.0L I4 Mid...

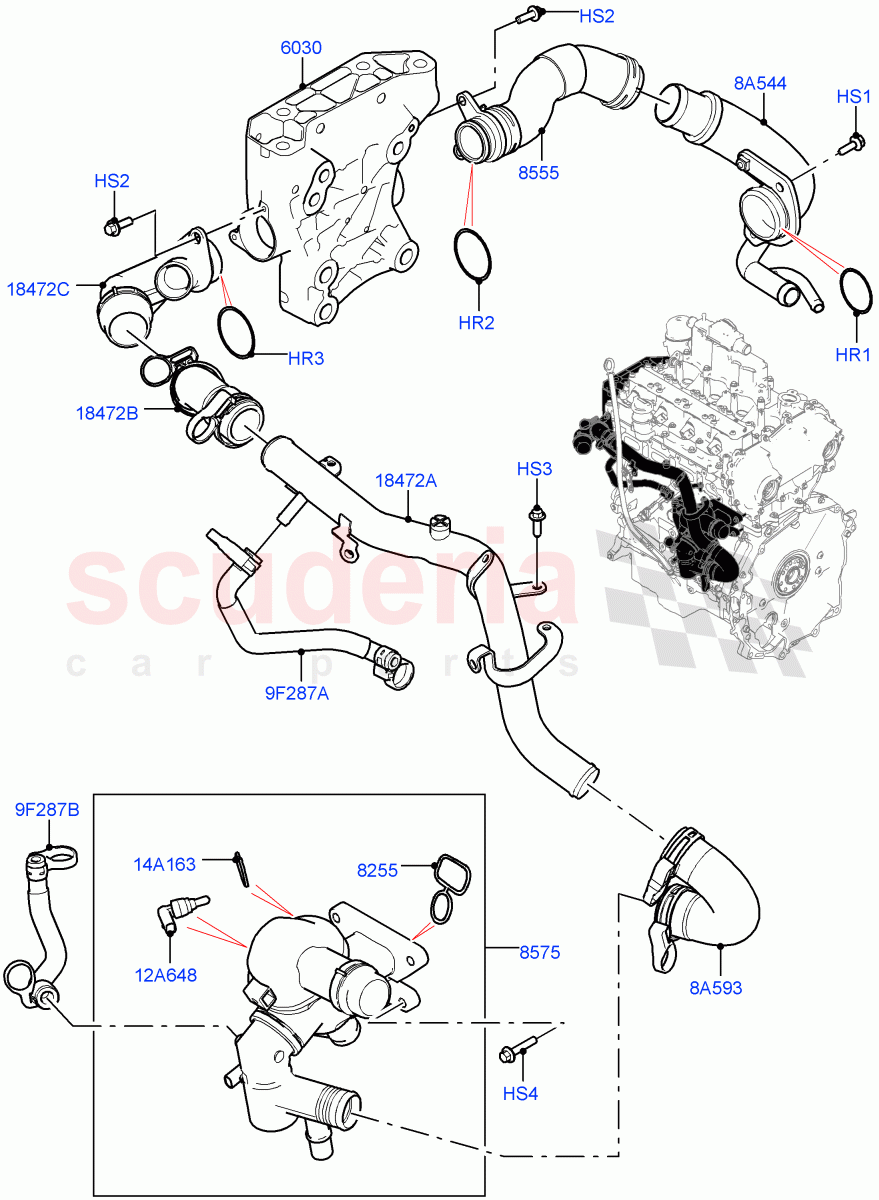

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR123823	O-RING	$2.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096840	O-RING	$12.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096841	O-RING	$5.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073689	SCREW	$2.27	To Order

Photo	Part No	Description	Price (each)	Stock
	VYP500080	BOLT AND WASHER - HEX.HEAD	$0.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073648	SCREW	$2.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR072044	SUPPORT - ENGINE MOUNTING - FRONT	$343.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105592	SEAL - THERMOSTAT	$8.28	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR083328	TUBE - BY-PASS	$45.87	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR093328	thermostat and housing	$135.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094419	TUBE - CONNECTING	$93.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092095	HOSE - WATER BY-PASS	$42.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105595	SENSOR - ENGINE COOLANT TEMPERATURE	$34.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105610	RETAINER - SENSOR CLIP	$4.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR169925	TUBE - BY-PASS	$52.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094090	HOSE - WATER BY-PASS	$67.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094089	TUBE - BY-PASS	$49.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093483	HOSE - AIR	$40.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093484	HOSE - BYPASS VALVE	$58.27	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR123823	O-RING	LR123823 O-RING Elbow Connector / From: HG161788	$2.98	1
HR2	LR096840	O-RING	LR096840 O-RING	$12.09	1
HR3	LR096841	O-RING	LR096841 O-RING	$5.67	1
HS1	LR073689	SCREW	LR073689 SCREW Hexagonal Head, M6 X 20MM / From: HG161788	$2.27	2
HS2	VYP500080	BOLT AND WASHER - HEX.HEAD IN STOCK	VYP500080 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M6 X 20MM / From: HG161788 IN STOCK	$0.69	4
HS3	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM / From: HG161788	$2.23	3
HS4	LR073648	SCREW IN STOCK	LR073648 SCREW Hexagonal Head, M6 x 30MM / From: HG161788 IN STOCK	$2.55	1
8A544	LR094419	TUBE - CONNECTING	LR094419 TUBE - CONNECTING Elbow Connector, Inlet, Water Pump / From: HG161788	$93.48	1
8A593	LR092095	HOSE - WATER BY-PASS	LR092095 HOSE - WATER BY-PASS Outlet / From: HG161788	$42.03	1
9F287A	LR093483	HOSE - AIR	LR093483 HOSE - AIR Outlet, Throttle Air By - Pass / From: HG161788	$40.68	1
9F287B	LR093484	HOSE - BYPASS VALVE	LR093484 HOSE - BYPASS VALVE Inlet, Throttle Air By - Pass / From: HG161788	$58.27	1
12A648	LR105595	SENSOR - ENGINE COOLANT TEMPERATURE	LR105595 SENSOR - ENGINE COOLANT TEMPERATURE From: HG161788	$34.73	1
14A163	LR105610	RETAINER - SENSOR CLIP	LR105610 RETAINER - SENSOR CLIP From: HG161788	$4.50	1
6030	LR072044	SUPPORT - ENGINE MOUNTING - FRONT	LR072044 SUPPORT - ENGINE MOUNTING - FRONT From: HG161788	$343.87	1
8255	LR105592	SEAL - THERMOSTAT IN STOCK	LR105592 SEAL - THERMOSTAT Thermostat And Housing Assy / From: HG161788 IN STOCK	$8.28	1
8555	LR083328	TUBE - BY-PASS IN STOCK	LR083328 TUBE - BY-PASS Tube Water By-Pass / From: HG161788 IN STOCK	$45.87	1
8575	LR093328	thermostat and housing	LR093328 thermostat and housing From: HG161788	$135.05	1
18472A	LR169925	TUBE - BY-PASS	LR169925 TUBE - BY-PASS Main / From: HG161788	$52.53	1
18472B	LR094090	HOSE - WATER BY-PASS	LR094090 HOSE - WATER BY-PASS Middle / From: HG161788	$67.86	1
18472C	LR094089	TUBE - BY-PASS	LR094089 TUBE - BY-PASS EGR Cooler / From: HG161788	$49.50	1

Thermostat/Housing & Related Parts (2.0L I4 High Dohc Aj200 Petrol, Changsu (China), 2.0L I4 Mid...

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Thermostat/Housing & Related Parts (2.0L I4 High DOHC AJ200 Petrol, Changsu (China), 2.0L I4 Mid...
