Name: Cooling System Pipes And Hoses (2.0L I4 Mid DOHC AJ200 Petrol, Active Tranmission Warming) ((V) FROMJH000001)
Rating: 4.2 (1 reviews)

Cooling System Pipes And Hoses (2.0L I4 Mid DOHC AJ200 Petrol, Active Tranmission Warming) ((V) FROMJH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Cooling System Pipes And Hoses (2.0L I4 Mid DOHC AJ200 Petrol, Active Tranmission Warming) ((V)...

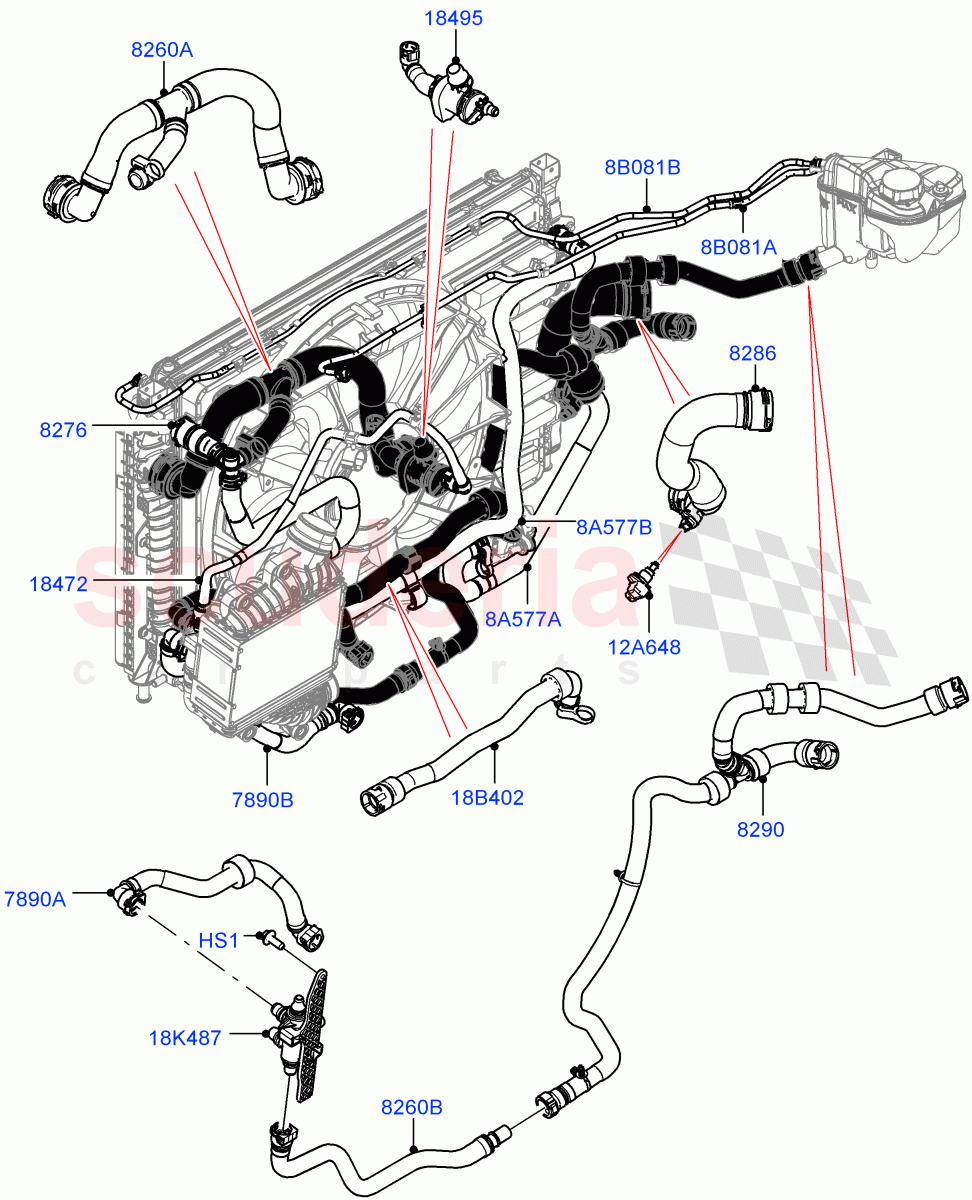

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR094134	SCREW	$4.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094126	HOSE - COOLING SYSTEM	$75.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094114	HOSE - RADIATOR	$64.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094109	HOSE - COOLING SYSTEM	$72.17	To Order
	LR133931	HOSE - COOLING SYSTEM	$76.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094094	HOSE - COOLING SYSTEM	$51.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094092	VALVE - HEATER WATER	$267.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094098	HOSE - OIL COOLER	$38.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR094101	HOSE - OIL COOLER	$31.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR094103	HOSE - RADIATOR	$71.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094129	HOSE - COOLING SYSTEM	$55.04	To Order
	LR133930	HOSE - COOLING SYSTEM	$60.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	$47.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094123	HOSE - COOLING SYSTEM	$59.29	To Order
	LR133932	HOSE - COOLING SYSTEM	$64.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094100	VALVE - COOLANT FLOW CONTROL	$107.96	To Order
	LR116640	VALVE - COOLANT FLOW CONTROL	$105.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094124	HOSE - COOLING SYSTEM	$62.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094091	HOSE - COOLING SYSTEM	$53.35	To Order
	LR134957	HOSE - COOLING SYSTEM	$58.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094130	HOSE - OVERFLOW CONTAINER	$71.36	To Order
	LR134943	HOSE - OVERFLOW CONTAINER	$74.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094125	HOSE - DEGAS COOLING SYSTEM	$55.66	To Order
	LR134940	HOSE - DEGAS COOLING SYSTEM	$58.86	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR094134	SCREW	LR094134 SCREW M6X16 / From: JH000001	$4.39	1
8A577A	LR094124	HOSE - COOLING SYSTEM	LR094124 HOSE - COOLING SYSTEM Auxiliary Water Pump Assembly, Outlet / From: JH000001	$62.82	1
8A577B	LR094091	HOSE - COOLING SYSTEM	LR094091 HOSE - COOLING SYSTEM Radiator To Transmission Warning Valve / From: JH000001 / To: KH354089	$53.35	1
8A577B	LR134957	HOSE - COOLING SYSTEM	LR134957 HOSE - COOLING SYSTEM Radiator To Transmission Warning Valve / From: KH354090	$58.86	1
8B081A	LR094130	HOSE - OVERFLOW CONTAINER	LR094130 HOSE - OVERFLOW CONTAINER From: JH000001 / To: KH354089	$71.36	1
8B081A	LR134943	HOSE - OVERFLOW CONTAINER	LR134943 HOSE - OVERFLOW CONTAINER From: KH354090	$74.94	1
8B081B	LR094125	HOSE - DEGAS COOLING SYSTEM	LR094125 HOSE - DEGAS COOLING SYSTEM Radiator To Expansion Tank Bleed / From: JH000001 / To: KH354089	$55.66	1
8B081B	LR134940	HOSE - DEGAS COOLING SYSTEM	LR134940 HOSE - DEGAS COOLING SYSTEM Radiator To Expansion Tank Bleed / From: KH354090	$58.86	1
12A648	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	LR041442 SENSOR - ENGINE COOLANT TEMPERATURE From: JH000001	$47.02	1
18B402	LR094123	HOSE - COOLING SYSTEM	LR094123 HOSE - COOLING SYSTEM Intercooler Outlet / From: JH000001 / To: KH345590	$59.29	1
18B402	LR133932	HOSE - COOLING SYSTEM	LR133932 HOSE - COOLING SYSTEM Intercooler Outlet / From: KH345591	$64.04	1
18K487	LR094100	VALVE - COOLANT FLOW CONTROL	LR094100 VALVE - COOLANT FLOW CONTROL Heater Water Control / From: JH000001 / To: JH322591	$107.96	1
18K487	LR116640	VALVE - COOLANT FLOW CONTROL	LR116640 VALVE - COOLANT FLOW CONTROL Heater Water Control / From: JH322592	$105.31	1
7890A	LR094098	HOSE - OIL COOLER IN STOCK	LR094098 HOSE - OIL COOLER Inlet / From: JH000001 IN STOCK	$38.36	1
7890B	LR094101	HOSE - OIL COOLER IN STOCK	LR094101 HOSE - OIL COOLER Outlet / From: JH000001 IN STOCK	$31.50	1
8260A	LR094103	HOSE - RADIATOR	LR094103 HOSE - RADIATOR Radiator, Upper / From: JH000001	$71.33	1
8260B	LR094129	HOSE - COOLING SYSTEM	LR094129 HOSE - COOLING SYSTEM Transmission Warning Valve To Water Pump / From: JH000001 / To: KH348202	$55.04	1
8260B	LR133930	HOSE - COOLING SYSTEM	LR133930 HOSE - COOLING SYSTEM Transmission Warning Valve To Water Pump / From: KH348203	$60.60	1
8276	LR094126	HOSE - COOLING SYSTEM	LR094126 HOSE - COOLING SYSTEM Intercooler Inlet / From: JH000001	$75.50	1
8286	LR094114	HOSE - RADIATOR	LR094114 HOSE - RADIATOR Lower, Radiator / From: JH000001	$64.71	1
8290	LR094109	HOSE - COOLING SYSTEM	LR094109 HOSE - COOLING SYSTEM Expansion Tank, Outlet / From: JH000001 / To: KH348202	$72.17	1
8290	LR133931	HOSE - COOLING SYSTEM	LR133931 HOSE - COOLING SYSTEM Expansion Tank, Outlet / From: KH348203	$76.35	1
18472	LR094094	HOSE - COOLING SYSTEM	LR094094 HOSE - COOLING SYSTEM From: JH000001	$51.78	1
18495	LR094092	VALVE - HEATER WATER	LR094092 VALVE - HEATER WATER Heater Water Control / From: JH000001	$267.66	1

Cooling System Pipes And Hoses (2.0L I4 Mid Dohc Aj200 Petrol, Active Tranmission Warming) ((V)...

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Cooling System Pipes And Hoses (2.0L I4 Mid DOHC AJ200 Petrol, Active Tranmission Warming) ((V)...
