Radiator/Coolant Overflow Container (2.0L I4 High DOHC AJ200 Petrol, Changsu (China), 2.0L I4 Mid DOHC AJ200 Petrol) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Radiator/Coolant Overflow Container (2.0L I4 High DOHC AJ200 Petrol, Changsu (China), 2.0L I4 Mid...

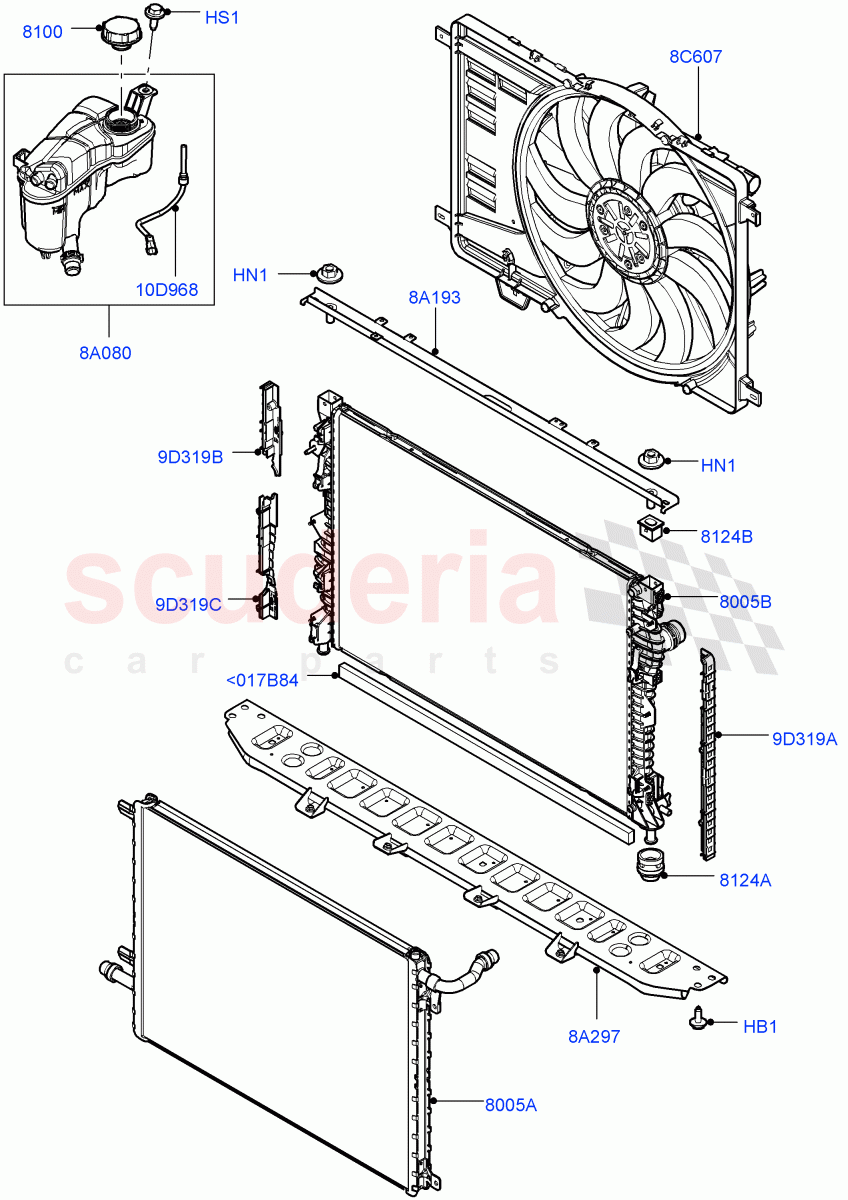

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG501000	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500310	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006025	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000243	CAP - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075357	RADIATOR - WATER CHARGE AIR COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075360	RADIATOR - MAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000242	INSULATOR - RADIATOR SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007399	INSULATOR - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060349	TANK - RADIATOR OVERFLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044300	BRACKET - RADIATOR UPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024295	SUPPORT - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR099669	MOTOR AND FAN - ENGINE COOLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000930	SENSOR - COOLANT LEVEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072018	BRACKET - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071997	BRACKET - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071999	BRACKET - RADIATOR LOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024294	PAD - FOAM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<017B84	LR024294	PAD - FOAM	LR024294 PAD - FOAM Self Adhesive / From: HG161788	-	1	Enquire
HB1	RYG501000	BOLT AND WASHER - HEX.HEAD	RYG501000 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M8 X 21MM / From: HG161788	-	6	Enquire
HN1	RYH500310	NUT AND WASHER - HEX.	RYH500310 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer / From: HG161788	-	2	Enquire
HS1	LR006025	BOLT	LR006025 BOLT Bolt And Washer, M6 X 15 Hex / From: HG161788	-	1	Enquire
8A080	LR060349	TANK - RADIATOR OVERFLOW	LR060349 TANK - RADIATOR OVERFLOW From: HG161788	-	1	Enquire
8A193	LR044300	BRACKET - RADIATOR UPPER	LR044300 BRACKET - RADIATOR UPPER Upper / From: HG161788	-	1	Enquire
8A297	LR024295	SUPPORT - RADIATOR	LR024295 SUPPORT - RADIATOR Lower / From: HG161788	-	1	Enquire
8C607	LR099669	MOTOR AND FAN - ENGINE COOLING	LR099669 MOTOR AND FAN - ENGINE COOLING 2.0L I4 Mid DOHC AJ200 Petrol, With Standard Engine Cooling System / From: HG161788	-	1	Enquire
9D319A	LR072018	BRACKET - RADIATOR	LR072018 BRACKET - RADIATOR LH / From: HG161788	-	1	Enquire
9D319B	LR071997	BRACKET - RADIATOR	LR071997 BRACKET - RADIATOR RH, Upper / From: HG161788	-	1	Enquire
9D319C	LR071999	BRACKET - RADIATOR LOWER	LR071999 BRACKET - RADIATOR LOWER RH, Lower / From: HG161788	-	1	Enquire
10D968	LR000930	SENSOR - COOLANT LEVEL	LR000930 SENSOR - COOLANT LEVEL From: HG161788	-	1	Enquire
8005A	LR075357	RADIATOR - WATER CHARGE AIR COOLER	LR075357 RADIATOR - WATER CHARGE AIR COOLER Water Charge Air Cooler / From: HG161788	-	1	Enquire
8005B	LR075360	RADIATOR - MAIN	LR075360 RADIATOR - MAIN From: HG161788	-	1	Enquire
8100	LR000243	CAP - RADIATOR	LR000243 CAP - RADIATOR From: HG161788	-	1	Enquire
8124A	LR000242	INSULATOR - RADIATOR SUPPORT	LR000242 INSULATOR - RADIATOR SUPPORT Lower / From: HG161788	-	2	Enquire
8124B	LR007399	INSULATOR - RUBBER	LR007399 INSULATOR - RUBBER Upper / From: HG161788	-	2	Enquire
