Name: Inlet Manifold (2.0L I4 High DOHC AJ200 Petrol, 2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4 Mid AJ200 Petrol E100) ((V) FROMJH000001)
Rating: 4.2 (1 reviews)

Inlet Manifold (2.0L I4 High DOHC AJ200 Petrol, 2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4 Mid AJ200 Petrol E100) ((V) FROMJH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Inlet Manifold (2.0L I4 High DOHC AJ200 Petrol, 2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4 Mid AJ200...

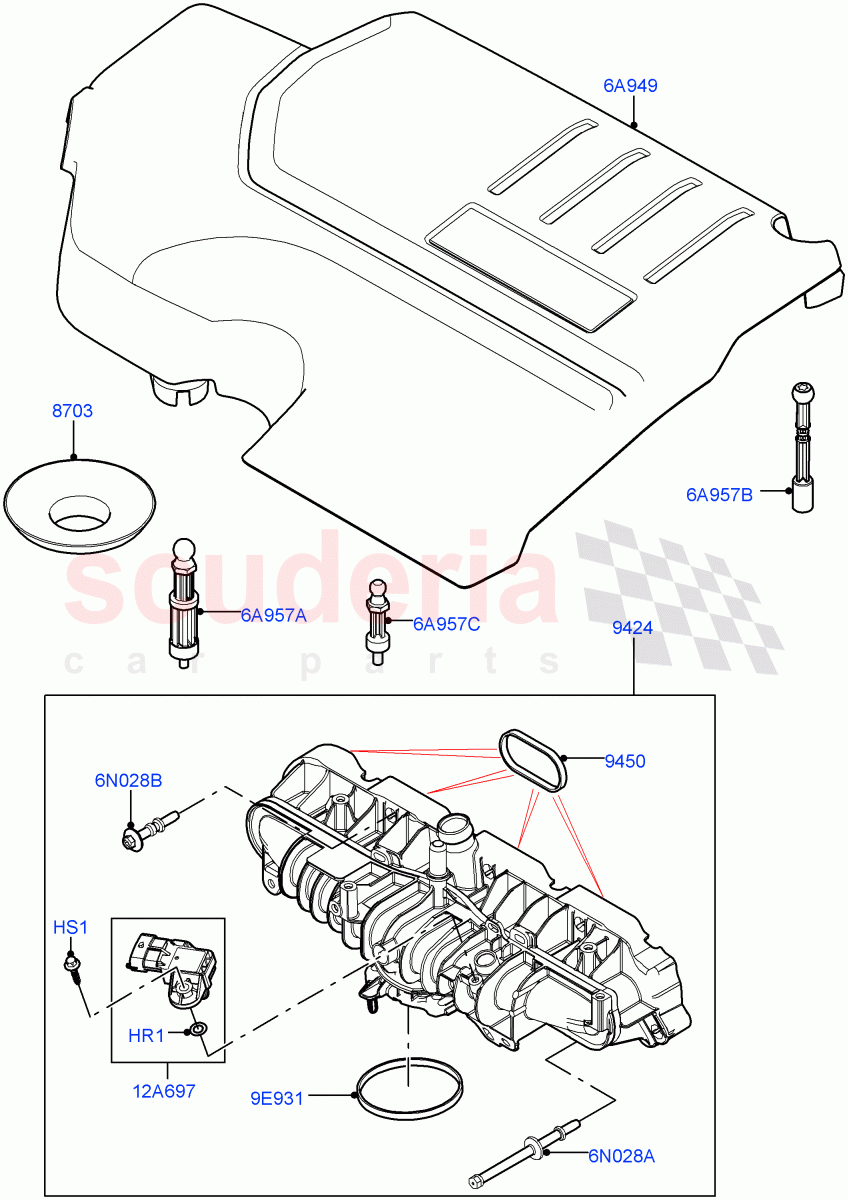

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR095783	O-RING	$4.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYP500810	SCREW	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074074	OIL SPILL GAITER	$12.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091533	INLET MANIFOLD WITH INTERCOOLER	$699.50	To Order
	LR106371	INLET MANIFOLD WITH INTERCOOLER	$729.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091766	GASKET - INTAKE MANIFOLD	$11.79	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR094077	COVER - ENGINE TOP	$276.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074073	GASKET - THROTTLE	$15.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091865	SENSOR - AIR TEMPERATURE & PRESSURE	$134.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010871	STUD - BALL	$6.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022884	STUD - BALL	$6.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025916	STUD - ENGINE COVER	$6.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091773	BOLT - SPECIAL	$6.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074085	BOLT - SPECIAL	$4.84	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR095783	O-RING IN STOCK	LR095783 O-RING 7.5MM, MAP Sensor / From: JH000001 IN STOCK	$4.47	1
HS1	RYP500810	SCREW	RYP500810 SCREW Hexagonal Head, M5 x 20MM, Sensor / From: JH000001	$0.59	1
6A949	LR094077	COVER - ENGINE TOP	LR094077 COVER - ENGINE TOP Engine / From: JH000001	$276.52	1
6A957A	LR010871	STUD - BALL	LR010871 STUD - BALL Ball Stud, Engine Cover / From: JH000001	$6.79	1
6A957B	LR022884	STUD - BALL	LR022884 STUD - BALL Engine Cover / From: JH000001	$6.44	1
6A957C	LR025916	STUD - ENGINE COVER	LR025916 STUD - ENGINE COVER Engine Cover / From: JH000001	$6.69	1
6N028A	LR091773	BOLT - SPECIAL	LR091773 BOLT - SPECIAL M6 x 97MM, Manifold To Cylinder Head, Special Bolt / From: JH000001	$6.65	1
6N028B	LR074085	BOLT - SPECIAL	LR074085 BOLT - SPECIAL M6 x 42MM, Manifold To Cylinder Head / From: JH000001	$4.84	6
9E931	LR074073	GASKET - THROTTLE	LR074073 GASKET - THROTTLE Throttle Body To Intake / From: JH000001	$15.25	1
12A697	LR091865	SENSOR - AIR TEMPERATURE & PRESSURE	LR091865 SENSOR - AIR TEMPERATURE & PRESSURE Pressure / From: JH000001	$134.03	1
8703	LR074074	OIL SPILL GAITER	LR074074 OIL SPILL GAITER Oil Spill / From: JH000001	$12.79	1
9424	LR091533	INLET MANIFOLD WITH INTERCOOLER	LR091533 INLET MANIFOLD WITH INTERCOOLER From: JH000001 / To: JH271918	$699.50	1
9424	LR106371	INLET MANIFOLD WITH INTERCOOLER	LR106371 INLET MANIFOLD WITH INTERCOOLER From: JH271919	$729.24	1
9450	LR091766	GASKET - INTAKE MANIFOLD IN STOCK	LR091766 GASKET - INTAKE MANIFOLD Inlet Manifold / From: JH000001 IN STOCK	$11.79	4
