Cylinder Block And Plugs (2.0L I4 Mid Aj200 Petrol E100, Itatiaia (Brazil), 2.0L I4 Mid Dohc Aj200...

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Cylinder Block And Plugs (2.0L I4 Mid AJ200 Petrol E100, Itatiaia (Brazil), 2.0L I4 Mid DOHC AJ200...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR073785 BOLT $1.86 To Order
Photo Part No Description Price (each) Stock
LR099962 CLIP $1.86 To Order
Photo Part No Description Price (each) Stock
LR073637 DOWEL - PIN $2.36 To Order
Photo Part No Description Price (each) Stock
LR073636 PLUG - BLANKING $4.24 To Order
Photo Part No Description Price (each) Stock
LR095786 O-RING $4.47 IN STOCK
Photo Part No Description Price (each) Stock
LR106648 O-RING $5.83 To Order
Photo Part No Description Price (each) Stock
LR073649 SCREW $2.40 To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.54 IN STOCK
LR073655 SCREW $1.54 IN STOCK
Photo Part No Description Price (each) Stock
LR073720 SCREW $1.53 To Order
Photo Part No Description Price (each) Stock
LR073666 SCREW $1.36 To Order
Photo Part No Description Price (each) Stock
LR108531 COVER - CYLINDER FRONT $123.63 To Order
Photo Part No Description Price (each) Stock
LR073684 VALVE - PISTON OIL COOLNG $188.42 IN STOCK
Photo Part No Description Price (each) Stock
LR109352 NOZZLE - PISTON COOLING $32.16 To Order
Photo Part No Description Price (each) Stock
LR093852 SEAL - CRANKSHAFT OIL - FRONT $24.97 To Order
Photo Part No Description Price (each) Stock
LR074067 SENSOR - ENGINE TEMPERATURE $41.83 To Order
Photo Part No Description Price (each) Stock
LR107548 CLIP - CABLE $5.29 To Order
Photo Part No Description Price (each) Stock
LR073665 CONNECTOR - VACUUM TUBE $12.16 To Order
Photo Part No Description Price (each) Stock
LR057802 DOWEL - PIN $3.36 IN STOCK
Photo Part No Description Price (each) Stock
LR092083 INSULATOR PAD - CYLINDER BLOCK $72.31 To Order
Photo Part No Description Price (each) Stock
LR113872 INSULATOR - ENGINE COMPARTMENT $42.74 To Order
Photo Part No Description Price (each) Stock
LR094425 INSULATOR - FOAM PAD $48.83 To Order
Photo Part No Description Price (each) Stock
LR155116 SENSOR - ENGINE KNOCK $110.58 To Order
Photo Part No Description Price (each) Stock
LR155117 SENSOR - ENGINE KNOCK $136.16 To Order
View All

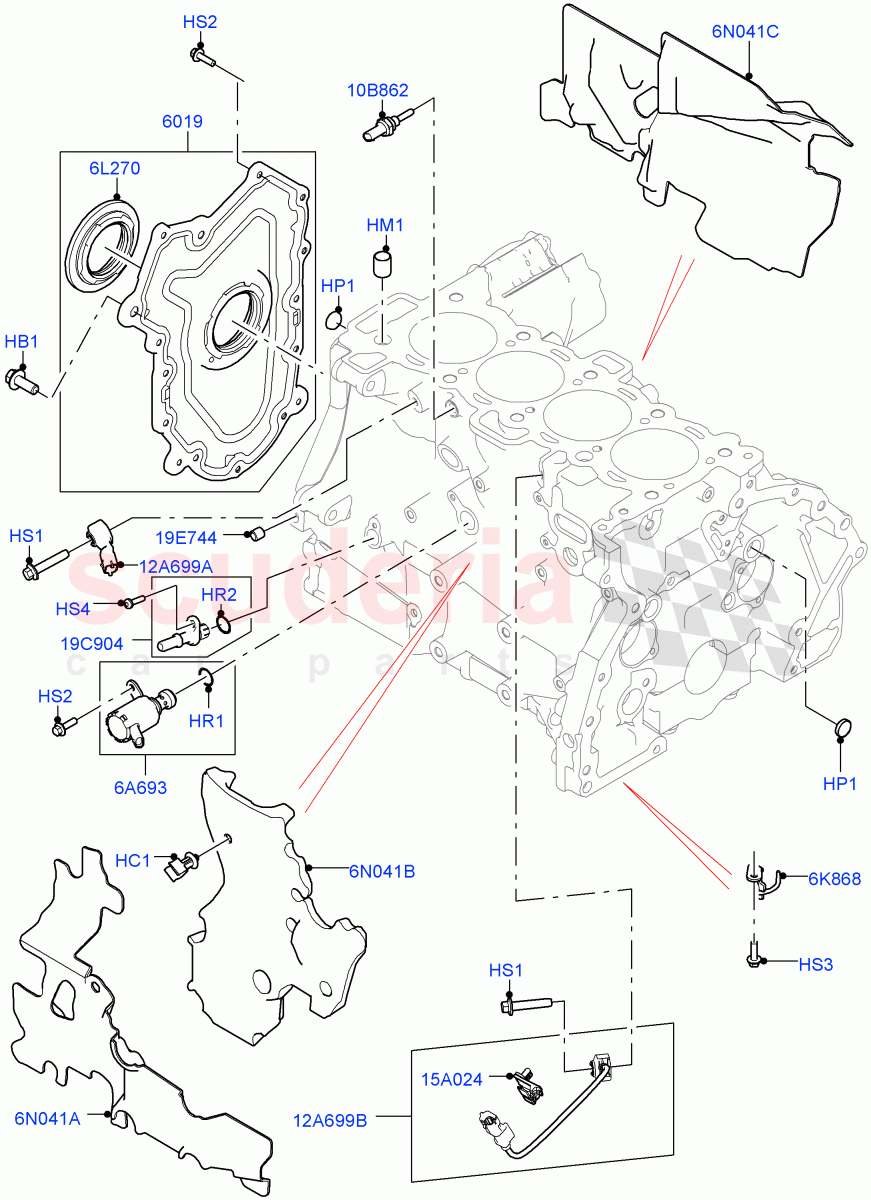

Cylinder Block And Plugs (2.0L I4 Mid AJ200 Petrol E100, Itatiaia (Brazil), 2.0L I4 Mid DOHC AJ200 Petrol) ((V) FROMJT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR073785
BOLT
Hexagonal Head, M10 X 25MM / From: JT000001 		$1.86 1
HC1 LR099962
CLIP
From: JT000001 		$1.86 1
HM1 LR073637
DOWEL - PIN
16.5 x 20, Pin - Dowell / From: JT000001 		$2.36 2
HP1 LR073636
PLUG - BLANKING
18MM, Blanking / From: JT000001 		$4.24 4
HR1 LR095786
O-RING
15.3MM, Valve - piston oil cooling / From: JT000001
IN STOCK 		$4.47 1
HR2 LR106648
O-RING
Connector, Vacuum / From: JT000001 		$5.83 1
HS1 LR073649
SCREW
Anti-Knock Sensor, M8 x 40MM / From: JT000001 		$2.40 2
HS2 LR073655
SCREW
Cover, Hexagonal Head, M6 X 20MM / From: JT000001
IN STOCK 		$1.54 12
HS2 LR073655
SCREW
Hexagonal Head, M6 X 20MM, Valve - piston oil cooling / From: JT000001
IN STOCK 		$1.54 1
HS3 LR073720
SCREW
M6 X 20MM, Oil Lubrication Jet / From: JT000001 		$1.53 4
HS4 LR073666
SCREW
M5 x 20MM, Vacuum Connector / From: JT000001 		$1.36 1
6A693 LR073684
VALVE - PISTON OIL COOLNG
From: JT000001
IN STOCK 		$188.42 1
6K868 LR109352
NOZZLE - PISTON COOLING
From: JT000001 		$32.16 4
6L270 LR093852
SEAL - CRANKSHAFT OIL - FRONT
From: JT000001 		$24.97 1
6N041A LR092083
INSULATOR PAD - CYLINDER BLOCK
Front, Lower / From: JT000001 		$72.31 1
6N041B LR113872
INSULATOR - ENGINE COMPARTMENT
Front, Upper / From: JT000001 		$42.74 1
6N041C LR094425
INSULATOR - FOAM PAD
Rear / From: JT000001 		$48.83 1
10B862 LR074067
SENSOR - ENGINE TEMPERATURE
From: JT000001 		$41.83 1
12A699A LR155116
SENSOR - ENGINE KNOCK
RH / From: JT000001 		$110.58 1
12A699B LR155117
SENSOR - ENGINE KNOCK
LH / From: JT000001 		$136.16 1
15A024 LR107548
CLIP - CABLE
Clip / From: JT000001 		$5.29 1
19C904 LR073665
CONNECTOR - VACUUM TUBE
From: JT000001 		$12.16 1
19E744 LR057802
DOWEL - PIN
Air Conditioning Compressor Bracket,
IN STOCK 		$3.36 1
6019 LR108531
COVER - CYLINDER FRONT
Engine Front, Includes Seal / From: JT000001 		$123.63 1
