Cylinder Block And Plugs (2.0L I4 High DOHC AJ200 Petrol, 2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4 Mid AJ200 Petrol E100) ((V) FROMJH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Cylinder Block And Plugs (2.0L I4 High DOHC AJ200 Petrol, 2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4...

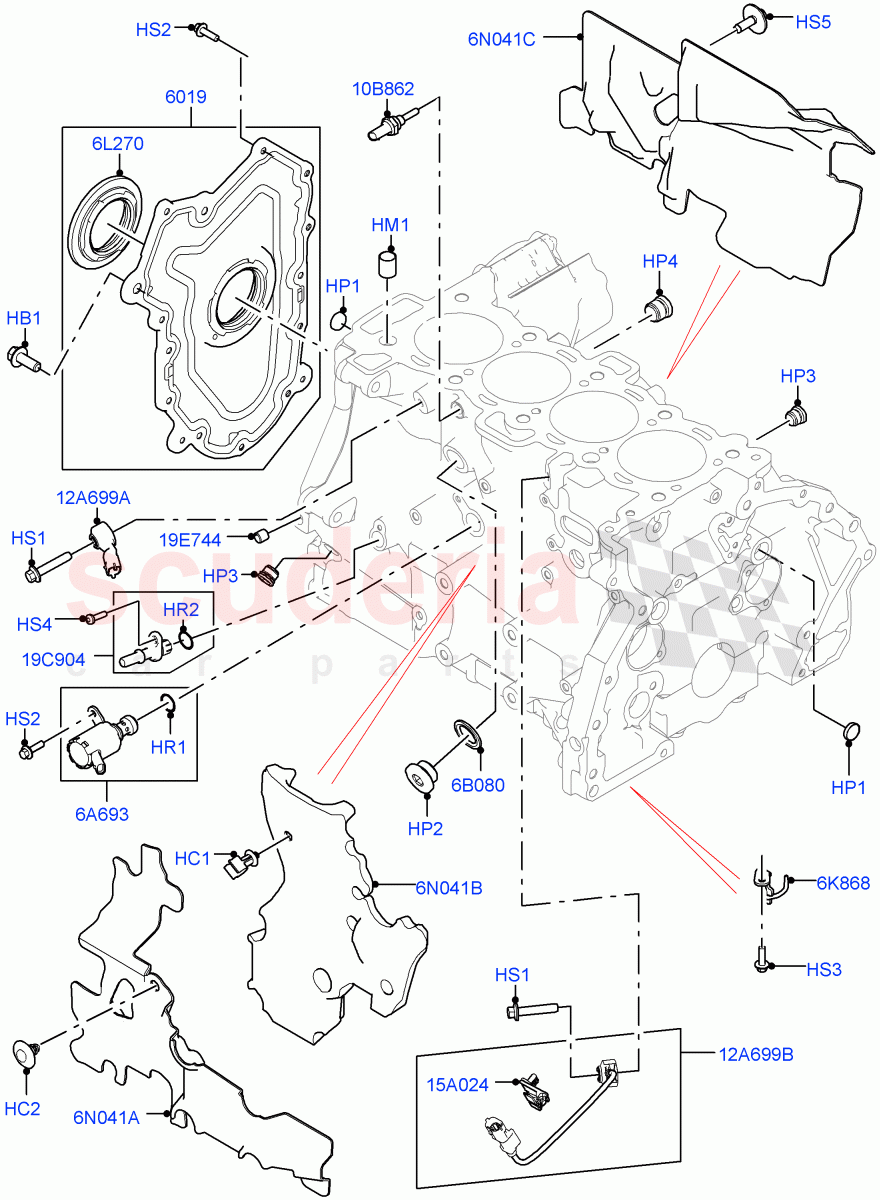

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073785	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR099962	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125667	CLIP - TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073637	DOWEL - PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073636	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163193	PLUG - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163194	PLUG - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163195	PLUG - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095786	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106648	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073649	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	Enquire	To Order
	LR073655	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073720	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073666	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132379	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR108531	COVER - CYLINDER FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073684	VALVE - PISTON OIL COOLNG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR107013	KIT - "O" RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091578	NOZZLE - PISTON COOLING	Enquire	To Order
	LR109352	NOZZLE - PISTON COOLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093852	SEAL - CRANKSHAFT OIL - FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074067	SENSOR - ENGINE TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR107548	CLIP - CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073665	CONNECTOR - VACUUM TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057802	DOWEL - PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092083	INSULATOR PAD - CYLINDER BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094442	INSULATOR - ENGINE COMPARTMENT	Enquire	To Order
	LR113872	INSULATOR - ENGINE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094425	INSULATOR - FOAM PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155116	SENSOR - ENGINE KNOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092101	SENSOR - ENGINE KNOCK	Enquire	To Order
	LR155117	SENSOR - ENGINE KNOCK	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR073785	BOLT	LR073785 BOLT Hexagonal Head, M10 X 25MM / From: JH000001	-	1	Enquire
HC1	LR099962	CLIP	LR099962 CLIP From: JH000001	-	1	Enquire
HC2	LR125667	CLIP - TRIM	LR125667 CLIP - TRIM 5.8 X 4.5-8, Insulator / From: JH000001	-	1	Enquire
HM1	LR073637	DOWEL - PIN	LR073637 DOWEL - PIN 16.5 x 20, Pin - Dowell / From: JH000001	-	2	Enquire
HP1	LR073636	PLUG - BLANKING	LR073636 PLUG - BLANKING 18MM, Blanking / From: JH000001	-	4	Enquire
HP2	LR163193	PLUG - ENGINE	LR163193 PLUG - ENGINE M22 X 1.5MM / From: JH000001	-	1	Enquire
HP3	LR163194	PLUG - ENGINE	LR163194 PLUG - ENGINE M14 x 9 mm / From: JH000001	-	2	Enquire
HP4	LR163195	PLUG - ENGINE	LR163195 PLUG - ENGINE M18 x 1.5 / From: JH000001	-	1	Enquire
HR1	LR095786	O-RING	LR095786 O-RING 15.3MM, Valve - piston oil cooling / From: JH000001	-	1	Enquire
HR2	LR106648	O-RING	LR106648 O-RING Connector, Vacuum / From: JH000001	-	1	Enquire
HS1	LR073649	SCREW	LR073649 SCREW Anti-Knock Sensor, M8 x 40MM / From: JH000001	-	2	Enquire
HS2	LR073655	SCREW	LR073655 SCREW Cover, Hexagonal Head, M6 X 20MM / From: JH000001	-	12	Enquire
HS2	LR073655	SCREW	LR073655 SCREW Hexagonal Head, M6 X 20MM, Valve - piston oil cooling / From: JH000001	-	1	Enquire
HS3	LR073720	SCREW	LR073720 SCREW M6 X 20MM, Oil Lubrication Jet / From: JH000001	-	4	Enquire
HS4	LR073666	SCREW	LR073666 SCREW M5 x 20MM, Vacuum Connector / From: JH000001	-	1	Enquire
HS5	LR132379	SCREW	LR132379 SCREW M6 X 20MM / From: JH000001	-	1	Enquire
6A693	LR073684	VALVE - PISTON OIL COOLNG	LR073684 VALVE - PISTON OIL COOLNG From: JH000001	-	1	Enquire
6B080	LR107013	KIT - "O" RING	LR107013 KIT - "O" RING From: JH000001	-	1	Enquire
6K868	LR091578	NOZZLE - PISTON COOLING	LR091578 NOZZLE - PISTON COOLING From: JH000001 / To: JH284126	-	4	Enquire
6K868	LR109352	NOZZLE - PISTON COOLING	LR109352 NOZZLE - PISTON COOLING From: JH284127	-	4	Enquire
6L270	LR093852	SEAL - CRANKSHAFT OIL - FRONT	LR093852 SEAL - CRANKSHAFT OIL - FRONT From: JH000001	-	1	Enquire
6N041A	LR092083	INSULATOR PAD - CYLINDER BLOCK	LR092083 INSULATOR PAD - CYLINDER BLOCK Front, Lower / From: JH000001	-	1	Enquire
6N041B	LR094442	INSULATOR - ENGINE COMPARTMENT	LR094442 INSULATOR - ENGINE COMPARTMENT Front, Upper / From: JH000001 / To: JH291805	-	1	Enquire
6N041B	LR113872	INSULATOR - ENGINE COMPARTMENT	LR113872 INSULATOR - ENGINE COMPARTMENT Front, Upper / From: JH291806	-	1	Enquire
6N041C	LR094425	INSULATOR - FOAM PAD	LR094425 INSULATOR - FOAM PAD Rear / From: JH000001	-	1	Enquire
10B862	LR074067	SENSOR - ENGINE TEMPERATURE	LR074067 SENSOR - ENGINE TEMPERATURE From: JH000001	-	1	Enquire
12A699A	LR155116	SENSOR - ENGINE KNOCK	LR155116 SENSOR - ENGINE KNOCK RH / From: JH000001	-	1	Enquire
12A699B	LR092101	SENSOR - ENGINE KNOCK	LR092101 SENSOR - ENGINE KNOCK LH / From: JH000001 / To: JH287057	-	1	Enquire
12A699B	LR155117	SENSOR - ENGINE KNOCK	LR155117 SENSOR - ENGINE KNOCK LH / From: JH287058	-	1	Enquire
15A024	LR107548	CLIP - CABLE	LR107548 CLIP - CABLE Clip / From: JH000001	-	1	Enquire
19C904	LR073665	CONNECTOR - VACUUM TUBE	LR073665 CONNECTOR - VACUUM TUBE From: JH000001	-	1	Enquire
19E744	LR057802	DOWEL - PIN	LR057802 DOWEL - PIN Air Conditioning Compressor Bracket,	-	1	Enquire
6019	LR108531	COVER - CYLINDER FRONT	LR108531 COVER - CYLINDER FRONT Engine Front, Includes Seal / From: JH000001	-	1	Enquire
