Front Door Trim Installation (2 Door Convertible, Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

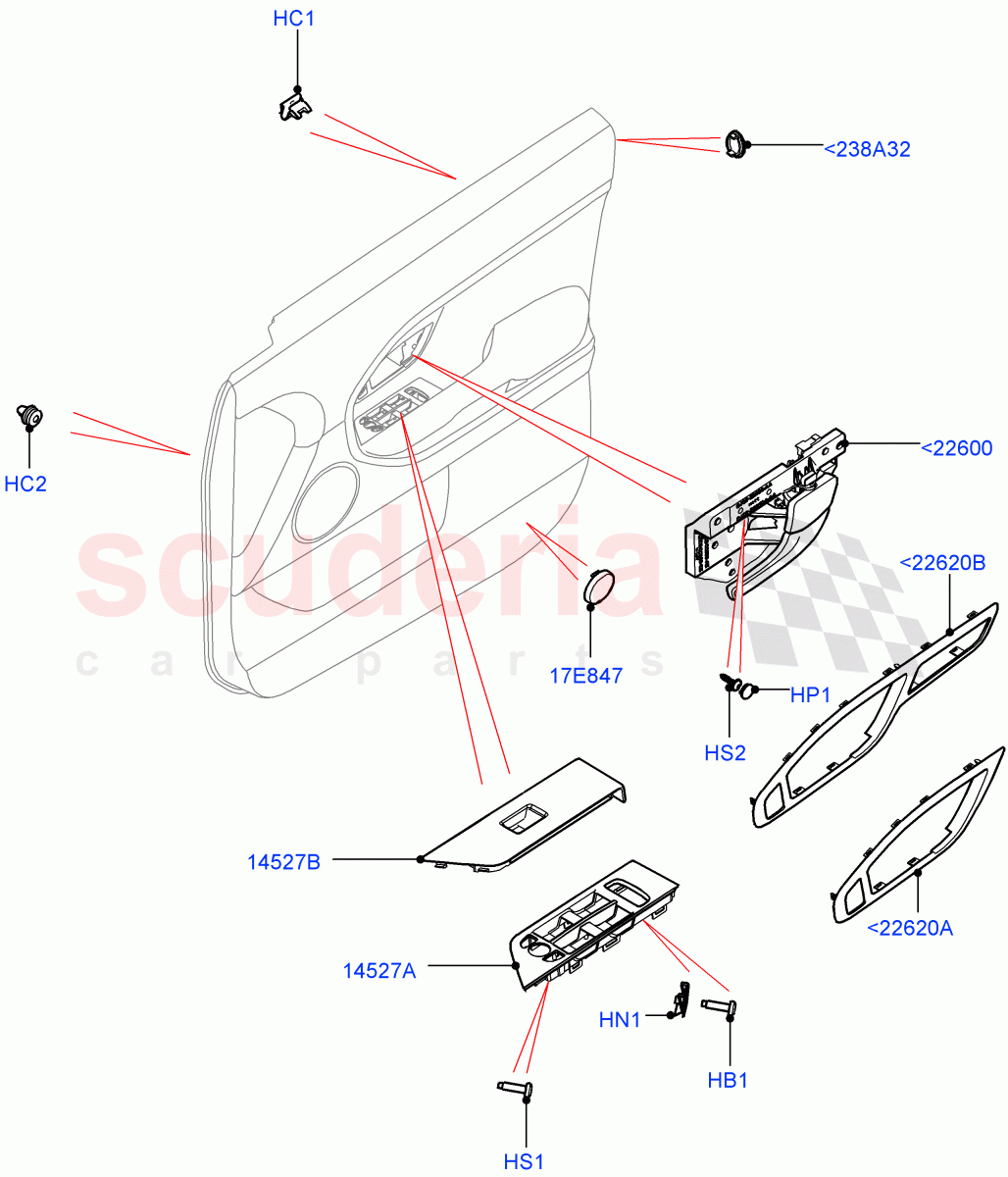

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Front Door Trim Installation (2 Door Convertible, Halewood (UK))

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR033002	BOLT AND WASHER - TORX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001790	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013135	CLIP - TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031438	NUT - SQUARE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028847	PLUG - DOOR TRIM PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002884	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079183	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071191	HANDLE - DOOR - INNER	Enquire	To Order
	LR071192	HANDLE - DOOR - INNER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028051	HOUSING - SWITCH	Enquire	To Order
	LR028062	HOUSING - SWITCH	Enquire	To Order
	LR028056	HOUSING - SWITCH	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR028054	HOUSING - SWITCH	Enquire	To Order
	LR028059	HOUSING - SWITCH	Enquire	To Order
	LR028065	HOUSING - SWITCH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR085515	REFLECTOR - DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028032	ESCUTCHEON - DOOR INSIDE HANDLE	Enquire	To Order
	LR028033	ESCUTCHEON - DOOR INSIDE HANDLE	Enquire	To Order
	LR028034	ESCUTCHEON - DOOR INSIDE HANDLE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR028040	ESCUTCHEON - HANDLE	Enquire	To Order
	LR028041	ESCUTCHEON - HANDLE	Enquire	To Order
	LR028042	ESCUTCHEON - HANDLE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR078307	COVER - DOOR TRIM	Enquire	To Order
	LR078308	COVER - DOOR TRIM	Enquire	To Order
	LR078309	COVER - DOOR TRIM	Enquire	To Order

...and 2 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<238A32	LR078307	COVER - DOOR TRIM	LR078307 COVER - DOOR TRIM I/P Facia Contrast - Lunar / Door Trim Panel	-	2	Enquire
<238A32	LR078308	COVER - DOOR TRIM	LR078308 COVER - DOOR TRIM I/P Facia Contrast - Cirrus/Lunar / Door Trim Panel	-	2	Enquire
<238A32	LR078309	COVER - DOOR TRIM	LR078309 COVER - DOOR TRIM I/P Facia Contrast - Lunar/Ivory / Door Trim Panel	-	2	Enquire
<238A32	LR078310	COVER - DOOR TRIM	LR078310 COVER - DOOR TRIM I/P Facia Contrast - Ebony Black / Door Trim Panel	-	2	Enquire
<238A32	LR078311	COVER - DOOR TRIM	LR078311 COVER - DOOR TRIM I/P Facia Contrast-Espresso/Almond / Door Trim Panel	-	2	Enquire
<22600	LR071191	HANDLE - DOOR - INNER	LR071191 HANDLE - DOOR - INNER RH	-	1	Enquire
<22600	LR071192	HANDLE - DOOR - INNER	LR071192 HANDLE - DOOR - INNER LH	-	1	Enquire
<22620A	LR028032	ESCUTCHEON - DOOR INSIDE HANDLE	LR028032 ESCUTCHEON - DOOR INSIDE HANDLE Electric Front Seat Adj Non-Memory, Meteor Appliques / RH, Also Serviced In Assy	-	1	Enquire
<22620A	LR028033	ESCUTCHEON - DOOR INSIDE HANDLE	LR028033 ESCUTCHEON - DOOR INSIDE HANDLE Manual Front Seat Adj Driver & Pass, Piano Black Appliques / RH, Also Serviced In Assy	-	1	Enquire
<22620A	LR028034	ESCUTCHEON - DOOR INSIDE HANDLE	LR028034 ESCUTCHEON - DOOR INSIDE HANDLE Manual Front Seat Adj Driver & Pass, Meteor Appliques / LH, Also Serviced In Assy	-	1	Enquire
<22620A	LR028035	ESCUTCHEON - DOOR INSIDE HANDLE	LR028035 ESCUTCHEON - DOOR INSIDE HANDLE Manual Front Seat Adj Driver & Pass, Piano Black Appliques / LH, Also Serviced In Assy	-	1	Enquire
<22620B	LR028040	ESCUTCHEON - HANDLE	LR028040 ESCUTCHEON - HANDLE Driver/Pass Elec Fr Seat Adj/Memory, Meteor Appliques / RH, Also Serviced In Assy	-	1	Enquire
<22620B	LR028041	ESCUTCHEON - HANDLE	LR028041 ESCUTCHEON - HANDLE Driver/Pass Elec Fr Seat Adj/Memory, Piano Black Appliques / RH, Also Serviced In Assy	-	1	Enquire
<22620B	LR028042	ESCUTCHEON - HANDLE	LR028042 ESCUTCHEON - HANDLE Driver/Pass Elec Fr Seat Adj/Memory, Meteor Appliques / LH, Also Serviced In Assy	-	1	Enquire
<22620B	LR028044	ESCUTCHEON - HANDLE	LR028044 ESCUTCHEON - HANDLE Driver/Pass Elec Fr Seat Adj/Memory, Piano Black Appliques / LH, Also Serviced In Assy	-	1	Enquire
HB1	LR033002	BOLT AND WASHER - TORX HEAD	LR033002 BOLT AND WASHER - TORX HEAD M6 X 20.5, Torx	-	4	Enquire
HC1	LR001790	CLIP	LR001790 CLIP Door Trim Panel	-	10	Enquire
HC2	LR013135	CLIP - TRIM	LR013135 CLIP - TRIM 8.5 X 0.8 - 2.2	-	22	Enquire
HN1	LR031438	NUT - SQUARE	LR031438 NUT - SQUARE M6	-	4	Enquire
HP1	LR028847	PLUG - DOOR TRIM PANEL	LR028847 PLUG - DOOR TRIM PANEL Located In Door Handle	-	2	Enquire
HS1	LR002884	SCREW	LR002884 SCREW M4 x 10MM	-	1	Enquire
HS2	LR079183	SCREW	LR079183 SCREW 4.2 x 22MM, Handle And Housing Assy	-	2	Enquire
17E847	LR085515	REFLECTOR - DOOR	LR085515 REFLECTOR - DOOR RH/LH	-	2	Enquire
14527A	LR028051	HOUSING - SWITCH	LR028051 HOUSING - SWITCH Meteor Appliques, Power/Heated/Memory Fold Back Mir, RHD / RH, Also Serviced In Assy / To: HH999999	-	1	Enquire
14527A	LR028062	HOUSING - SWITCH	LR028062 HOUSING - SWITCH LHD, Meteor Appliques, Power/Heated/Memory Fold Back Mir / LH, Also Serviced In Assy / To: HH999999	-	1	Enquire
14527A	LR028056	HOUSING - SWITCH	LR028056 HOUSING - SWITCH Piano Black Appliques, Power/Heated/Memory Fold Back Mir, RHD / RH, Also Serviced In Assy / To: HH999999	-	1	Enquire
14527A	LR028067	HOUSING - SWITCH	LR028067 HOUSING - SWITCH LHD, Piano Black Appliques, Power/Heated/Memory Fold Back Mir / LH, Also Serviced In Assy / To: HH999999	-	1	Enquire
14527A	LR028051	HOUSING - SWITCH	LR028051 HOUSING - SWITCH Dual Power/Heated/Fold/App Mirrors, Meteor Appliques, RHD / RH, Also Serviced In Assy / From: JH000001	-	1	Enquire
14527A	LR028056	HOUSING - SWITCH	LR028056 HOUSING - SWITCH Dual Pwr/Htd/Mem/Fld/E'Chr/Pud Lamp, Piano Black Appliques, RHD / RH, Also Serviced In Assy / From: JH000001	-	1	Enquire
14527A	LR028062	HOUSING - SWITCH	LR028062 HOUSING - SWITCH Dual Pwr/Htd/Mem/Fld/E'Chr/Pud Lamp, LHD, Meteor Appliques / LH, Also Serviced In Assy / From: JH000001	-	1	Enquire
14527A	LR028067	HOUSING - SWITCH	LR028067 HOUSING - SWITCH Dual Pwr/Htd/Mem/Fld/E'Chr/Pud Lamp, LHD, Piano Black Appliques / LH, Also Serviced In Assy / From: JH000001	-	1	Enquire
14527B	LR028054	HOUSING - SWITCH	LR028054 HOUSING - SWITCH LHD, Meteor Appliques / RH, Also Serviced In Assy	-	1	Enquire
14527B	LR028059	HOUSING - SWITCH	LR028059 HOUSING - SWITCH LHD, Piano Black Appliques / RH, Also Serviced In Assy	-	1	Enquire
14527B	LR028065	HOUSING - SWITCH	LR028065 HOUSING - SWITCH Meteor Appliques, RHD / LH, Also Serviced In Assy	-	1	Enquire
14527B	LR028071	HOUSING - SWITCH	LR028071 HOUSING - SWITCH Piano Black Appliques, RHD / LH, Also Serviced In Assy	-	1	Enquire
