Name: Instrument Panel (Upper, External) (Itatiaia (Brazil), Less Head Up Display) ((V) FROMGT000001)
Rating: 4.8 (1 reviews)

Instrument Panel (Upper, External) (Itatiaia (Brazil), Less Head Up Display) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Instrument Panel (Upper, External) (Itatiaia (Brazil), Less Head Up Display) ((V) FROMGT000001)

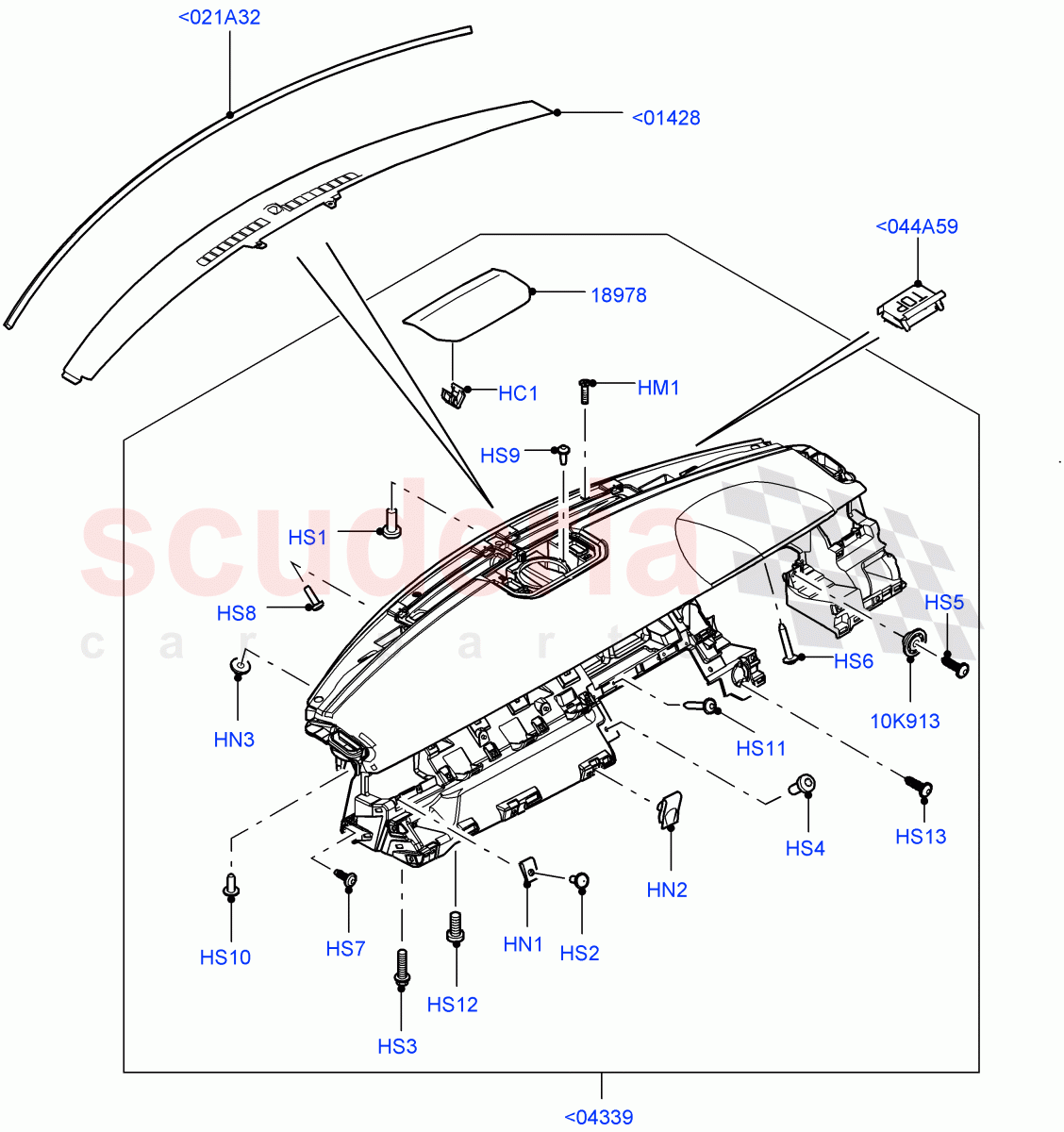

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR044894	CLIP	$1.39	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	QYP500050	SCREW	$0.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006214	NUT	$0.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	$1.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYH500420	NUT AND WASHER - HEX.	$0.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR027849	SCREW	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	PYP500140	SCREW	$0.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FYP500730	SCREW - PAN HEAD - SELF-TAPPING	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006211	SCREW	$0.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR007312	SCREW 4.2 X 19	$0.76	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR006452	SCREW	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028425	SCREW	$1.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR028417	SCREW	$1.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002884	SCREW	$0.22	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500020	SCREW	$0.50	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500770	SCREW	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000095	SCREW AND WASHER	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001090	SCREW	$3.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073701	GRILLE - SPEAKER	$31.20	To Order
	LR073698	GRILLE - SPEAKER	$27.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072043	GRILLE - HEATER OUTLET	$134.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071308	PANEL - INSTRUMENT - UPPER	$3,313.17	To Order
	LR071310	PANEL - INSTRUMENT - UPPER	$3,118.63	To Order
	LR071314	PANEL - INSTRUMENT - UPPER	$2,615.68	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR007641	INSERT	$7.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057561	SEAL - WINDSCREEN	$44.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028912	RETAINER - INSTRUMENT PANEL	$3.36	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<021A32	LR057561	SEAL - WINDSCREEN	LR057561 SEAL - WINDSCREEN From: GT000001	$44.28	1
<044A59	LR028912	RETAINER - INSTRUMENT PANEL	LR028912 RETAINER - INSTRUMENT PANEL Mounting Bracket / From: GT000001	$3.36	2
<01428	LR072043	GRILLE - HEATER OUTLET	LR072043 GRILLE - HEATER OUTLET Premium Leather Facia / From: GT000001	$134.89	1
<04339	LR071308	PANEL - INSTRUMENT - UPPER	LR071308 PANEL - INSTRUMENT - UPPER I/P Facia Contrast-Espresso/Ivory, Premium Leather Facia / From: GT000001	$3,313.17	1
<04339	LR071310	PANEL - INSTRUMENT - UPPER	LR071310 PANEL - INSTRUMENT - UPPER I/P Facia Contrast - Ebony Black, Premium Leather Facia / From: GT000001	$3,118.63	1
<04339	LR071314	PANEL - INSTRUMENT - UPPER	LR071314 PANEL - INSTRUMENT - UPPER I/P Facia Contrast-Espresso/Almond, With PVC Facia / From: GT000001	$2,615.68	1
<04339	LR071316	PANEL - INSTRUMENT - UPPER	LR071316 PANEL - INSTRUMENT - UPPER I/P Facia Contrast - Ebony Black, With PVC Facia / From: GT000001	$2,615.68	1
HC1	LR044894	CLIP IN STOCK	LR044894 CLIP 0.8 - 2.5, Speaker - Centre / From: GT000001 IN STOCK	$1.39	4
HM1	QYP500050	SCREW	QYP500050 SCREW 4 x 14MM, Screw Type / From: GT000001	$0.43	1
HN1	LR006214	NUT IN STOCK	LR006214 NUT 4.2 X 2.25 - 3 / From: GT000001 IN STOCK	$0.45	1
HN2	LR000053	NUT - FLANGED IN STOCK	LR000053 NUT - FLANGED M6 / From: GT000001 IN STOCK	$1.57	1
HN3	RYH500420	NUT AND WASHER - HEX. IN STOCK	RYH500420 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer / From: GT000001 IN STOCK	$0.43	1
HS1	LR027849	SCREW	LR027849 SCREW M6 X 16MM / From: GT000001	$1.36	1
HS2	PYP500140	SCREW IN STOCK	PYP500140 SCREW 4.2 x 13MM, Torx / From: GT000001 IN STOCK	$0.74	1
HS3	FYP500730	SCREW - PAN HEAD - SELF-TAPPING	FYP500730 SCREW - PAN HEAD - SELF-TAPPING 6MM, Self Tapping, Torx / From: GT000001	$2.92	1
HS4	LR006211	SCREW IN STOCK	LR006211 SCREW 4.2 x 16MM, Torx / From: GT000001 IN STOCK	$0.50	1
HS5	LR007312	SCREW 4.2 X 19 IN STOCK	LR007312 SCREW 4.2 X 19 4.2 X 19MM / From: GT000001 IN STOCK	$0.76	1
HS6	LR006452	SCREW	LR006452 SCREW 4.2 x 25MM / From: GT000001	$0.45	1
HS7	LR028425	SCREW IN STOCK	LR028425 SCREW M6 X 1.4 X 17 / From: GT000001 IN STOCK	$1.05	1
HS8	LR028417	SCREW	LR028417 SCREW M6 X 20MM / From: GT000001	$1.35	1
HS9	LR002884	SCREW	LR002884 SCREW M4 x 10MM / From: GT000001	$0.22	1
HS10	RYP500020	SCREW	RYP500020 SCREW M5 X 12MM / From: GT000001	$0.50	1
HS11	RYP500770	SCREW	RYP500770 SCREW 5 X 16MM, Torx / From: GT000001	$0.59	1
HS12	LR000095	SCREW AND WASHER	LR000095 SCREW AND WASHER M6 X 16 HEX / From: GT000001	$0.58	1
HS13	LR001090	SCREW	LR001090 SCREW 3.5 x 16MM, Torx / From: GT000001	$3.98	1
10K913	LR007641	INSERT	LR007641 INSERT From: GT000001	$7.85	2
18978	LR073701	GRILLE - SPEAKER	LR073701 GRILLE - SPEAKER I/P Facia Contrast - Ebony Black / From: GT000001	$31.20	1
18978	LR073698	GRILLE - SPEAKER	LR073698 GRILLE - SPEAKER I/P Facia Contrast-Espresso/Almond / From: GT000001	$27.96	1
