Front Door Trim Installation (5 Door, Halewood (Uk))

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Front Door Trim Installation (5 Door, Halewood (UK))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR033002 BOLT AND WASHER - TORX HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR001790 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR013135 CLIP - TRIM Enquire To Order
Photo Part No Description Price (each) Stock
LR000077 NUT - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR031438 NUT - SQUARE Enquire To Order
Photo Part No Description Price (each) Stock
LR028847 PLUG - DOOR TRIM PANEL Enquire To Order
Photo Part No Description Price (each) Stock
LR003493 SCREW Enquire To Order
LR079183 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR002884 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR066957 SCREW AND WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR030563 HANDLE - DOOR - INNER Enquire To Order
LR030564 HANDLE - DOOR - INNER Enquire To Order
LR065130 HANDLE - DOOR - INNER Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR028050 HOUSING - SWITCH Enquire To Order
LR028051 HOUSING - SWITCH Enquire To Order
LR028055 HOUSING - SWITCH Enquire To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR028054 HOUSING - SWITCH Enquire To Order
LR028059 HOUSING - SWITCH Enquire To Order
LR028065 HOUSING - SWITCH Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR029277 MAT - DOOR POCKET Enquire To Order
LR029274 MAT - DOOR POCKET Enquire To Order
Photo Part No Description Price (each) Stock
LR028034 ESCUTCHEON - DOOR INSIDE HANDLE Enquire To Order
LR028035 ESCUTCHEON - DOOR INSIDE HANDLE Enquire To Order
LR028032 ESCUTCHEON - DOOR INSIDE HANDLE Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR028040 ESCUTCHEON - HANDLE Enquire To Order
LR028041 ESCUTCHEON - HANDLE Enquire To Order
LR028042 ESCUTCHEON - HANDLE Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR028078 COVER - DOOR TRIM Enquire To Order
LR028079 COVER - DOOR TRIM Enquire To Order
LR028080 COVER - DOOR TRIM Enquire To Order
...and 8 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR028036 COVER - DOOR INNER PANEL Enquire To Order
LR028038 COVER - DOOR INNER PANEL Enquire To Order
LR071787 COVER - DOOR INNER PANEL Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR028037 COVER - DOOR INNER PANEL Enquire To Order
LR028039 COVER - DOOR INNER PANEL Enquire To Order
LR071797 COVER - DOOR INNER PANEL Enquire To Order
...and 1 more part variants. See table on right for more details.
View All

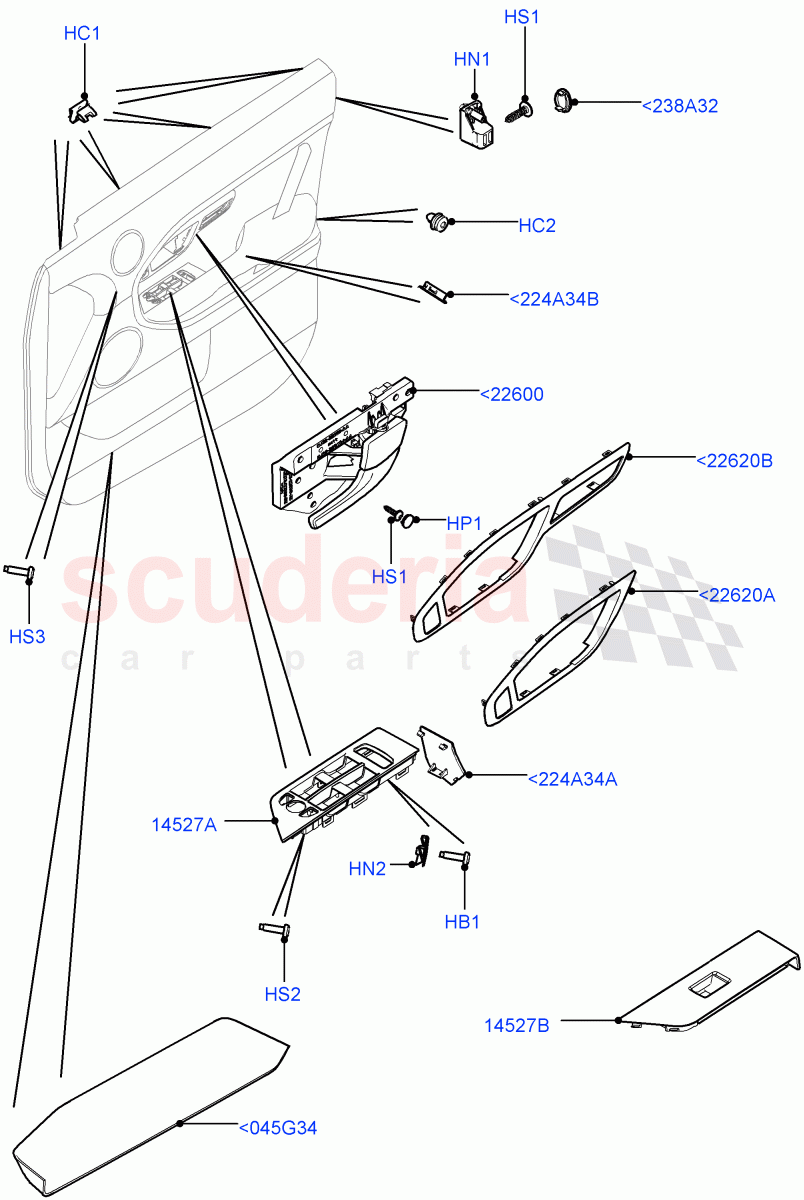

Front Door Trim Installation (5 Door, Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<045G34 LR029277
MAT - DOOR POCKET
LH, Also Serviced In Assy, Door 		- 1 Enquire
<045G34 LR029274
MAT - DOOR POCKET
RH, Also Serviced In Assy, Door 		- 1 Enquire
<224A34A LR028036
COVER - DOOR INNER PANEL
RH, Armrest, Front / To: FH999999 		- 1 Enquire
<224A34A LR028038
COVER - DOOR INNER PANEL
LH, Armrest, Front / To: FH999999 		- 1 Enquire
<224A34A LR071787
COVER - DOOR INNER PANEL
RH, Armrest, Front / From: GH000001 / To: GH116415 		- 1 Enquire
<224A34A LR071798
COVER - DOOR INNER PANEL
LH, Armrest, Front / From: GH000001 / To: GH116415 		- 1 Enquire
<224A34A LR079445
COVER - DOOR INNER PANEL
RH, Armrest, Front / From: GH116416 		- 1 Enquire
<224A34A LR079446
COVER - DOOR INNER PANEL
LH, Armrest, Front / From: GH116416 		- 1 Enquire
<224A34B LR028037
COVER - DOOR INNER PANEL
RH, Armrest, Rear / To: FH999999 		- 1 Enquire
<224A34B LR028039
COVER - DOOR INNER PANEL
LH, Armrest, Rear / To: FH999999 		- 1 Enquire
<224A34B LR071797
COVER - DOOR INNER PANEL
RH, Armrest, Rear / From: GH000001 		- 1 Enquire
<224A34B LR071799
COVER - DOOR INNER PANEL
LH, Armrest, Rear / From: GH000001 		- 1 Enquire
<238A32 LR028078
COVER - DOOR TRIM
I/P Facia Contrast - Lunar / Door Trim Panel / To: GH082655 		- 2 Enquire
<238A32 LR028079
COVER - DOOR TRIM
I/P Facia Contrast - Cirrus/Lunar / Door Trim Panel / To: GH082655 		- 2 Enquire
<238A32 LR028080
COVER - DOOR TRIM
I/P Facia Contrast-Espresso/Ivory / Door Trim Panel / To: GH082655 		- 2 Enquire
<238A32 LR078310
COVER - DOOR TRIM
I/P Facia Contrast - Ebony Black / Door Trim Panel / To: GH082655 		- 2 Enquire
<238A32 LR028082
COVER - DOOR TRIM
I/P Facia Contrast-Espresso/Almond / Door Trim Panel / To: GH082655 		- 2 Enquire
<238A32 LR028080
COVER - DOOR TRIM
I/P Facia Contrast - Lunar/Ivory / Door Trim Panel / From: DH000001 / To: GH082655 		- 2 Enquire
<238A32 LR078307
COVER - DOOR TRIM
I/P Facia Contrast - Lunar / Door Trim Panel / From: GH082656 		- 2 Enquire
<238A32 LR078308
COVER - DOOR TRIM
I/P Facia Contrast - Cirrus/Lunar / Door Trim Panel / From: GH082656 		- 2 Enquire
<238A32 LR078309
COVER - DOOR TRIM
I/P Facia Cntrast-DarkCherry/Ivory / Door Trim Panel / From: GH082656 		- 2 Enquire
<238A32 LR078310
COVER - DOOR TRIM
I/P Facia Contrast - Ebony Black / Door Trim Panel / From: GH082656 		- 2 Enquire
<238A32 LR078311
COVER - DOOR TRIM
I/P Facia Contrast-Espresso/Almond / Door Trim Panel / From: GH082656 		- 2 Enquire
<22600 LR030563
HANDLE - DOOR - INNER
RH / To: FH972618 		- 1 Enquire
<22600 LR030564
HANDLE - DOOR - INNER
LH / To: FH972618 		- 1 Enquire
<22600 LR065130
HANDLE - DOOR - INNER
LH / From: FH972619 		- 1 Enquire
<22600 LR065131
HANDLE - DOOR - INNER
RH / From: FH972619 		- 1 Enquire
<22620A LR028034
ESCUTCHEON - DOOR INSIDE HANDLE
Electric Front Seat Adj Drv Memory, Meteor Appliques, RHD / LH, Also Serviced In Assy 		- 1 Enquire
<22620A LR028035
ESCUTCHEON - DOOR INSIDE HANDLE
Electric Front Seat Adj Drv Memory, Piano Black Appliques, RHD / LH, Also Serviced In Assy 		- 1 Enquire
<22620A LR028032
ESCUTCHEON - DOOR INSIDE HANDLE
Electric Front Seat Adj Drv Memory, LHD, Meteor Appliques / RH, Also Serviced In Assy 		- 1 Enquire
<22620A LR028033
ESCUTCHEON - DOOR INSIDE HANDLE
Electric Front Seat Adj Drv Memory, LHD, Piano Black Appliques / RH, Also Serviced In Assy 		- 1 Enquire
<22620B LR028040
ESCUTCHEON - HANDLE
Electric Front Seat Adj Drv Memory, Meteor Appliques, RHD / RH, Also Serviced In Assy 		- 1 Enquire
<22620B LR028041
ESCUTCHEON - HANDLE
Electric Front Seat Adj Drv Memory, Piano Black Appliques, RHD / RH, Also Serviced In Assy 		- 1 Enquire
<22620B LR028042
ESCUTCHEON - HANDLE
Electric Front Seat Adj Drv Memory, LHD, Meteor Appliques / LH, Also Serviced In Assy 		- 1 Enquire
<22620B LR028044
ESCUTCHEON - HANDLE
Electric Front Seat Adj Drv Memory, LHD, Piano Black Appliques / LH, Also Serviced In Assy 		- 1 Enquire
HB1 LR033002
BOLT AND WASHER - TORX HEAD
For Armrest Door, M6 X 20.5, Torx 		- 4 Enquire
HC1 LR001790
CLIP
Door Trim Panel 		- 10 Enquire
HC2 LR013135
CLIP - TRIM
8.5 X 0.8 - 2.2, Also Serviced In Assy, Door Trim Panel 		- 22 Enquire
HN1 LR000077
NUT - SPECIAL
4.2, Door Trim Panel 		- 2 Enquire
HN2 LR031438
NUT - SQUARE
For Armrest Door, M6 		- 4 Enquire
HP1 LR028847
PLUG - DOOR TRIM PANEL
Located In Door Handle 		- 2 Enquire
HS1 LR003493
SCREW
4.2 x 22MM, Handle And Housing Assy / To: FH999999 		- 2 Enquire
HS1 LR079183
SCREW
4.2 x 22MM, Handle And Housing Assy / From: GH000001 		- 2 Enquire
HS2 LR002884
SCREW
M4 x 10MM 		- 1 Enquire
HS3 LR066957
SCREW AND WASHER
4.2 x 16MM 		- 1 Enquire
14527A LR028050
HOUSING - SWITCH
Dual Power Heated Exterior Mirrors, Meteor Appliques, RHD / RH, Also Serviced In Assy 		- 1 Enquire
14527A LR028051
HOUSING - SWITCH
Dual Power Heated Fold Back Mirror, Meteor Appliques, RHD / RH, Also Serviced In Assy / To: HH999999 		- 1 Enquire
14527A LR028055
HOUSING - SWITCH
Dual Power Heated Exterior Mirrors, Piano Black Appliques, RHD / RH, Also Serviced In Assy 		- 1 Enquire
14527A LR028056
HOUSING - SWITCH
Dual Power Heated Fold Back Mirror, Piano Black Appliques, RHD / RH, Also Serviced In Assy / To: HH999999 		- 1 Enquire
14527A LR028061
HOUSING - SWITCH
Dual Power Heated Exterior Mirrors, LHD, Meteor Appliques / LH, Also Serviced In Assy 		- 1 Enquire
14527A LR028062
HOUSING - SWITCH
Dual Power Heated Fold Back Mirror, LHD, Meteor Appliques / LH, Also Serviced In Assy / To: HH999999 		- 1 Enquire
14527A LR028066
BEZEL - DOOR SWITCH
Dual Power Heated Exterior Mirrors, LHD, Piano Black Appliques / LH, Also Serviced In Assy 		- 1 Enquire
14527A LR028067
HOUSING - SWITCH
Dual Power Heated Fold Back Mirror, LHD, Piano Black Appliques / LH, Also Serviced In Assy / To: HH999999 		- 1 Enquire
14527A LR028051
HOUSING - SWITCH
Dual Power/Heated/Fold/App Mirrors, Meteor Appliques, RHD / RH, Also Serviced In Assy / From: JH000001 		- 1 Enquire
14527A LR028056
HOUSING - SWITCH
Dual Pwr/Htd/Mem/Fld/E'Chr/Pud Lamp, Piano Black Appliques, RHD / RH, Also Serviced In Assy / From: JH000001 		- 1 Enquire
14527A LR028062
HOUSING - SWITCH
Dual Pwr/Htd/Mem/Fld/E'Chr/Pud Lamp, LHD, Meteor Appliques / LH, Also Serviced In Assy / From: JH000001 		- 1 Enquire
14527A LR028067
HOUSING - SWITCH
Dual Pwr/Htd/Mem/Fld/E'Chr/Pud Lamp, LHD, Piano Black Appliques / LH, Also Serviced In Assy / From: JH000001 		- 1 Enquire
14527B LR028054
HOUSING - SWITCH
LHD, Meteor Appliques / RH, Also Serviced In Assy 		- 1 Enquire
14527B LR028059
HOUSING - SWITCH
LHD, Piano Black Appliques / RH, Also Serviced In Assy 		- 1 Enquire
14527B LR028065
HOUSING - SWITCH
Meteor Appliques, RHD / LH, Also Serviced In Assy 		- 1 Enquire
14527B LR028071
HOUSING - SWITCH
Piano Black Appliques, RHD / LH, Also Serviced In Assy 		- 1 Enquire
