Rear Axle (Internal Components) (Halewood (Uk), Dynamic Driveline) ((V) Fromhh190581)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Rear Axle (Internal Components) (Halewood (UK), Dynamic Driveline) ((V) FROMHH190581)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR003777 BOLT $1.99 To Order
Photo Part No Description Price (each) Stock
LR051077 NUT $12.59 To Order
Photo Part No Description Price (each) Stock
LR051418 O-RING $5.28 To Order
Photo Part No Description Price (each) Stock
LR051417 SCREW $2.94 To Order
Photo Part No Description Price (each) Stock
LR051416 SCREW $4.70 To Order
Photo Part No Description Price (each) Stock
LR023697 SCREW $0.54 To Order
Photo Part No Description Price (each) Stock
LR001949 WASHER - DRAIN PLUG $3.44 IN STOCK
Photo Part No Description Price (each) Stock
LR051410 SEAL - DRIVING PINION OIL $21.34 To Order
Photo Part No Description Price (each) Stock
LR051414 FLANGE - DIFFERENTIAL $273.55 To Order
Photo Part No Description Price (each) Stock
LR058370 GASKET - ACTUATOR $20.18 To Order
Photo Part No Description Price (each) Stock
LR079295 MOTOR - PUMP $582.48 To Order
Photo Part No Description Price (each) Stock
LR095326 PIPE - CONNECTING $18.67 To Order
Photo Part No Description Price (each) Stock
LR051408 PIPE - CONNECTING $8.60 To Order
Photo Part No Description Price (each) Stock
LR023440 SEAL - OIL $8.24 To Order
Photo Part No Description Price (each) Stock
LR051413 CONTROL UNIT - AXLE $593.76 To Order
Photo Part No Description Price (each) Stock
LR051409 BRACKET - DIFFERENTIAL $333.13 To Order
Photo Part No Description Price (each) Stock
LR101205 DIFFERENTIAL - REAR $3,511.56 To Order
Photo Part No Description Price (each) Stock
LR094159 HEAT SHIELD - DIFFERENTIAL $20.14 To Order
Photo Part No Description Price (each) Stock
LR051411 WIRE - DIFFERENTIAL $93.14 To Order
Photo Part No Description Price (each) Stock
LR061630 CONTROL UNIT - HYDRAULIC $1,522.55 To Order
Photo Part No Description Price (each) Stock
LR002877 PLUG - FILLER $10.35 To Order
Photo Part No Description Price (each) Stock
LR051294 PLUG - DRAIN $11.31 To Order
Photo Part No Description Price (each) Stock
LR088566 PLUG - OIL $10.44 To Order
Photo Part No Description Price (each) Stock
LR051423 PIPE - HYDRAULIC $45.49 To Order
Photo Part No Description Price (each) Stock
LR051453 PIPE - HYDRAULIC $49.87 To Order
View All

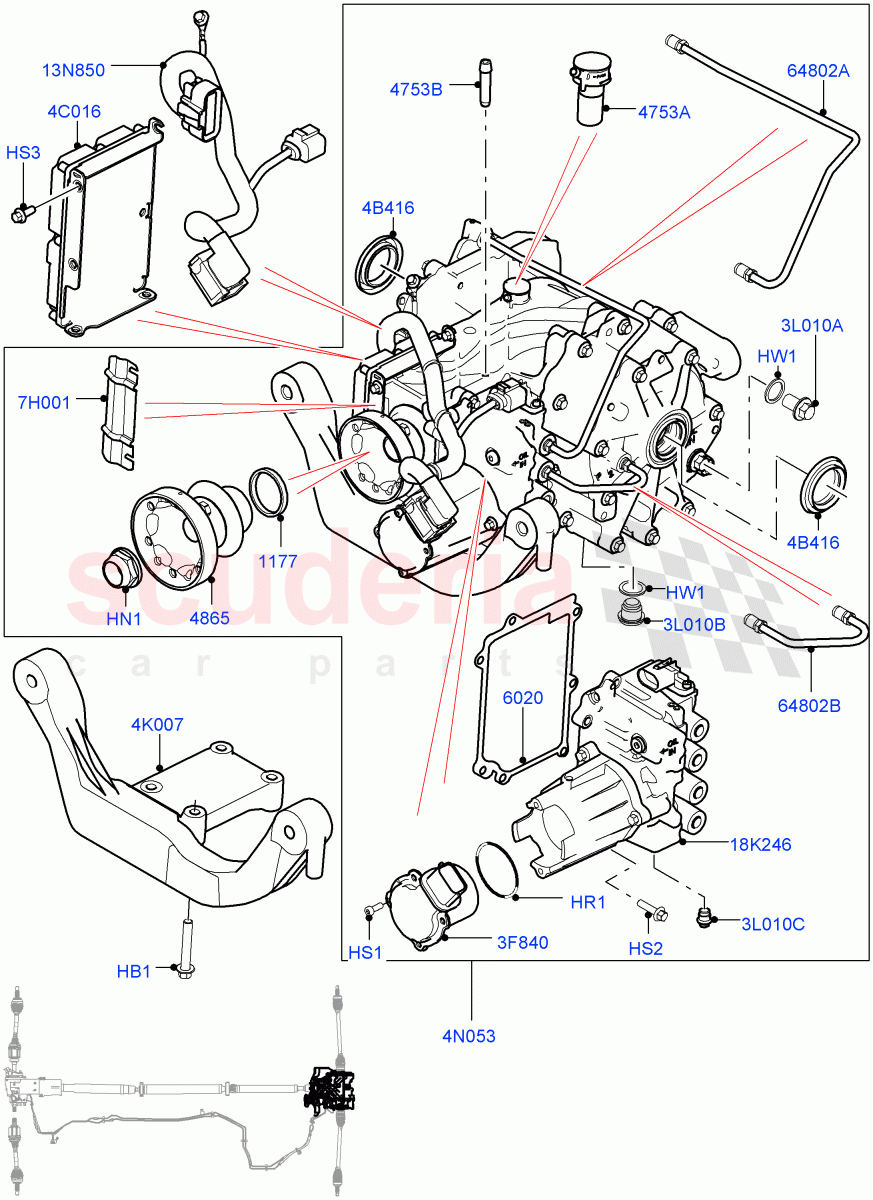

Rear Axle (Internal Components) (Halewood (UK), Dynamic Driveline) ((V) FROMHH190581) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR003777
BOLT
M8 x 50MM / From: HH190581 		$1.99 4
HN1 LR051077
NUT
PTU Flange / From: HH190581 		$12.59 1
HR1 LR051418
O-RING
Hydraulic Control Unit, O Ring Gasket / From: HH190581 		$5.28 1
HS1 LR051417
SCREW
M5 x 25 / From: HH190581 		$2.94 2
HS2 LR051416
SCREW
M6 x 25MM / From: HH190581 		$4.70 7
HS3 LR023697
SCREW
M6 X 16MM / From: HH190581 		$0.54 7
HW1 LR001949
WASHER - DRAIN PLUG
18 X 24 X 1.5 / From: HH190581
IN STOCK 		$3.44 2
3F840 LR079295
MOTOR - PUMP
Electric Oil Pump / From: HH190581 		$582.48 1
3L010A LR002877
PLUG - FILLER
Filler Plug / From: HH190581 		$10.35 1
3L010B LR051294
PLUG - DRAIN
Drain Plug / From: HH190581 		$11.31 1
3L010C LR088566
PLUG - OIL
Hydraulic Control Unit / From: HH190581 		$10.44 1
4B416 LR023440
SEAL - OIL
Driveshaft / From: HH190581 		$8.24 2
4C016 LR051413
CONTROL UNIT - AXLE
Control Module / From: HH190581 		$593.76 1
4K007 LR051409
BRACKET - DIFFERENTIAL
Differential / From: HH190581 		$333.13 1
4N053 LR101205
DIFFERENTIAL - REAR
Rear Drive Unit / From: HH190581 		$3,511.56 1
7H001 LR094159
HEAT SHIELD - DIFFERENTIAL
From: JH000001 		$20.14 1
13N850 LR051411
WIRE - DIFFERENTIAL
Differential / From: HH190581 		$93.14 1
18K246 LR061630
CONTROL UNIT - HYDRAULIC
Hydraulic / From: HH190581 		$1,522.55 1
1177 LR051410
SEAL - DRIVING PINION OIL
Propshaft / From: HH190581 		$21.34 1
4753A LR095326
PIPE - CONNECTING
Breather Pipe, Connection / From: HH190581 		$18.67 1
4753B LR051408
PIPE - CONNECTING
Breather, Connection / From: HH190581 		$8.60 1
4865 LR051414
FLANGE - DIFFERENTIAL
From: HH190581 		$273.55 1
6020 LR058370
GASKET - ACTUATOR
Hydraulic Control Unit / From: HH190581 		$20.18 1
64802A LR051423
PIPE - HYDRAULIC
Upper / From: HH190581 		$45.49 1
64802B LR051453
PIPE - HYDRAULIC
Lower / From: HH190581 		$49.87 1
