Active Driveline (Halewood (Uk), Dynamic Driveline) ((V) Fromeh000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Active Driveline (Halewood (UK), Dynamic Driveline) ((V) FROMEH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR000095 SCREW AND WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR049823 INSULATOR - RETAINER Enquire To Order
Photo Part No Description Price (each) Stock
LR069137 CLIP - PIPE - DUAL Enquire To Order
Photo Part No Description Price (each) Stock
LR049829 HOSE - DRIVELINE HYDRAULICS Enquire To Order
LR054835 HOSE - DRIVELINE HYDRAULICS Enquire To Order
LR076605 HOSE - DRIVELINE HYDRAULICS Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR049830 HOSE - DRIVELINE HYDRAULICS Enquire To Order
LR062668 HOSE - DRIVELINE HYDRAULICS Enquire To Order
LR072064 HOSE - DRIVELINE HYDRAULICS Enquire To Order
Photo Part No Description Price (each) Stock
LR049831 HOSE - DRIVELINE HYDRAULICS Enquire To Order
Photo Part No Description Price (each) Stock
LR049833 HOSE - DRIVELINE HYDRAULICS Enquire To Order
Photo Part No Description Price (each) Stock
LR061937 BRACKET - TUBE Enquire To Order
LR072664 BRACKET - TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR061936 BRACKET - TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR054808 CONNECTOR - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR054807 CONNECTOR - HOSE Enquire To Order
View All

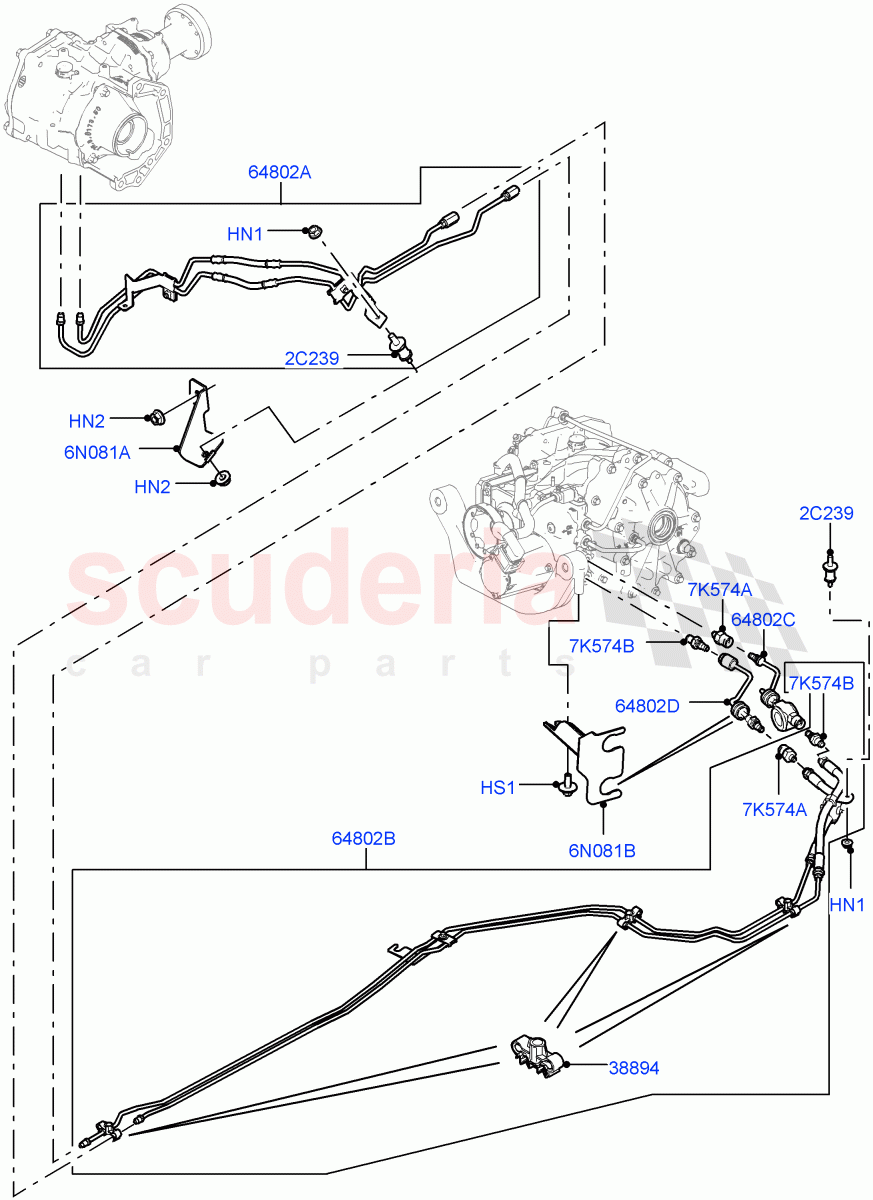

Active Driveline (Halewood (UK), Dynamic Driveline) ((V) FROMEH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FN108046
NUT - HEX.
Hexagonal Head, M8 / From: EH000001 		- 1 Enquire
HN2 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: EH000001 		- 2 Enquire
HS1 LR000095
SCREW AND WASHER
M6 X 16 HEX / From: EH000001 		- 1 Enquire
2C239 LR049823
INSULATOR - RETAINER
From: EH000001 		- 2 Enquire
6N081A LR061937
BRACKET - TUBE
Front, Tube / From: EH000001 / To: FH060852 		- 1 Enquire
6N081A LR072664
BRACKET - TUBE
Front, Tube / From: FH060853 		- 1 Enquire
6N081B LR061936
BRACKET - TUBE
Rear, Tube / From: EH000001 		- 1 Enquire
7K574A LR054808
CONNECTOR - HOSE
Female / From: EH000001 		- 2 Enquire
7K574B LR054807
CONNECTOR - HOSE
Male / From: EH000001 		- 2 Enquire
38894 LR069137
CLIP - PIPE - DUAL
From: GH000001 		- 3 Enquire
64802A LR049829
HOSE - DRIVELINE HYDRAULICS
2.2L CR DI 16V Diesel / Front / From: EH000001 / To: FH971003 		- 1 Enquire
64802A LR054835
HOSE - DRIVELINE HYDRAULICS
2.0L 16V TIVCT T/C Gen2 Petrol / Front / From: EH000001 / To: FH065261 		- 1 Enquire
64802A LR076605
HOSE - DRIVELINE HYDRAULICS
2.0L 16V TIVCT T/C 240PS Petrol / Front / From: FH065262 		- 1 Enquire
64802A LR076310
HOSE - DRIVELINE HYDRAULICS
2.0L I4 High DOHC AJ200 Petrol / Front / From: FH971004 		- 1 Enquire
64802B LR049830
HOSE - DRIVELINE HYDRAULICS
Center Rear / From: EH000001 / To: FH960038 		- 1 Enquire
64802B LR062668
HOSE - DRIVELINE HYDRAULICS
Center Rear / From: FH960039 / To: FH999999 		- 1 Enquire
64802B LR072064
HOSE - DRIVELINE HYDRAULICS
Center Rear / From: GH000001 		- 1 Enquire
64802C LR049831
HOSE - DRIVELINE HYDRAULICS
Rear, Upper / From: EH000001 		- 1 Enquire
64802D LR049833
HOSE - DRIVELINE HYDRAULICS
Lower, Rear / From: EH000001 		- 1 Enquire
