Front Susp.Arms/Stabilizer/X-Member (Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Front Susp.Arms/Stabilizer/X-Member (Changsu (China)) ((V) FROMEG000001)

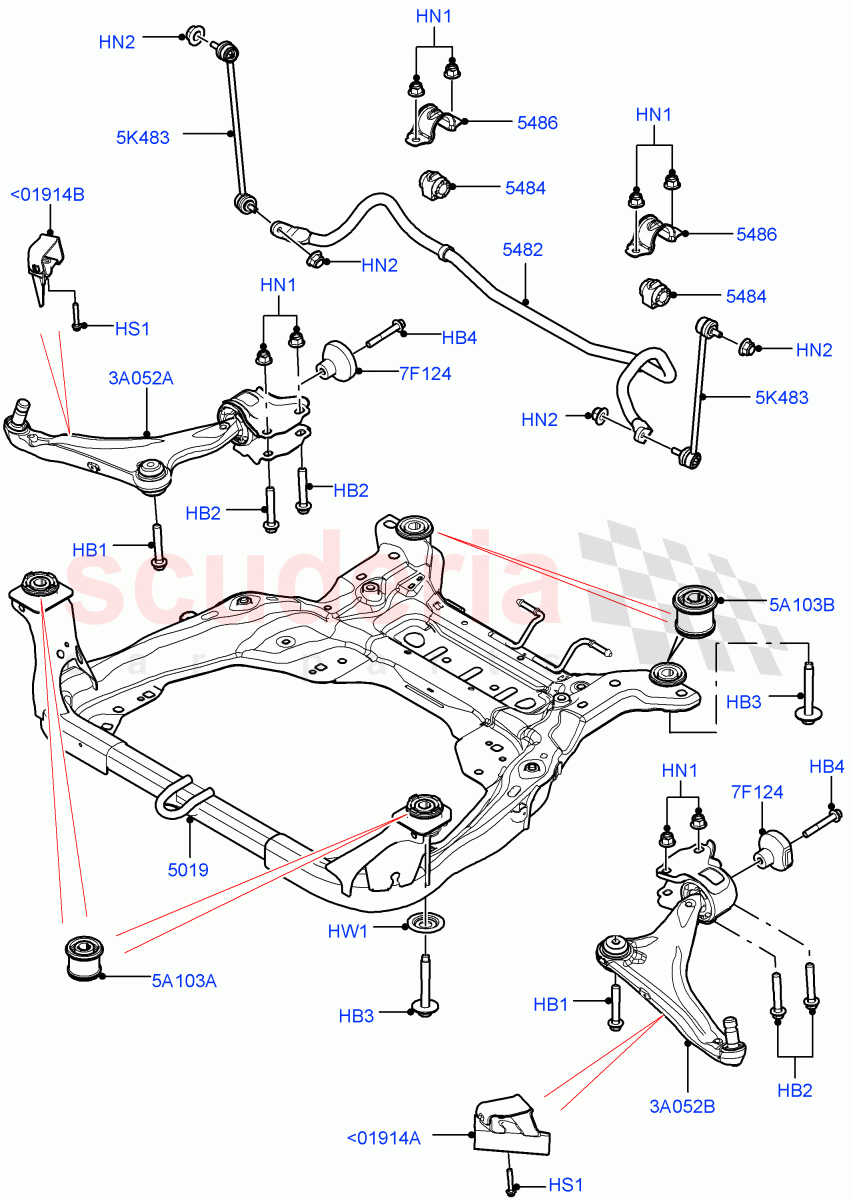

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR024149	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024150	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000466	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FB108116	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY114056	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FX110056	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000475	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR059295	CROSSMEMBER - FRONT	Enquire	To Order
	LR072058	CROSS MEMBER - FRONT	Enquire	To Order
	LR098371	CROSS MEMBER - FRONT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR024493	BAR - FRONT STABILIZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR030743	INSULATOR - STABILIZER BAR	Enquire	To Order
	LR110708	INSULATOR - STABILIZER BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090408	CLAMP - STABILIZER BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024474	LINK - STABILIZER BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033630	WEIGHT - VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045803	ARM - FRONT SUSPENSION	Enquire	To Order
	LR078656	ARM - FRONT SUSPENSION	Enquire	To Order
	LR104884	ARM - FRONT SUSPENSION	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR045802	ARM - FRONT SUSPENSION	Enquire	To Order
	LR078657	ARM - FRONT SUSPENSION	Enquire	To Order
	LR104885	ARM - FRONT SUSPENSION	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR012724	BUSH - INSULATING	Enquire	To Order
	LR072655	BUSH - INSULATING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003940	INSULATOR	Enquire	To Order
	LR072659	INSULATOR - CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082639	DUCT - BRAKE CALIPER COOLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082641	DUCT - BRAKE CALIPER COOLING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<01914A	LR082639	DUCT - BRAKE CALIPER COOLING	LR082639 DUCT - BRAKE CALIPER COOLING RH, Brake Caliper Cooling / From: GG134738	-	1	Enquire
<01914B	LR082641	DUCT - BRAKE CALIPER COOLING	LR082641 DUCT - BRAKE CALIPER COOLING LH, Brake Caliper Cooling / From: GG134738	-	1	Enquire
HB1	LR024149	BOLT	LR024149 BOLT M14 X 90, Torx / From: EG000001	-	2	Enquire
HB2	LR024150	BOLT	LR024150 BOLT M14 x 85MM / From: EG000001	-	4	Enquire
HB3	LR000466	BOLT AND WASHER - HEX.HEAD	LR000466 BOLT AND WASHER - HEX.HEAD Bolt And Washer, M16 / From: EG000001	-	4	Enquire
HB4	FB108116	BOLT	FB108116 BOLT M8 x 55MM / From: EG000001	-	2	Enquire
HN1	FY114056	NUT - HEX.	FY114056 NUT - HEX. Hexagonal Head, M14 / From: EG000001	-	4	Enquire
HN2	FX110056	NUT - HEX.	FX110056 NUT - HEX. Hex Nut Type, M10 / From: EG000001	-	4	Enquire
HS1	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM / From: GG134738	-	2	Enquire
HW1	LR000475	WASHER	LR000475 WASHER Frame To Body,	-	2	Enquire
3A052A	LR045803	ARM - FRONT SUSPENSION	LR045803 ARM - FRONT SUSPENSION RH / From: EG000001 / To: GG130574	-	1	Enquire
3A052A	LR078656	ARM - FRONT SUSPENSION	LR078656 ARM - FRONT SUSPENSION With Standard Suspension / RH / From: GG130575 / To: HG161788	-	1	Enquire
3A052A	LR104884	ARM - FRONT SUSPENSION	LR104884 ARM - FRONT SUSPENSION Front Wheel Drive, Heavy Duty Suspension / RH / From: HG161788 / To: HG162788	-	1	Enquire
3A052A	LR110312	ARM - FRONT SUSPENSION	LR110312 ARM - FRONT SUSPENSION Front Wheel Drive, Heavy Duty Suspension / RH / From: HG162788	-	1	Enquire
3A052B	LR045802	ARM - FRONT SUSPENSION	LR045802 ARM - FRONT SUSPENSION LH / From: EG000001 / To: GG130574	-	1	Enquire
3A052B	LR078657	ARM - FRONT SUSPENSION	LR078657 ARM - FRONT SUSPENSION With Standard Suspension / LH / From: GG130575 / To: HG161788	-	1	Enquire
3A052B	LR104885	ARM - FRONT SUSPENSION	LR104885 ARM - FRONT SUSPENSION Front Wheel Drive, Heavy Duty Suspension / LH / From: HG161788 / To: HG162787	-	1	Enquire
3A052B	LR110313	ARM - FRONT SUSPENSION	LR110313 ARM - FRONT SUSPENSION Front Wheel Drive, Heavy Duty Suspension / LH / From: HG162788	-	1	Enquire
5A103A	LR012724	BUSH - INSULATING	LR012724 BUSH - INSULATING Frame To Body, Front / From: EG000001 / To: GG134737	-	2	Enquire
5A103A	LR072655	BUSH - INSULATING	LR072655 BUSH - INSULATING Frame To Body, Front / From: GG134738	-	2	Enquire
5A103B	LR003940	INSULATOR	LR003940 INSULATOR Frame To Body, Rear / From: EG000001 / To: GG134737	-	2	Enquire
5A103B	LR072659	INSULATOR - CROSS MEMBER	LR072659 INSULATOR - CROSS MEMBER Frame To Body, Rear / From: GG134738	-	2	Enquire
5K483	LR024474	LINK - STABILIZER BAR	LR024474 LINK - STABILIZER BAR From: EG000001	-	2	Enquire
7F124	LR033630	WEIGHT - VIBRATION DAMPER	LR033630 WEIGHT - VIBRATION DAMPER From: EG000001	-	2	Enquire
5019	LR059295	CROSSMEMBER - FRONT	LR059295 CROSSMEMBER - FRONT From: EG000001 / To: FG117243	-	1	Enquire
5019	LR072058	CROSS MEMBER - FRONT	LR072058 CROSS MEMBER - FRONT From: FG117244 / To: HG149558	-	1	Enquire
5019	LR098371	CROSS MEMBER - FRONT	LR098371 CROSS MEMBER - FRONT 5 Door, All Wheel Drive / From: HG149559	-	1	Enquire
5019	LR098369	CROSSMEMBER - FRONT	LR098369 CROSSMEMBER - FRONT 3 Door, Front Wheel Drive / From: HG149559	-	1	Enquire
5482	LR024493	BAR - FRONT STABILIZER	LR024493 BAR - FRONT STABILIZER From: EG000001	-	1	Enquire
5484	LR030743	INSULATOR - STABILIZER BAR	LR030743 INSULATOR - STABILIZER BAR Stabilizer Bar / From: EG000001 / To: GG134737	-	2	Enquire
5484	LR110708	INSULATOR - STABILIZER BAR	LR110708 INSULATOR - STABILIZER BAR Stabilizer Bar / From: GG134738	-	2	Enquire
5486	LR090408	CLAMP - STABILIZER BAR	LR090408 CLAMP - STABILIZER BAR Stabilizer Bar / From: EG000001	-	2	Enquire
