Name: Fuel Tank & Related Parts (2.0L I4 DSL MID DOHC AJ200, Itatiaia (Brazil), Less Emission Tank, 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMGT000001)
Rating: 5.0 (1 reviews)

Fuel Tank & Related Parts (2.0L I4 DSL MID DOHC AJ200, Itatiaia (Brazil), Less Emission Tank, 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Fuel Tank & Related Parts (2.0L I4 DSL MID DOHC AJ200, Itatiaia (Brazil), Less Emission Tank, 2.0L...

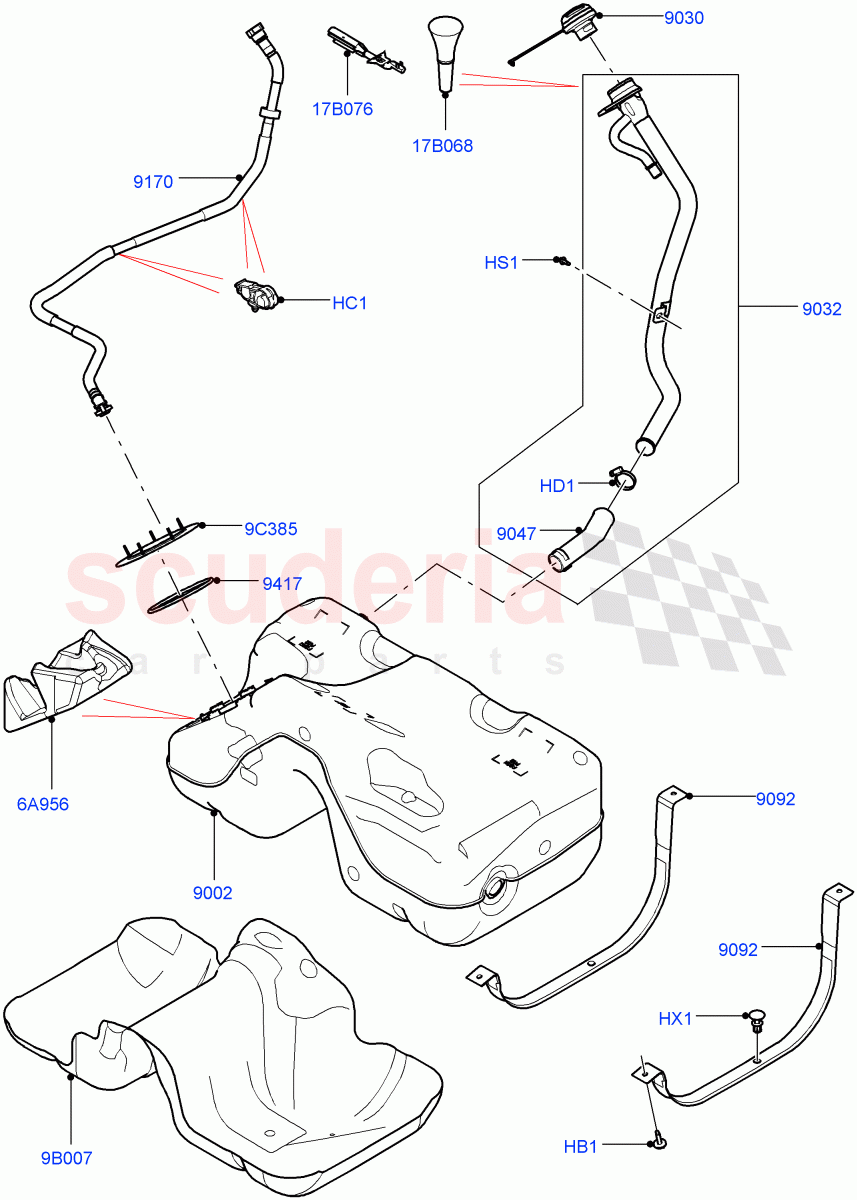

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG501020	BOLT	$1.90	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR006655	CLIP	$1.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001736	CLAMP - FUEL SUPPLY TUBE	$1.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023697	SCREW	$0.54	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500170	RETAINER - RIVET	$0.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072245	TANK - FUEL	$1,143.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021560	CAP - FUEL TANK FILLER	$34.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029133	PIPE - FUEL FILLER	$150.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028399	HOSE - FILLER PIPE	$33.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025817	STRAP - FUEL TANK	$34.08	IN STOCK
	LR094170	STRAP - FUEL TANK	$61.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR052183	HOSE - VENT	$50.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117476	GASKET	$10.05	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	LR025816	FOAM PAD - ENERGY ABSORBING	$53.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041435	SHIELD - FUEL TANK	$379.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003778	RING - RETAINING	$36.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073691	FUNNEL - FUEL FILLER	$6.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014047	RESTRICTOR - FUEL	$25.12	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG501020	BOLT IN STOCK	RYG501020 BOLT M8 X 30MM / From: GT000001 IN STOCK	$1.90	4
HC1	LR006655	CLIP	LR006655 CLIP 14+12-20.5 X 7.5 X 1-3 / From: GT000001	$1.18	2
HD1	LR001736	CLAMP - FUEL SUPPLY TUBE	LR001736 CLAMP - FUEL SUPPLY TUBE 25 x 40MM / From: GT000001	$1.70	1
HS1	LR023697	SCREW	LR023697 SCREW M6 X 16MM / From: GT000001	$0.54	1
HX1	RYQ500170	RETAINER - RIVET	RYQ500170 RETAINER - RIVET Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: GT000001	$0.97	2
6A956	LR025816	FOAM PAD - ENERGY ABSORBING	LR025816 FOAM PAD - ENERGY ABSORBING From: GT000001	$53.39	1
9B007	LR041435	SHIELD - FUEL TANK	LR041435 SHIELD - FUEL TANK From: GT000001	$379.61	1
9C385	LR003778	RING - RETAINING	LR003778 RING - RETAINING From: GT000001	$36.66	1
17B068	LR073691	FUNNEL - FUEL FILLER	LR073691 FUNNEL - FUEL FILLER Fuel Tank Filler Neck With Inhibit / From: GT000001	$6.02	1
17B076	LR014047	RESTRICTOR - FUEL	LR014047 RESTRICTOR - FUEL From: GT000001	$25.12	1
9002	LR072245	TANK - FUEL	LR072245 TANK - FUEL From: GT000001	$1,143.68	1
9030	LR021560	CAP - FUEL TANK FILLER	LR021560 CAP - FUEL TANK FILLER From: GT000001	$34.60	1
9032	LR029133	PIPE - FUEL FILLER	LR029133 PIPE - FUEL FILLER From: GT000001	$150.55	1
9047	LR028399	HOSE - FILLER PIPE	LR028399 HOSE - FILLER PIPE From: GT000001	$33.25	1
9092	LR025817	STRAP - FUEL TANK IN STOCK	LR025817 STRAP - FUEL TANK From: GT000001 / To: HT999999 IN STOCK	$34.08	2
9092	LR094170	STRAP - FUEL TANK IN STOCK	LR094170 STRAP - FUEL TANK From: JT000001 IN STOCK	$61.69	2
9170	LR052183	HOSE - VENT	LR052183 HOSE - VENT From: GT000001	$50.68	1
9417	LR117476	GASKET ARRIVING SOON	LR117476 GASKET O-Ring / From: GT000001 ARRIVING SOON	$10.05	1
