Fuel Tank & Related Parts (2.0L I4 DSL MID DOHC AJ200, Less Emission Tank, 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMGH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Fuel Tank & Related Parts (2.0L I4 DSL MID DOHC AJ200, Less Emission Tank, 2.0L I4 DSL HIGH DOHC...

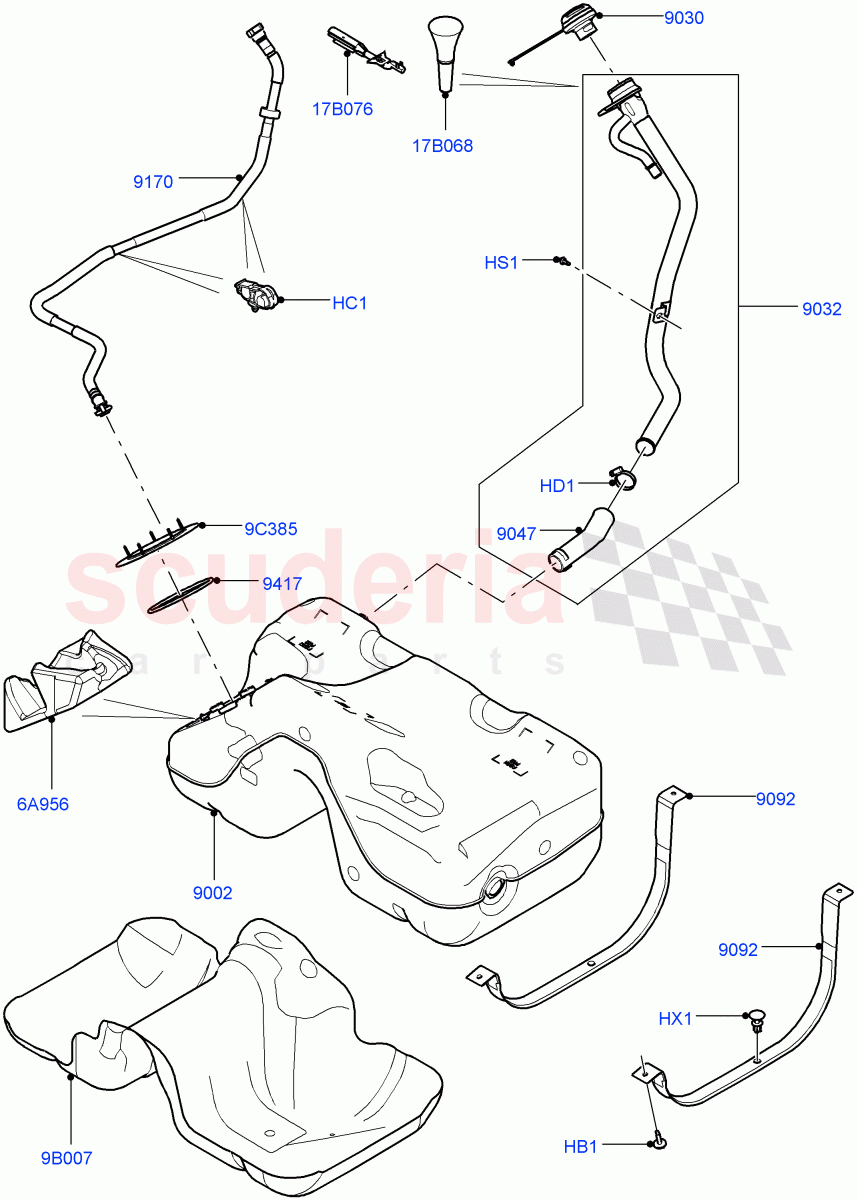

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG501020	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006655	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001736	CLAMP - FUEL SUPPLY TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023697	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500170	RETAINER - RIVET	Enquire	To Order
	LR115125	RETAINER - RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072245	TANK - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021560	CAP - FUEL TANK FILLER	Enquire	To Order
	LR021560	CAP - FUEL TANK FILLER	Enquire	To Order
	LR107022	CAP - FUEL TANK FILLER	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR029133	PIPE - FUEL FILLER	Enquire	To Order
	LR045111	PIPE - FUEL FILLER	Enquire	To Order
	LR079222	PIPE - FUEL FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028399	HOSE - FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025817	STRAP - FUEL TANK	Enquire	To Order
	LR094170	STRAP - FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052183	HOSE - VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117476	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025816	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041435	SHIELD - FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003778	RING - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073691	FUNNEL - FUEL FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014047	RESTRICTOR - FUEL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	RYG501020	BOLT	RYG501020 BOLT M8 X 30MM / From: GH000001	-	4	Enquire
HC1	LR006655	CLIP	LR006655 CLIP 14+12-20.5 X 7.5 X 1-3 / From: GH000001	-	2	Enquire
HD1	LR001736	CLAMP - FUEL SUPPLY TUBE	LR001736 CLAMP - FUEL SUPPLY TUBE 25 x 40MM	-	1	Enquire
HS1	LR023697	SCREW	LR023697 SCREW M6 X 16MM / From: GH000001	-	1	Enquire
HX1	RYQ500170	RETAINER - RIVET	RYQ500170 RETAINER - RIVET Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: GH000001 / To: JH309714	-	2	Enquire
HX1	LR115125	RETAINER - RIVET	LR115125 RETAINER - RIVET Fuel Tank Strap, Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: JH309715	-	2	Enquire
6A956	LR025816	FOAM PAD - ENERGY ABSORBING	LR025816 FOAM PAD - ENERGY ABSORBING From: GH000001	-	1	Enquire
9B007	LR041435	SHIELD - FUEL TANK	LR041435 SHIELD - FUEL TANK From: GH000001	-	1	Enquire
9C385	LR003778	RING - RETAINING	LR003778 RING - RETAINING From: GH000001	-	1	Enquire
17B068	LR073691	FUNNEL - FUEL FILLER	LR073691 FUNNEL - FUEL FILLER Fuel Tank Filler Neck With Inhibit / From: GH000001	-	1	Enquire
17B076	LR014047	RESTRICTOR - FUEL	LR014047 RESTRICTOR - FUEL From: GH000001	-	1	Enquire
9002	LR072245	TANK - FUEL	LR072245 TANK - FUEL Less Emission Tank / From: GH000001	-	1	Enquire
9030	LR021560	CAP - FUEL TANK FILLER	LR021560 CAP - FUEL TANK FILLER From: GH000001 / To: HH999999	-	1	Enquire
9030	LR021560	CAP - FUEL TANK FILLER	LR021560 CAP - FUEL TANK FILLER Fuel Tank Filler Neck With Inhibit / From: JH000001 / To: KH333321	-	1	Enquire
9030	LR107022	CAP - FUEL TANK FILLER	LR107022 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Japan / From: JH000001 / To: KH353558	-	1	Enquire
9030	LR053666	CAP - FUEL TANK FILLER	LR053666 CAP - FUEL TANK FILLER Fuel Tank Filler Neck With Inhibit / From: KH333322 / To: KH342276	-	1	Enquire
9030	LR112190	CAP - FUEL TANK FILLER	LR112190 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Japan / From: KH353559	-	1	Enquire
9030	LR138861	CAP - FUEL TANK FILLER	LR138861 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - All Nozzles / From: KH342277	-	1	Enquire
9032	LR029133	PIPE - FUEL FILLER	LR029133 PIPE - FUEL FILLER Fuel Tank Filler Neck - Diesel / From: GH000001	-	1	Enquire
9032	LR045111	PIPE - FUEL FILLER	LR045111 PIPE - FUEL FILLER Fuel Tank Filler Neck - All Nozzles / From: GH000001	-	1	Enquire
9032	LR079222	PIPE - FUEL FILLER	LR079222 PIPE - FUEL FILLER Fuel Tank Filler Neck With Inhibit / From: GH000001	-	1	Enquire
9047	LR028399	HOSE - FILLER PIPE	LR028399 HOSE - FILLER PIPE From: GH000001	-	1	Enquire
9092	LR025817	STRAP - FUEL TANK	LR025817 STRAP - FUEL TANK From: GH000001 / To: HH999999	-	2	Enquire
9092	LR094170	STRAP - FUEL TANK	LR094170 STRAP - FUEL TANK From: JH000001	-	2	Enquire
9170	LR052183	HOSE - VENT	LR052183 HOSE - VENT From: GH000001	-	1	Enquire
9417	LR117476	GASKET	LR117476 GASKET O-Ring / From: GH000001	-	1	Enquire
