Fuel Tank & Related Parts (2.0L I4 Dsl Mid Dohc Aj200, Halewood (Uk), With Diesel Exh Fluid...

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Fuel Tank & Related Parts (2.0L I4 DSL MID DOHC AJ200, Halewood (UK), With Diesel Exh Fluid...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG501020 BOLT $1.90 IN STOCK
Photo Part No Description Price (each) Stock
LR088949 BOLT $3.78 To Order
Photo Part No Description Price (each) Stock
LR006655 CLIP $1.18 To Order
Photo Part No Description Price (each) Stock
LR001736 CLAMP - FUEL SUPPLY TUBE $1.70 To Order
Photo Part No Description Price (each) Stock
LR023697 SCREW $0.54 To Order
Photo Part No Description Price (each) Stock
RYQ500170 RETAINER - RIVET $0.97 To Order
LR115125 RETAINER - RIVET $0.99 To Order
Photo Part No Description Price (each) Stock
LR072228 TANK - FUEL $929.92 To Order
Photo Part No Description Price (each) Stock
LR021560 CAP - FUEL TANK FILLER $34.60 To Order
LR021560 CAP - FUEL TANK FILLER $34.60 To Order
LR107022 CAP - FUEL TANK FILLER $34.32 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR029133 PIPE - FUEL FILLER $150.55 To Order
LR045111 PIPE - FUEL FILLER $134.00 To Order
LR079221 PIPE - FUEL FILLER $242.19 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR028399 HOSE - FILLER PIPE $33.25 To Order
Photo Part No Description Price (each) Stock
LR052183 HOSE - VENT $50.68 To Order
Photo Part No Description Price (each) Stock
LR117476 GASKET $10.05 ARRIVING SOON
Photo Part No Description Price (each) Stock
LR025816 FOAM PAD - ENERGY ABSORBING $53.39 To Order
Photo Part No Description Price (each) Stock
LR025817 STRAP - FUEL TANK $34.08 IN STOCK
LR088947 STRAP - FUEL TANK $274.27 To Order
LR094168 STRAP - FUEL TANK $61.77 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR072226 STRAP - FUEL TANK $61.89 To Order
LR088948 STRAP - FUEL TANK $274.27 To Order
LR094170 STRAP - FUEL TANK $61.69 IN STOCK
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR003778 RING - RETAINING $36.66 To Order
Photo Part No Description Price (each) Stock
LR073691 FUNNEL - FUEL FILLER $6.02 To Order
Photo Part No Description Price (each) Stock
LR014047 RESTRICTOR - FUEL $25.12 To Order
Photo Part No Description Price (each) Stock
LR071884 SHIELD - FUEL TANK $315.79 To Order
Photo Part No Description Price (each) Stock
LR071883 SHIELD - FUEL TANK $171.43 To Order
View All

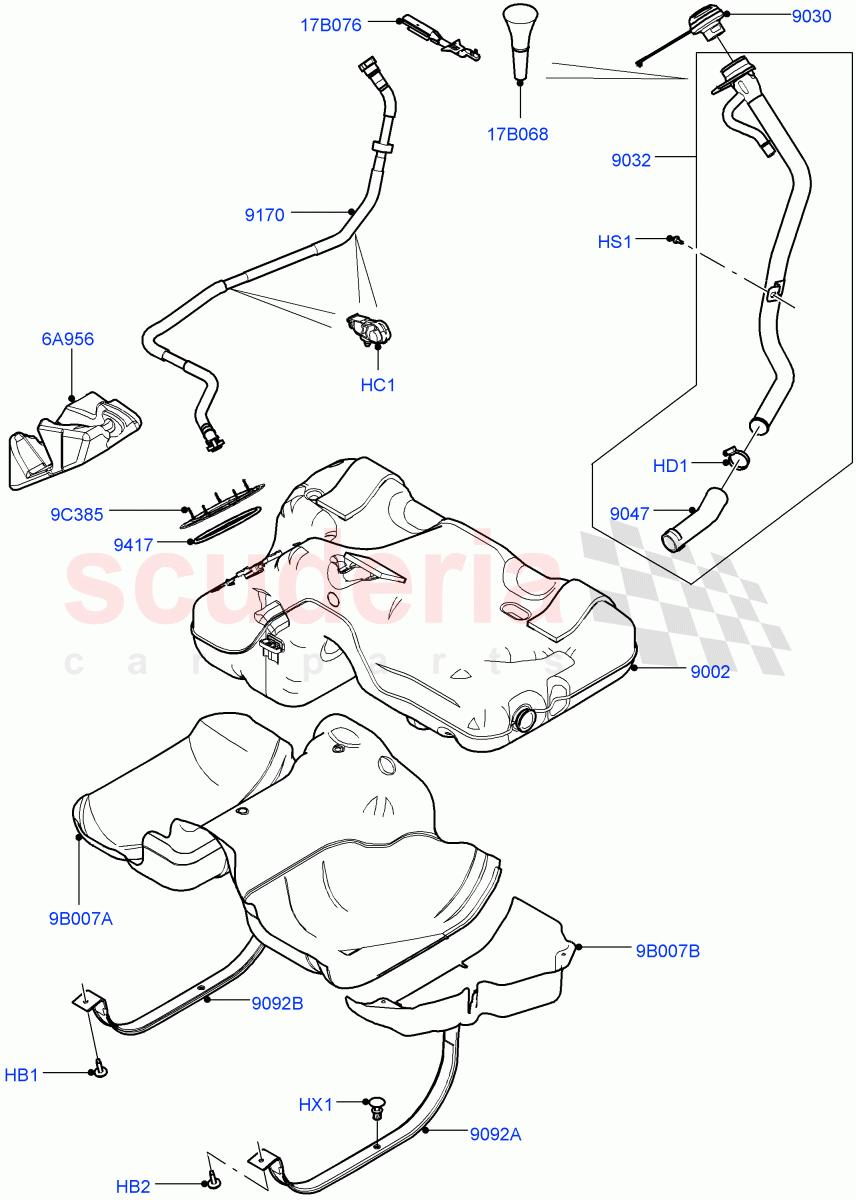

Fuel Tank & Related Parts (2.0L I4 DSL MID DOHC AJ200, Halewood (UK), With Diesel Exh Fluid Emission Tank, 2.0L I4 DSL HIGH DOHC AJ200) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG501020
BOLT
M8 X 30MM / From: GH000001
IN STOCK 		$1.90 4
HB2 LR088949
BOLT
M6 X 40MM / From: HH000001 		$3.78 2
HC1 LR006655
CLIP
14+12-20.5 X 7.5 X 1-3 / From: GH000001 		$1.18 2
HD1 LR001736
CLAMP - FUEL SUPPLY TUBE
25 x 40MM 		$1.70 1
HS1 LR023697
SCREW
M6 X 16MM / From: GH000001 		$0.54 1
HX1 RYQ500170
RETAINER - RIVET
Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: GH000001 / To: JH309714 		$0.97 2
HX1 LR115125
RETAINER - RIVET
Fuel Tank Strap, Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: JH309715 		$0.99 2
6A956 LR025816
FOAM PAD - ENERGY ABSORBING
From: GH000001 		$53.39 1
9B007A LR071884
SHIELD - FUEL TANK
From: GH000001 		$315.79 1
9B007B LR071883
SHIELD - FUEL TANK
From: GH000001 		$171.43 1
9C385 LR003778
RING - RETAINING
From: GH000001 		$36.66 1
17B068 LR073691
FUNNEL - FUEL FILLER
Fuel Tank Filler Neck With Inhibit / From: GH000001 		$6.02 1
17B076 LR014047
RESTRICTOR - FUEL
From: GH000001 		$25.12 1
9002 LR072228
TANK - FUEL
From: GH000001 		$929.92 1
9030 LR021560
CAP - FUEL TANK FILLER
From: GH000001 / To: HH999999 		$34.60 1
9030 LR021560
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck With Inhibit / From: JH000001 / To: KH333321 		$34.60 1
9030 LR107022
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Japan / From: JH000001 / To: KH353558 		$34.32 1
9030 LR053666
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck With Inhibit / From: KH333322 / To: KH342276 		$26.81 1
9030 202123475
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - DMTL / From: KH333322 		$38.99 1
9030 LR112190
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Japan / From: KH353559 		$33.66 1
9030 LR138861
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Diesel / From: KH342277 		$37.60 1
9032 LR029133
PIPE - FUEL FILLER
Fuel Tank Filler Neck - Diesel / From: GH000001 		$150.55 1
9032 LR045111
PIPE - FUEL FILLER
Fuel Tank Filler Neck - All Nozzles / From: GH000001 		$134.00 1
9032 LR079221
PIPE - FUEL FILLER
Fuel Tank Filler Neck - DMTL / From: GH000001 		$242.19 1
9032 LR079222
PIPE - FUEL FILLER
Fuel Tank Filler Neck With Inhibit / From: GH000001 		$264.92 1
9047 LR028399
HOSE - FILLER PIPE
From: GH000001 		$33.25 1
9092A LR025817
STRAP - FUEL TANK
LH / From: GH000001 / To: GH999999
IN STOCK 		$34.08 1
9092A LR088947
STRAP - FUEL TANK
Front Disc And Caliper Size 18 / LH / From: HH000001 / To: HH999999 		$274.27 1
9092A LR094168
STRAP - FUEL TANK
LH / From: JH000001 		$61.77 1
9092A LR025817
STRAP - FUEL TANK
Front Disc And Caliper Size 16 / LH / From: HH000001 / To: HH999999
IN STOCK 		$34.08 1
9092B LR072226
STRAP - FUEL TANK
RH / From: GH000001 / To: GH999999 		$61.89 1
9092B LR088948
STRAP - FUEL TANK
Front Disc And Caliper Size 18 / RH / From: HH000001 / To: HH999999 		$274.27 1
9092B LR094170
STRAP - FUEL TANK
RH / From: JH000001
IN STOCK 		$61.69 1
9092B LR072226
STRAP - FUEL TANK
Front Disc And Caliper Size 16 / RH / From: HH000001 / To: HH999999 		$61.89 1
9170 LR052183
HOSE - VENT
From: GH000001 		$50.68 1
9417 LR117476
GASKET
O-Ring / From: GH000001
ARRIVING SOON 		$10.05 1
