Oil Pan/Oil Level Indicator (2.0L I4 DSL MID DOHC AJ200, Itatiaia (Brazil), 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Oil Pan/Oil Level Indicator (2.0L I4 DSL MID DOHC AJ200, Itatiaia (Brazil), 2.0L I4 DSL HIGH DOHC...

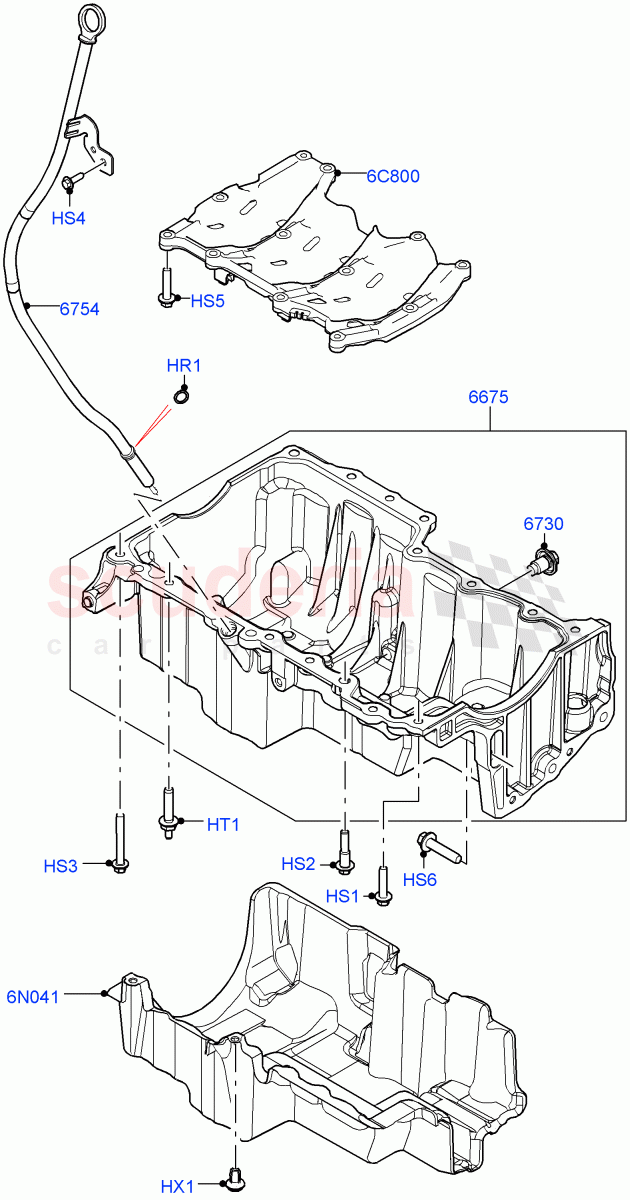

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR074127	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073676	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073677	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074137	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073635	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073724	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR089234	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071767	RIVET - PLASTIC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073674	PAN - ENGINE OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073675	PLUG - OIL DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073668	TUBE - OIL LEVEL INDICATOR	Enquire	To Order
	LR112106	TUBE - OIL LEVEL INDICATOR	Enquire	To Order
	LR080734	TUBE - OIL LEVEL INDICATOR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR073634	TRAY - WINDAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084314	INSULATOR - OIL SUMP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HR1	LR074127	O-RING	LR074127 O-RING 11.5 x 2 mm / From: GT000001	-	1	Enquire
HS1	LR073676	SCREW	LR073676 SCREW M8 x 35mm / From: GT000001	-	13	Enquire
HS2	LR073677	SCREW	LR073677 SCREW M8 x 42mm / From: GT000001	-	2	Enquire
HS3	LR074137	SCREW	LR074137 SCREW M8 x 60mm / From: GT000001	-	1	Enquire
HS4	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM / From: GT000001	-	1	Enquire
HS5	LR073635	SCREW	LR073635 SCREW M6 x 35MM, Windage Tray / From: GT000001	-	12	Enquire
HS6	LR073724	SCREW	LR073724 SCREW M8 X 25MM, Timing Chain Lower Cover / From: GT000001	-	1	Enquire
HT1	LR089234	STUD	LR089234 STUD M8 X 35 + M6 X 12 / From: GT000001	-	2	Enquire
HX1	LR071767	RIVET - PLASTIC	LR071767 RIVET - PLASTIC 7.8-9.1 x 4.5-10.5, Insulator / From: GT000001	-	3	Enquire
6C800	LR073634	TRAY - WINDAGE	LR073634 TRAY - WINDAGE From: GT000001	-	1	Enquire
6N041	LR084314	INSULATOR - OIL SUMP	LR084314 INSULATOR - OIL SUMP From: GT000001	-	1	Enquire
6675	LR073674	PAN - ENGINE OIL	LR073674 PAN - ENGINE OIL From: GT000001	-	1	Enquire
6730	LR073675	PLUG - OIL DRAIN	LR073675 PLUG - OIL DRAIN M14 X 21 / From: GT000001	-	1	Enquire
6754	LR073668	TUBE - OIL LEVEL INDICATOR	LR073668 TUBE - OIL LEVEL INDICATOR 2.0L I4 DSL MID DOHC AJ200 / From: GT000001 / To: GT999999	-	1	Enquire
6754	LR112106	TUBE - OIL LEVEL INDICATOR	LR112106 TUBE - OIL LEVEL INDICATOR 2.0L I4 DSL HIGH DOHC AJ200 / From: JT000001	-	1	Enquire
6754	LR080734	TUBE - OIL LEVEL INDICATOR	LR080734 TUBE - OIL LEVEL INDICATOR 2.0L I4 DSL MID DOHC AJ200 / From: HT000001 / To: HT999999	-	1	Enquire
6754	LR125658	TUBE - OIL LEVEL INDICATOR	LR125658 TUBE - OIL LEVEL INDICATOR 2.0L I4 DSL MID DOHC AJ200 / From: JT000001	-	1	Enquire
