Name: Oil Pan/Oil Level Indicator (2.0L I4 DSL MID DOHC AJ200, Halewood (UK), 2.0L I4 DSL HIGH DOHC AJ200)
Rating: 4.5 (1 reviews)

Oil Pan/Oil Level Indicator (2.0L I4 DSL MID DOHC AJ200, Halewood (UK), 2.0L I4 DSL HIGH DOHC AJ200) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Oil Pan/Oil Level Indicator (2.0L I4 DSL MID DOHC AJ200, Halewood (UK), 2.0L I4 DSL HIGH DOHC AJ200)

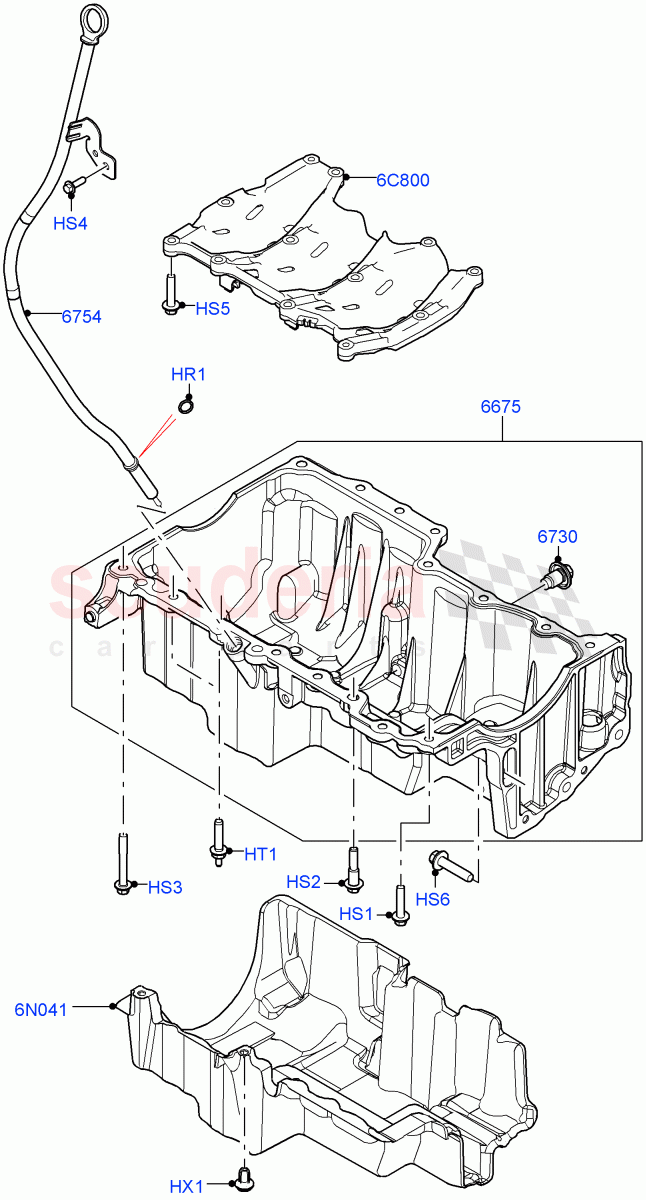

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR074127	O-RING	$4.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073676	SCREW	$2.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073677	SCREW	$3.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074137	SCREW	$1.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073635	SCREW	$2.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073724	SCREW	$1.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR089234	STUD	$4.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071767	RIVET - PLASTIC	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073674	PAN - ENGINE OIL	$849.46	To Order
	LR087669	PAN - ENGINE OIL	$529.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154091	PLUG - OIL DRAIN	$13.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073668	TUBE - OIL LEVEL INDICATOR	$100.44	To Order
	LR080734	TUBE - OIL LEVEL INDICATOR	$53.26	To Order
	LR094534	TUBE - OIL LEVEL INDICATOR	$50.31	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR073634	TRAY - WINDAGE	$469.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084314	INSULATOR - OIL SUMP	$53.55	To Order
	LR124586	INSULATOR - OIL SUMP	$108.66	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR074127	O-RING	LR074127 O-RING 11.5 x 2 mm / From: GH000001	$4.96	1
HS1	LR073676	SCREW	LR073676 SCREW M8 x 35mm / From: GH000001	$2.26	13
HS2	LR073677	SCREW	LR073677 SCREW M8 x 42mm / From: GH000001	$3.30	2
HS3	LR074137	SCREW	LR074137 SCREW M8 x 60mm / From: GH000001	$1.86	1
HS4	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM / From: GH000001	$2.23	1
HS5	LR073635	SCREW	LR073635 SCREW M6 x 35MM, Windage Tray / From: GH000001	$2.20	12
HS6	LR073724	SCREW	LR073724 SCREW M8 X 25MM, Timing Chain Lower Cover / From: GH000001	$1.96	1
HT1	LR089234	STUD	LR089234 STUD M8 X 35 + M6 X 12 / From: GH000001	$4.86	2
HX1	LR071767	RIVET - PLASTIC	LR071767 RIVET - PLASTIC 7.8-9.1 x 4.5-10.5, Insulator / From: GH000001	$2.92	3
6C800	LR073634	TRAY - WINDAGE	LR073634 TRAY - WINDAGE	$469.99	1
6N041	LR084314	INSULATOR - OIL SUMP	LR084314 INSULATOR - OIL SUMP From: GH000001 / To: KH348234	$53.55	1
6N041	LR124586	INSULATOR - OIL SUMP	LR124586 INSULATOR - OIL SUMP From: KH348235	$108.66	1
6675	LR073674	PAN - ENGINE OIL	LR073674 PAN - ENGINE OIL From: GH000001 / To: GH091212	$849.46	1
6675	LR087669	PAN - ENGINE OIL	LR087669 PAN - ENGINE OIL From: GH091213	$529.09	1
6730	LR154091	PLUG - OIL DRAIN	LR154091 PLUG - OIL DRAIN From: GH000001	$13.95	1
6754	LR073668	TUBE - OIL LEVEL INDICATOR	LR073668 TUBE - OIL LEVEL INDICATOR 2.0L I4 DSL MID DOHC AJ200 / From: GH000001 / To: GH999999	$100.44	1
6754	LR080734	TUBE - OIL LEVEL INDICATOR	LR080734 TUBE - OIL LEVEL INDICATOR 2.0L I4 DSL MID DOHC AJ200 / From: HH000001 / To: JH280315	$53.26	1
6754	LR094534	TUBE - OIL LEVEL INDICATOR	LR094534 TUBE - OIL LEVEL INDICATOR 2.0L I4 DSL HIGH DOHC AJ200 / From: JH000001 / To: JH296722	$50.31	1
6754	LR112106	TUBE - OIL LEVEL INDICATOR	LR112106 TUBE - OIL LEVEL INDICATOR 2.0L I4 DSL HIGH DOHC AJ200 / From: JH296723	$50.58	1
6754	LR125658	TUBE - OIL LEVEL INDICATOR	LR125658 TUBE - OIL LEVEL INDICATOR 2.0L I4 DSL MID DOHC AJ200 / From: JH280316	$54.46	1
