Name: Oil Cooler And Filter (2.0L I4 DSL MID DOHC AJ200, Itatiaia (Brazil), 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMGT000001)
Rating: 4.1 (1 reviews)

Oil Cooler And Filter (2.0L I4 DSL MID DOHC AJ200, Itatiaia (Brazil), 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Oil Cooler And Filter (2.0L I4 DSL MID DOHC AJ200, Itatiaia (Brazil), 2.0L I4 DSL HIGH DOHC AJ200)...

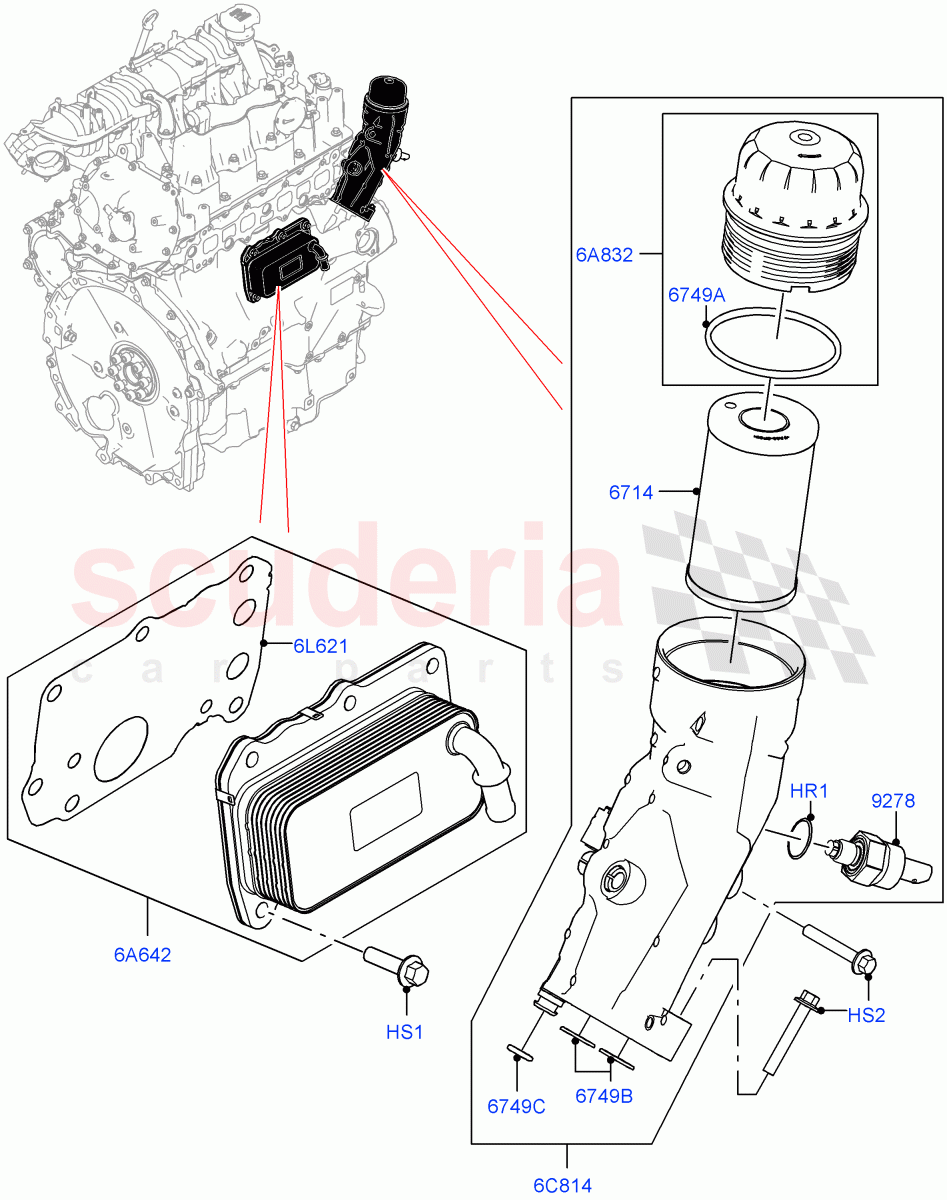

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR170968	O-RING	$4.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073736	SCREW	$1.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073673	SCREW	$2.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073669	KIT - ELEMENT & GASKET - OIL FILTER	$23.27	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073672	SWITCH - OIL PRESSURE	$53.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073868	O-RING	$4.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073869	SEAL	$3.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073870	SEAL	$3.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075630	OIL COOLER	$256.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073670	COVER - OIL FILTER	$66.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073667	OIL FILTER - ASSEMBLY	$187.84	To Order
	LR097159	OIL FILTER - ASSEMBLY	$220.70	To Order
	LR097160	OIL FILTER - ASSEMBLY	$205.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092056	GASKET - OIL COOLER	$21.76	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR170968	O-RING IN STOCK	LR170968 O-RING Sensor - Oil Pressure / From: GT000001 IN STOCK	$4.35	1
HS1	LR073736	SCREW	LR073736 SCREW M8 X 30MM / From: GT000001	$1.63	7
HS2	LR073673	SCREW	LR073673 SCREW M6 X 40MM / From: GT000001	$2.70	3
6A642	LR075630	OIL COOLER	LR075630 OIL COOLER From: GT000001	$256.70	1
6A832	LR073670	COVER - OIL FILTER	LR073670 COVER - OIL FILTER Element And Seal / From: GT000001	$66.37	1
6C814	LR073667	OIL FILTER - ASSEMBLY	LR073667 OIL FILTER - ASSEMBLY 2.0L I4 DSL MID DOHC AJ200 / From: GT000001 / To: GT999999	$187.84	1
6C814	LR097159	OIL FILTER - ASSEMBLY	LR097159 OIL FILTER - ASSEMBLY 2.0L I4 DSL MID DOHC AJ200 / From: HT000001	$220.70	1
6C814	LR097160	OIL FILTER - ASSEMBLY	LR097160 OIL FILTER - ASSEMBLY 2.0L I4 DSL HIGH DOHC AJ200 / From: JT000001	$205.95	1
6L621	LR092056	GASKET - OIL COOLER	LR092056 GASKET - OIL COOLER Oil Cooler / From: GT000001	$21.76	1
6714	LR073669	KIT - ELEMENT & GASKET - OIL FILTER IN STOCK	LR073669 KIT - ELEMENT & GASKET - OIL FILTER Element And Seal / From: GT000001 IN STOCK	$23.27	1
6749A	LR073868	O-RING	LR073868 O-RING Cover / From: GT000001	$4.13	1
6749B	LR073869	SEAL	LR073869 SEAL From: GT000001	$3.86	4
6749C	LR073870	SEAL	LR073870 SEAL Drain / From: GT000001	$3.73	1
9278	LR073672	SWITCH - OIL PRESSURE	LR073672 SWITCH - OIL PRESSURE From: GT000001	$53.78	1
