Side Trim (Luggage Compartment) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Side Trim (Luggage Compartment) ((V) FROMAA000001)

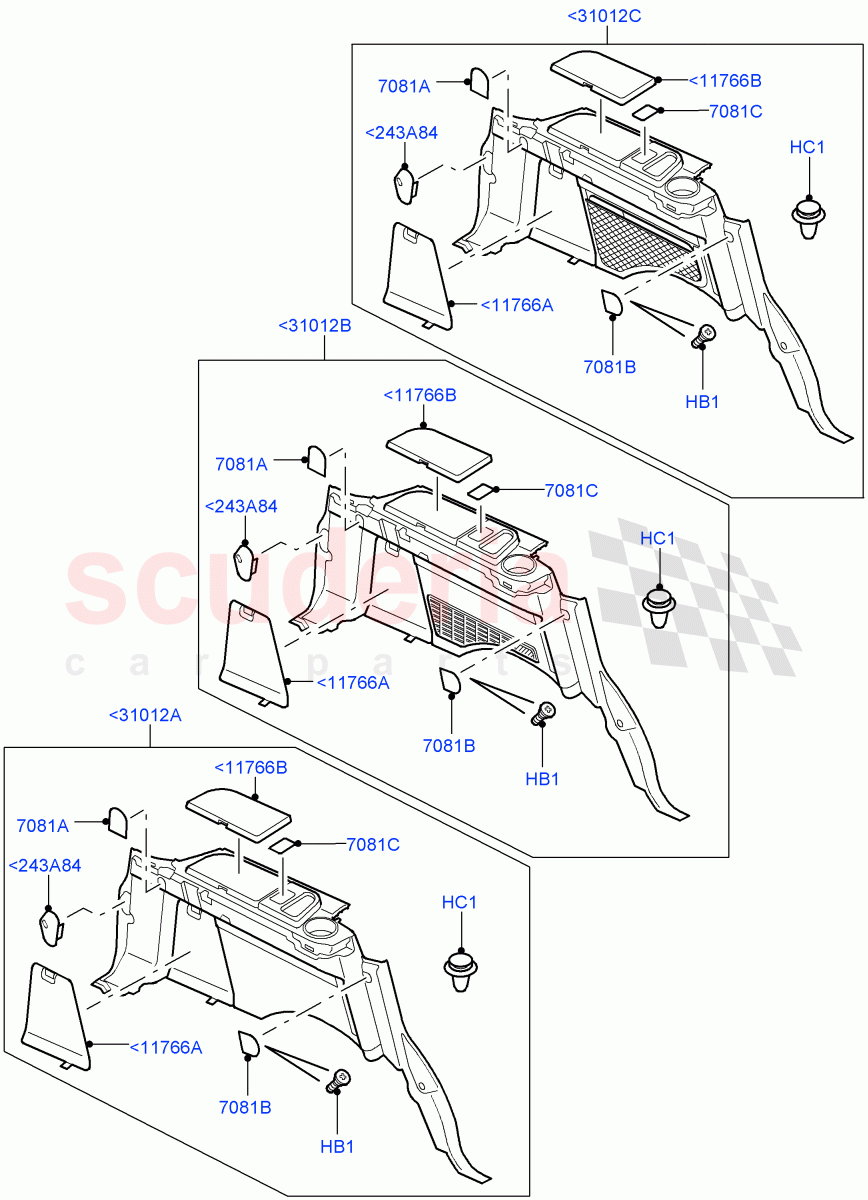

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011851	BOLT	Enquire	To Order
	DYG100640	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013135	CLIP - TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ERN500020PVJ	PLATE - BLANKING	Enquire	To Order
	LR027720	PLATE - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ERN500080PVJ	PLATE - BLANKING	Enquire	To Order
	ERN500090PVJ	PLATE - BLANKING	Enquire	To Order
	LR027723	PLATE - BLANKING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	ERN500010PVJ	PLATE - BLANKING	Enquire	To Order
	LR027719	PLATE - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ERS500020PVJ	LID - REAR SIDE TRIM	Enquire	To Order
	ERS500030PVJ	LID - REAR SIDE TRIM	Enquire	To Order
	LR027727	LID - REAR SIDE TRIM	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	ERS500040PVJ	LID - REAR SIDE TRIM	Enquire	To Order
	ERS500050PVJ	LID - REAR SIDE TRIM	Enquire	To Order
	LR027730	LID - REAR SIDE TRIM	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	ERK500200PVJ	COVER - STRIKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017962	TRIM - QUARTER	Enquire	To Order
	LR016534	TRIM - QUARTER	Enquire	To Order
	LR017964	TRIM - QUARTER	Enquire	To Order

...and 17 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR016698	TRIM - QUARTER	Enquire	To Order
	LR016697	TRIM - QUARTER	Enquire	To Order
	LR016702	TRIM - QUARTER	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR017963	TRIM - QUARTER	Enquire	To Order
	LR016535	TRIM - QUARTER	Enquire	To Order
	LR017965	TRIM - QUARTER	Enquire	To Order

...and 13 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<243A84	ERK500200PVJ	COVER - STRIKER	ERK500200PVJ COVER - STRIKER Ebony Black, Striker / From: AA000001	-	2	Enquire
<11766A	ERS500020PVJ	LID - REAR SIDE TRIM	ERS500020PVJ LID - REAR SIDE TRIM I/P Facia Contrast - Ebony Black / RH, Ebony Black / From: AA000001	-	1	Enquire
<11766A	ERS500030PVJ	LID - REAR SIDE TRIM	ERS500030PVJ LID - REAR SIDE TRIM I/P Facia Contrast - Ebony Black / LH, Ebony Black / From: AA000001	-	1	Enquire
<11766A	LR027727	LID - REAR SIDE TRIM	LR027727 LID - REAR SIDE TRIM I/P Facia Contrast - Nutmeg/Almond / RH, Almond / From: AA000001	-	1	Enquire
<11766A	LR027729	LID - REAR SIDE TRIM	LR027729 LID - REAR SIDE TRIM I/P Facia Contrast - Nutmeg/Almond / LH, Almond / From: AA000001	-	1	Enquire
<11766B	ERS500040PVJ	LID - REAR SIDE TRIM	ERS500040PVJ LID - REAR SIDE TRIM I/P Facia Contrast - Ebony Black / RH, Ebony Black / From: AA000001	-	1	Enquire
<11766B	ERS500050PVJ	LID - REAR SIDE TRIM	ERS500050PVJ LID - REAR SIDE TRIM I/P Facia Contrast - Ebony Black / LH, Ebony Black / From: AA000001	-	1	Enquire
<11766B	LR027730	LID - REAR SIDE TRIM	LR027730 LID - REAR SIDE TRIM I/P Facia Contrast - Nutmeg/Almond / RH, Almond / From: AA000001	-	1	Enquire
<11766B	LR027731	LID - REAR SIDE TRIM	LR027731 LID - REAR SIDE TRIM I/P Facia Contrast - Nutmeg/Almond / LH, Almond / From: AA000001	-	1	Enquire
<31012A	LR017962	TRIM - QUARTER	LR017962 TRIM - QUARTER Headphone Sockets - Less Headphones, I/P Facia Contrast - Ebony Black, Less DVD Screen, With Loadspace Mouldings / RH / From: AA000001 / To: BA999999	-	1	Enquire
<31012A	LR016534	TRIM - QUARTER	LR016534 TRIM - QUARTER Headphone Sockets - Less Headphones, I/P Facia Contrast-Arabica/Almond, Less DVD Screen, With Loadspace Mouldings / RH / From: AA000001 / To: BA999999	-	1	Enquire
<31012A	LR017964	TRIM - QUARTER	LR017964 TRIM - QUARTER Hphn Sckts - Less Hphs 2nd/3rd Row, I/P Facia Contrast - Ebony Black, Less DVD Screen, With Loadspace Mouldings / RH, Includes Auxiliary Power Point / From: AA000001 / To: BA999999	-	1	Enquire
<31012A	LR016536	TRIM - QUARTER	LR016536 TRIM - QUARTER Hphn Sckts - Less Hphs 2nd/3rd Row, I/P Facia Contrast - Nutmeg/Almond, Less DVD Screen, With Loadspace Mouldings / RH, Includes Auxiliary Power Point / From: AA000001 / To: BA999999	-	1	Enquire
<31012A	LR016551	TRIM - QUARTER	LR016551 TRIM - QUARTER Hphn Sckts - Less Hphs 2nd/3rd Row, I/P Facia Contrast - Nutmeg/Almond, With Loadspace Mouldings, With Provision For DVD Screen / RH / From: AA000001 / To: AA516464	-	1	Enquire
<31012A	LR017967	TRIM - QUARTER	LR017967 TRIM - QUARTER Hphn Sckts - Less Hphs 2nd/3rd Row, I/P Facia Contrast - Ebony Black, With Loadspace Mouldings, With Provision For DVD Screen / RH / From: AA000001 / To: AA516464	-	1	Enquire
<31012A	LR017969	TRIM - QUARTER	LR017969 TRIM - QUARTER I/P Facia Contrast - Ebony Black, Less Headphones/Sockets - Rear, Less Rear Seat Climate Control, With 5 Seat Configuration, With Loadspace Mouldings / LH / From: AA000001 / To: AA516464	-	1	Enquire
<31012A	LR016693	TRIM - QUARTER	LR016693 TRIM - QUARTER Headphone Sockets - Less Headphones, I/P Facia Contrast-Arabica/Almond, Less Rear Seat Climate Control, With 5 Seat Configuration, With Loadspace Mouldings / LH / From: AA000001 / To: AA516464	-	1	Enquire
<31012A	LR017971	TRIM - QUARTER	LR017971 TRIM - QUARTER Hphn Sckts - Less Hphs 2nd/3rd Row, I/P Facia Contrast - Ebony Black, Less Rear Seat Climate Control, With Loadspace Mouldings / LH / From: AA000001 / To: BA999999	-	1	Enquire
<31012A	LR016696	TRIM - QUARTER	LR016696 TRIM - QUARTER Hphn Sckts - Less Hphs 2nd/3rd Row, I/P Facia Contrast-Arabica/Almond, Less Rear Seat Climate Control, With Loadspace Mouldings / LH / From: AA000001 / To: BA999999	-	1	Enquire
<31012A	LR019850	TRIM - QUARTER	LR019850 TRIM - QUARTER I/P Facia Contrast - Ebony Black, With Loadspace Mouldings, With Provision For DVD Screen / RH / From: AA516465 / To: BA999999	-	1	Enquire
<31012A	LR019851	TRIM - QUARTER	LR019851 TRIM - QUARTER I/P Facia Contrast-Arabica/Almond, With Loadspace Mouldings, With Provision For DVD Screen / RH / From: AA516465 / To: BA999999	-	1	Enquire
<31012A	LR029920	TRIM - LOAD COMPARTMENT - SIDE	LR029920 TRIM - LOAD COMPARTMENT - SIDE I/P Facia Contrast - Ebony Black, With Loadspace Mouldings / RH / From: CA000001	-	1	Enquire
<31012A	LR029921	TRIM - LOAD COMPARTMENT - SIDE	LR029921 TRIM - LOAD COMPARTMENT - SIDE I/P Facia Contrast-Arabica/Almond, With Loadspace Mouldings / RH / From: CA000001	-	1	Enquire
<31012A	LR017974	TRIM - QUARTER	LR017974 TRIM - QUARTER Headphone Sockets - Less Headphones, I/P Facia Contrast - Ebony Black, Less Rear Seat Climate Control, With 7 Seat Configuration, With Loadspace Mouldings / LH, Includes Auxiliary Power Point / From: AA000001 / To: AA516464	-	1	Enquire
<31012A	LR017974	TRIM - QUARTER	LR017974 TRIM - QUARTER I/P Facia Contrast - Ebony Black, Less Rear Seat Climate Control, With 2 Seat Configuration, With Loadspace Mouldings / LH, Includes Auxiliary Power Point / From: AA516465	-	1	Enquire
<31012A	LR016699	TRIM - QUARTER	LR016699 TRIM - QUARTER I/P Facia Contrast - Nutmeg/Almond, Less Headphones/Sockets - Rear, Less Rear Seat Climate Control, With 7 Seat Configuration, With Loadspace Mouldings / LH, Includes Auxiliary Power Point / From: AA000001 / To: AA516464	-	1	Enquire
<31012A	LR016699	TRIM - QUARTER	LR016699 TRIM - QUARTER I/P Facia Contrast - Nutmeg/Almond, Less Rear Seat Climate Control, With 2 Seat Configuration, With Loadspace Mouldings / LH, Includes Auxiliary Power Point / From: AA516465	-	1	Enquire
<31012A	LR017969	TRIM - QUARTER	LR017969 TRIM - QUARTER I/P Facia Contrast - Ebony Black, Less Rear Seat Climate Control, With 5 Seat Configuration, With Loadspace Mouldings / LH / From: AA516465	-	1	Enquire
<31012A	LR016693	TRIM - QUARTER	LR016693 TRIM - QUARTER I/P Facia Contrast-Arabica/Almond, Less Rear Seat Climate Control, With 5 Seat Configuration, With Loadspace Mouldings / LH / From: AA516465	-	1	Enquire
<31012B	LR016698	TRIM - QUARTER	LR016698 TRIM - QUARTER Hphn Sckts - Less Hphs 2nd/3rd Row, I/P Facia Contrast-Arabica/Almond, With 5 Seat Configuration, With Loadspace Mouldings, With Rear Seat Climate Control / LH, Includes Auxiliary Power Point / From: AA000001 / To: AA516464	-	1	Enquire
<31012B	LR016697	TRIM - QUARTER	LR016697 TRIM - QUARTER Headphone Sockets - Less Headphones, I/P Facia Contrast - Nutmeg/Almond, With 5 Seat Configuration, With Loadspace Mouldings, With Rear Seat Climate Control / LH / From: AA000001 / To: AA516464	-	1	Enquire
<31012B	LR016702	TRIM - QUARTER	LR016702 TRIM - QUARTER I/P Facia Contrast-Arabica/Almond, Less Headphones/Sockets - Rear, With 7 Seat Configuration, With Luggage Net, With Rear Seat Climate Control / LH, Includes Auxiliary Power Point / From: AA000001 / To: AA516464	-	1	Enquire
<31012B	LR017973	TRIM - QUARTER	LR017973 TRIM - QUARTER Hphn Sckts - Less Hphs 2nd/3rd Row, I/P Facia Contrast - Ebony Black, With 5 Seat Configuration, With Loadspace Mouldings, With Rear Seat Climate Control / LH, Includes Auxiliary Power Point / From: AA000001 / To: AA516464	-	1	Enquire
<31012B	LR017972	TRIM - QUARTER	LR017972 TRIM - QUARTER I/P Facia Contrast - Ebony Black, Less Headphones/Sockets - Rear, With 5 Seat Configuration, With Loadspace Mouldings, With Rear Seat Climate Control / LH / From: AA000001 / To: AA516464	-	1	Enquire
<31012B	LR017972	TRIM - QUARTER	LR017972 TRIM - QUARTER I/P Facia Contrast - Ebony Black, With 5 Seat Configuration, With Luggage Net, With Rear Seat Climate Control / LH / From: AA516465	-	1	Enquire
<31012B	LR016697	TRIM - QUARTER	LR016697 TRIM - QUARTER I/P Facia Contrast-Arabica/Almond, With 5 Seat Configuration, With Loadspace Mouldings, With Rear Seat Climate Control / LH / From: AA516465	-	1	Enquire
<31012B	LR017977	TRIM - QUARTER	LR017977 TRIM - QUARTER Headphone Sockets - Less Headphones, I/P Facia Contrast - Ebony Black, With 7 Seat Configuration, With Luggage Net, With Rear Seat Climate Control / LH, Includes Auxiliary Power Point / From: AA000001 / To: AA516464	-	1	Enquire
<31012B	LR017977	TRIM - QUARTER	LR017977 TRIM - QUARTER I/P Facia Contrast - Ebony Black, With 7 Seat Configuration, With Luggage Net, With Rear Seat Climate Control / LH, Includes Auxiliary Power Point / From: AA516465	-	1	Enquire
<31012B	LR016702	TRIM - QUARTER	LR016702 TRIM - QUARTER I/P Facia Contrast-Arabica/Almond, With 7 Seat Configuration, With Loadspace Mouldings, With Rear Seat Climate Control / LH, Includes Auxiliary Power Point / From: AA516465	-	1	Enquire
<31012C	LR017963	TRIM - QUARTER	LR017963 TRIM - QUARTER I/P Facia Contrast - Ebony Black, Less DVD Screen, Less Headphones/Sockets - Rear, With Luggage Net / RH / From: AA000001 / To: BA999999	-	1	Enquire
<31012C	LR016535	TRIM - QUARTER	LR016535 TRIM - QUARTER Headphone Sockets - Less Headphones, I/P Facia Contrast-Arabica/Almond, Less DVD Screen, With Cargo Net Kit (2) / RH / From: AA000001 / To: BA999999	-	1	Enquire
<31012C	LR017965	TRIM - QUARTER	LR017965 TRIM - QUARTER Hphn Sckts - Less Hphs 2nd/3rd Row, I/P Facia Contrast - Ebony Black, Less DVD Screen, With Cargo Net Kit (2) / RH / From: AA000001 / To: BA999999	-	1	Enquire
<31012C	LR016537	TRIM - QUARTER	LR016537 TRIM - QUARTER Hphn Sckts - Less Hphs 2nd/3rd Row, I/P Facia Contrast - Nutmeg/Almond, Less DVD Screen, With Luggage Net / RH / From: AA000001 / To: BA999999	-	1	Enquire
<31012C	LR017968	TRIM - QUARTER	LR017968 TRIM - QUARTER Hphn Sckts - Less Hphs 2nd/3rd Row, I/P Facia Contrast - Ebony Black, With Cargo Net Kit (2), With Provision For DVD Screen / RH / From: AA000001 / To: AA516464	-	1	Enquire
<31012C	LR016553	TRIM - QUARTER	LR016553 TRIM - QUARTER Hphn Sckts - Less Hphs 2nd/3rd Row, I/P Facia Contrast - Nutmeg/Almond, With Cargo Net Kit (2), With Provision For DVD Screen / RH / From: AA000001 / To: AA516464	-	1	Enquire
<31012C	LR017970	TRIM - QUARTER	LR017970 TRIM - QUARTER I/P Facia Contrast - Ebony Black, Less Headphones/Sockets - Rear, Less Rear Seat Climate Control, With 5 Seat Configuration, With Cargo Net Kit (2) / LH / From: AA000001	-	1	Enquire
<31012C	LR016694	TRIM - QUARTER	LR016694 TRIM - QUARTER I/P Facia Contrast-Arabica/Almond, Less Headphones/Sockets - Rear, Less Rear Seat Climate Control, With 5 Seat Configuration, With Cargo Net Kit (2) / LH / From: AA000001	-	1	Enquire
<31012C	LR017975	TRIM - QUARTER	LR017975 TRIM - QUARTER Hphn Sckts - Less Hphs 2nd/3rd Row, I/P Facia Contrast - Ebony Black, Less Rear Seat Climate Control, With Cargo Net Kit (2) / LH, Includes Auxiliary Power Point / From: AA000001	-	1	Enquire
<31012C	LR016700	TRIM - QUARTER	LR016700 TRIM - QUARTER Hphn Sckts - Less Hphs 2nd/3rd Row, I/P Facia Contrast - Nutmeg/Almond, Less Rear Seat Climate Control, With Cargo Net Kit (2) / LH, Includes Auxiliary Power Point / From: AA000001	-	1	Enquire
<31012C	LR017976	TRIM - QUARTER	LR017976 TRIM - QUARTER Headphone Sockets - Less Headphones, I/P Facia Contrast - Ebony Black, Less Rear Seat Climate Control, With 7 Seat Configuration, With Cargo Net Kit (2) / LH, Includes Auxiliary Power Point / From: AA000001	-	1	Enquire
<31012C	LR016701	TRIM - QUARTER	LR016701 TRIM - QUARTER Headphone Sockets - Less Headphones, I/P Facia Contrast - Nutmeg/Almond, Less Rear Seat Climate Control, With 7 Seat Configuration, With Cargo Net Kit (2) / LH, Includes Auxiliary Power Point / From: AA000001	-	1	Enquire
<31012C	LR019853	TRIM - QUARTER	LR019853 TRIM - QUARTER I/P Facia Contrast - Nutmeg/Almond, With Luggage Net, With Provision For DVD Screen / RH / From: AA516465 / To: BA999999	-	1	Enquire
<31012C	LR019852	TRIM - QUARTER	LR019852 TRIM - QUARTER I/P Facia Contrast - Ebony Black, With Cargo Net Kit (2), With Provision For DVD Screen / RH / From: AA516465 / To: BA999999	-	1	Enquire
<31012C	LR029922	TRIM - LOAD COMPARTMENT - SIDE	LR029922 TRIM - LOAD COMPARTMENT - SIDE I/P Facia Contrast - Ebony Black, With Cargo Net Kit (2) / RH / From: CA000001	-	1	Enquire
<31012C	LR029923	TRIM - LOAD COMPARTMENT - SIDE	LR029923 TRIM - LOAD COMPARTMENT - SIDE I/P Facia Contrast-Arabica/Almond, With Cargo Net Kit (2) / RH / From: CA000001	-	1	Enquire
HB1	LR011851	BOLT	LR011851 BOLT M6 x 19MM, Rear Quarter Inner Panel, Shouldered / From: BA557639	-	2	Enquire
HB1	DYG100640	BOLT	DYG100640 BOLT M6 x 19MM, Rear Quarter Inner Panel, Shouldered / From: AA000001 / To: BA557638	-	2	Enquire
HC1	LR013135	CLIP - TRIM	LR013135 CLIP - TRIM 8.5 X 0.8 - 2.2 / From: AA000001	-	12	Enquire
7081A	ERN500020PVJ	PLATE - BLANKING	ERN500020PVJ PLATE - BLANKING I/P Facia Contrast - Ebony Black / LH, Auxiliary Power Point, Ebony Black / From: AA000001	-	1	Enquire
7081A	LR027720	PLATE - BLANKING	LR027720 PLATE - BLANKING I/P Facia Contrast - Nutmeg/Almond / LH, Almond, Auxiliary Power Point / From: AA000001	-	1	Enquire
7081B	ERN500080PVJ	PLATE - BLANKING	ERN500080PVJ PLATE - BLANKING I/P Facia Contrast - Ebony Black / RH, Ebony Black, Positive Fix / From: AA000001	-	1	Enquire
7081B	ERN500090PVJ	PLATE - BLANKING	ERN500090PVJ PLATE - BLANKING I/P Facia Contrast - Ebony Black / LH, Ebony Black, Positive Fix / From: AA000001	-	1	Enquire
7081B	LR027723	PLATE - BLANKING	LR027723 PLATE - BLANKING I/P Facia Contrast - Nutmeg/Almond / RH, Almond, Positive Fix / From: AA000001	-	1	Enquire
7081B	LR027724	PLATE - BLANKING	LR027724 PLATE - BLANKING I/P Facia Contrast - Nutmeg/Almond / LH, Almond, Positive Fix / From: AA000001	-	1	Enquire
7081C	ERN500010PVJ	PLATE - BLANKING	ERN500010PVJ PLATE - BLANKING I/P Facia Contrast - Ebony Black / Ebony Black, For Headphone Connector Socket / From: AA000001	-	1	Enquire
7081C	LR027719	PLATE - BLANKING	LR027719 PLATE - BLANKING I/P Facia Contrast - Nutmeg/Almond / Almond, For Headphone Connector Socket / From: AA000001	-	1	Enquire
