Load Compartment Trim (Commercial) (With 2 Seat Configuration) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Load Compartment Trim (Commercial) (With 2 Seat Configuration) ((V) FROMAA000001)

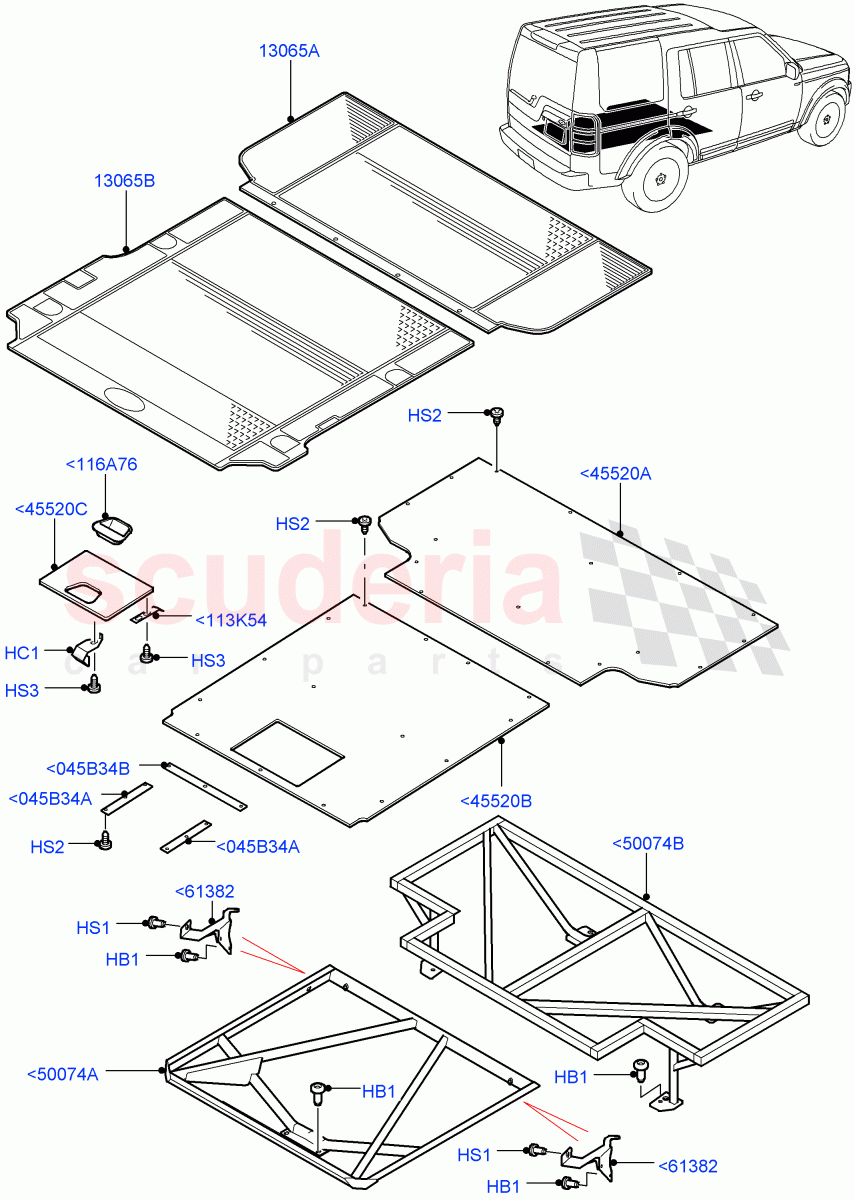

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	BTR2710	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006317	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108207L	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006293	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006313	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006229	LATCH - REAR SEAT CUSHION	Enquire	To Order
	LR006231	LATCH - REAR SEAT CUSHION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006400	CARPET - LUGGAGE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006401	RUBBER MAT - LOAD SPACE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006236	PLATE - FLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006316	HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008355	PANEL - FLOOR	Enquire	To Order
	LR025133	PANEL - FLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006292	PANEL - FLOOR	Enquire	To Order
	LR025134	PANEL - FLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006314	PANEL - FLOOR	Enquire	To Order
	LR025135	PANEL - FLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006228	RETAINER - MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017332	RETAINER - MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006308	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006311	BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<045B34A	LR006308	BRACKET	LR006308 BRACKET From: AA000001	-	2	Enquire
<045B34B	LR006311	BRACKET	LR006311 BRACKET From: AA000001	-	1	Enquire
<113K54	LR006236	PLATE - FLOOR	LR006236 PLATE - FLOOR From: AA000001	-	2	Enquire
<116A76	LR006316	HANDLE	LR006316 HANDLE From: AA000001	-	1	Enquire
<45520A	LR008355	PANEL - FLOOR	LR008355 PANEL - FLOOR From: AA000001 / To: AA551483	-	1	Enquire
<45520A	LR025133	PANEL - FLOOR	LR025133 PANEL - FLOOR From: BA551484	-	1	Enquire
<45520B	LR006292	PANEL - FLOOR	LR006292 PANEL - FLOOR From: AA000001 / To: AA551483	-	1	Enquire
<45520B	LR025134	PANEL - FLOOR	LR025134 PANEL - FLOOR From: BA551484	-	1	Enquire
<45520C	LR006314	PANEL - FLOOR	LR006314 PANEL - FLOOR From: AA000001 / To: AA551483	-	1	Enquire
<45520C	LR025135	PANEL - FLOOR	LR025135 PANEL - FLOOR From: BA551484	-	1	Enquire
<50074A	LR006228	RETAINER - MOULDING	LR006228 RETAINER - MOULDING From: AA000001	-	1	Enquire
<50074B	LR017332	RETAINER - MOULDING	LR017332 RETAINER - MOULDING From: AA000001	-	1	Enquire
<61382	LR006229	LATCH - REAR SEAT CUSHION	LR006229 LATCH - REAR SEAT CUSHION RH / From: AA000001	-	1	Enquire
<61382	LR006231	LATCH - REAR SEAT CUSHION	LR006231 LATCH - REAR SEAT CUSHION LH / From: AA000001	-	1	Enquire
HB1	BTR2710	BOLT	BTR2710 BOLT M10 X 1.5, Torx / From: AA000001	-	-	Enquire
HC1	LR006317	CLIP	LR006317 CLIP "Spring", Steel / From: AA000001	-	2	Enquire
HS1	FS108207L	SCREW	FS108207L SCREW M8 X 20MM / From: AA000001	-	2	Enquire
HS2	LR006293	SCREW	LR006293 SCREW 12 x 25MM, Self Tapping / From: AA000001	-	-	Enquire
HS3	LR006313	SCREW	LR006313 SCREW 12 x 8MM, Self Tapping / From: AA000001	-	6	Enquire
13065A	LR006400	CARPET - LUGGAGE COMPARTMENT	LR006400 CARPET - LUGGAGE COMPARTMENT Rubber / From: AA000001	-	1	Enquire
13065B	LR006401	RUBBER MAT - LOAD SPACE	LR006401 RUBBER MAT - LOAD SPACE Rubber / From: AA000001	-	1	Enquire
