Console - Floor (For Stowage Boxes And Lids) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Console - Floor (For Stowage Boxes And Lids) ((V) FROMAA000001)

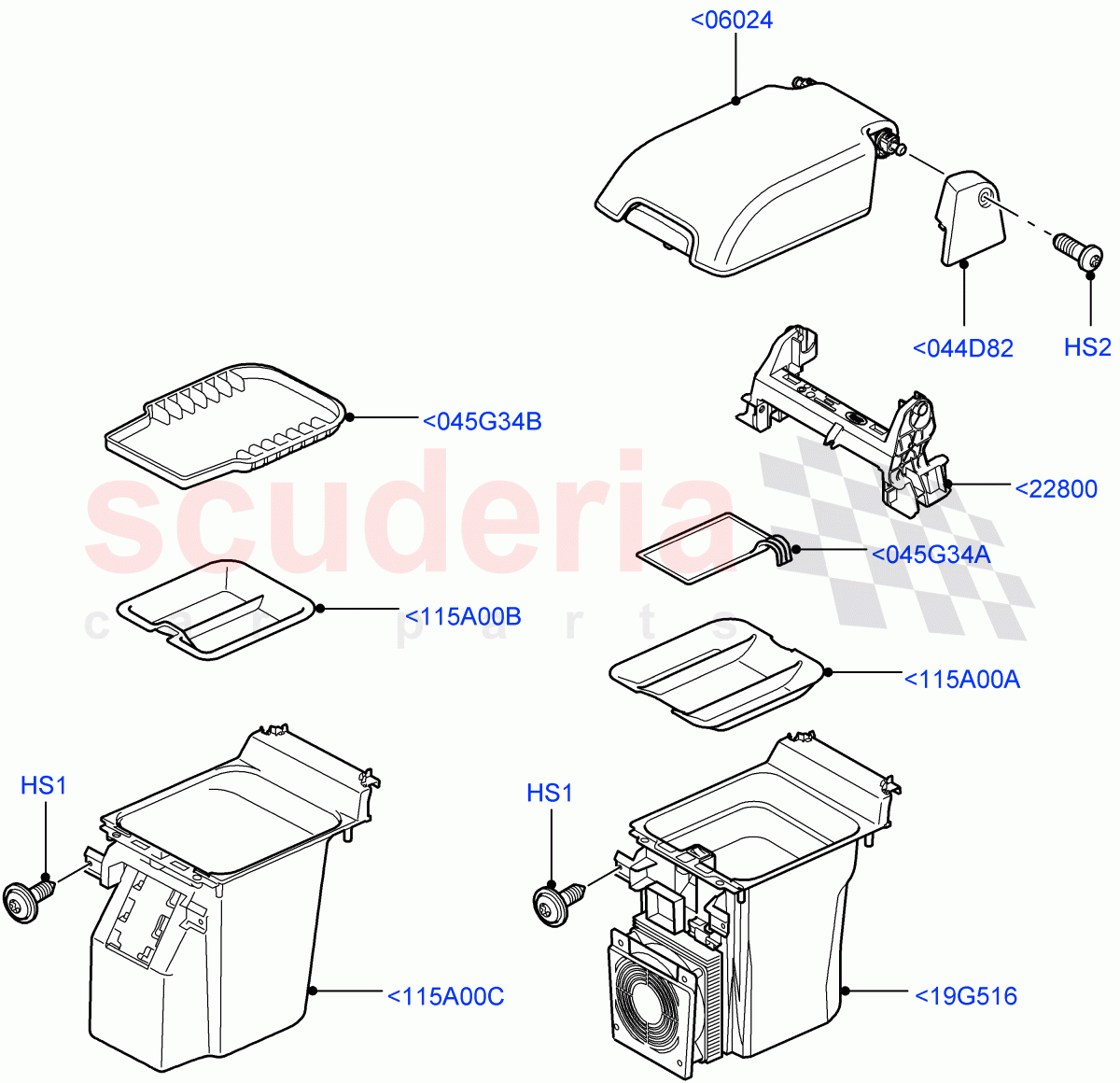

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR066957	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP500270	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013441	LID - STORAGE COMPARTMENT	Enquire	To Order
	LR013442	LID - STORAGE COMPARTMENT	Enquire	To Order
	LR013439	LID - STORAGE COMPARTMENT	Enquire	To Order

...and 45 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR056265	HINGE - STOWAGE BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FJV501080MVM	COVER - CONSOLE HINGE	Enquire	To Order
	FJV501090MVM	COVER - CONSOLE HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018342	COOL BOX - CONSOLE	Enquire	To Order
	LR021376	COOL BOX	Enquire	To Order
	LR021370	COOL BOX - CONSOLE	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR019744	MAT	Enquire	To Order
	LR021373	MAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FIF500042PVJ	MAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FHY500030PVJ	COMPARTMENT - STOWAGE	Enquire	To Order
	LR047448	COMPARTMENT - STOWAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FJJ500012PVJ	COMPARTMENT - STOWAGE	Enquire	To Order
	FJJ500012PVJ	COMPARTMENT - STOWAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FJG500042PVJ	BOX - STOWAGE	Enquire	To Order
	LR018341	BOX - STOWAGE	Enquire	To Order
	FJG500042PVJ	BOX - STOWAGE	Enquire	To Order

...and 2 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<19G516	LR018342	COOL BOX - CONSOLE	LR018342 COOL BOX - CONSOLE Centre Console - Double Lid/Cooler, With Premium Sound System / Ebony Black, With USB / From: AA000001 / To: AA526558	-	1	Enquire
<19G516	LR021376	COOL BOX	LR021376 COOL BOX Centre Console - Double Lid/Cooler, Standard Audio (Base) / Less USB / From: AA000001 / To: BA999999	-	1	Enquire
<19G516	LR021370	COOL BOX - CONSOLE	LR021370 COOL BOX - CONSOLE Centre Console - Double Lid/Cooler, With Premium Sound System / With USB / From: AA526559 / To: BA999999	-	1	Enquire
<19G516	LR021370	COOL BOX - CONSOLE	LR021370 COOL BOX - CONSOLE Centre Console - Double Lid/Cooler, Standard Audio (Base), With A/V Jack And USB / With USB / From: AA526559 / To: FA765654	-	1	Enquire
<19G516	LR075160	COOL BOX	LR075160 COOL BOX Centre Console - Double Lid/Cooler / Less USB / From: FA765655	-	1	Enquire
<19G516	LR076833	COOL BOX	LR076833 COOL BOX Centre Console - Double Lid/Cooler / With USB / From: FA765655	-	1	Enquire
<19G516	LR021370	COOL BOX - CONSOLE	LR021370 COOL BOX - CONSOLE Centre Console - Double Lid/Cooler, Premium Audio 1280 W / With USB / From: CA000001 / To: FA765654	-	1	Enquire
<19G516	LR021376	COOL BOX	LR021376 COOL BOX Centre Console - Double Lid/Cooler, Less A/V Jack, Standard Audio (Base) / Less USB / From: CA000001 / To: DA999999	-	1	Enquire
<19G516	LR021376	COOL BOX	LR021376 COOL BOX Centre Console - Double Lid/Cooler / Less USB / From: EA000001 / To: FA765654	-	1	Enquire
<044D82	FJV501080MVM	COVER - CONSOLE HINGE	FJV501080MVM COVER - CONSOLE HINGE RH, Hinge Cover, Noble / From: AA000001	-	1	Enquire
<044D82	FJV501090MVM	COVER - CONSOLE HINGE	FJV501090MVM COVER - CONSOLE HINGE LH, Hinge Cover, Noble / From: AA000001	-	1	Enquire
<045G34A	LR019744	MAT	LR019744 MAT Hi ICE Branded / For iPod Stowage / From: AA000001 / To: AA520261	-	1	Enquire
<045G34A	LR021373	MAT	LR021373 MAT With Premium Sound System / From: AA520262	-	1	Enquire
<045G34B	FIF500042PVJ	MAT	FIF500042PVJ MAT Console - With Closed Bin / Ebony Black / From: AA000001	-	1	Enquire
<115A00A	FHY500030PVJ	COMPARTMENT - STOWAGE	FHY500030PVJ COMPARTMENT - STOWAGE With Premium Sound System / Ebony Black / From: AA000001 / To: DA655381	-	1	Enquire
<115A00A	LR047448	COMPARTMENT - STOWAGE	LR047448 COMPARTMENT - STOWAGE Hi Line Audio System - 600 W, With A/V Jack And USB / Ebony Black / From: DA655382 / To: DA999999	-	1	Enquire
<115A00B	FJJ500012PVJ	COMPARTMENT - STOWAGE	FJJ500012PVJ COMPARTMENT - STOWAGE Less A/V Jack, Midline Sound System / Ebony Black / From: AA000001 / To: DA999999	-	1	Enquire
<115A00B	FJJ500012PVJ	COMPARTMENT - STOWAGE	FJJ500012PVJ COMPARTMENT - STOWAGE Ebony Black / From: EA000001	-	1	Enquire
<115A00C	FJG500042PVJ	BOX - STOWAGE	FJG500042PVJ BOX - STOWAGE Console - With Closed Bin, Midline Sound System / Ebony Black, Less USB / From: AA000001 / To: BA596846	-	1	Enquire
<115A00C	LR018341	BOX - STOWAGE	LR018341 BOX - STOWAGE Console - With Closed Bin, Hi ICE Branded / Ebony Black, With USB / From: AA000001 / To: DA699647	-	1	Enquire
<115A00C	FJG500042PVJ	BOX - STOWAGE	FJG500042PVJ BOX - STOWAGE Console - With Closed Bin, Less A/V Jack, Standard Audio (Base) / Ebony Black, Less USB / From: BA596847 / To: DA699647	-	1	Enquire
<115A00C	FJG500042PVJ	BOX - STOWAGE	FJG500042PVJ BOX - STOWAGE Console - With Closed Bin / Ebony Black, Less USB / From: DA699648	-	1	Enquire
<115A00C	LR018341	BOX - STOWAGE	LR018341 BOX - STOWAGE Console - With Closed Bin, Standard Audio (Base), With A/V Jack And USB / Ebony Black, With USB / From: BA596847 / To: DA699647	-	1	Enquire
<06024	LR013441	LID - STORAGE COMPARTMENT	LR013441 LID - STORAGE COMPARTMENT Console Top Plate - PVC, Ebony Black/Ebony Black Interior, With Premium Sound System / With USB / From: AA000001 / To: BA556089	-	1	Enquire
<06024	LR013442	LID - STORAGE COMPARTMENT	LR013442 LID - STORAGE COMPARTMENT Almond, Console Top Plate - PVC, With Premium Sound System / With USB / From: AA000001 / To: BA556089	-	1	Enquire
<06024	LR013439	LID - STORAGE COMPARTMENT	LR013439 LID - STORAGE COMPARTMENT Console Top Plate - Leather, Ebony Black/Ebony Black Interior, Hi ICE Branded / With USB / From: AA000001 / To: BA556089	-	1	Enquire
<06024	LR013440	LID - STORAGE COMPARTMENT	LR013440 LID - STORAGE COMPARTMENT Almond, Console Top Plate - Leather, With Premium Sound System / With USB / From: AA000001 / To: BA556089	-	1	Enquire
<06024	LR013437	LID - STORAGE COMPARTMENT	LR013437 LID - STORAGE COMPARTMENT Console Top Plate - PVC, Ivory, Midline Sound System / Less USB / From: AA000001 / To: BA556089	-	1	Enquire
<06024	LR013436	LID - STORAGE COMPARTMENT	LR013436 LID - STORAGE COMPARTMENT Almond, Console Top Plate - PVC, Midline Sound System / Less USB / From: AA000001 / To: BA556089	-	1	Enquire
<06024	LR013431	LID - STORAGE COMPARTMENT	LR013431 LID - STORAGE COMPARTMENT Console Top Plate - Leather, Ebony Black/Ebony Black Interior, Standard Audio (Base) / Less USB / From: AA000001 / To: BA556089	-	1	Enquire
<06024	LR013432	LID - STORAGE COMPARTMENT	LR013432 LID - STORAGE COMPARTMENT Almond, Console Top Plate - Leather, Midline Sound System / Less USB / From: AA000001 / To: BA556089	-	1	Enquire
<06024	LR025801	LID - STORAGE COMPARTMENT	LR025801 LID - STORAGE COMPARTMENT Console Top Plate - PVC, Ebony Black/Ebony Black Interior, Hi ICE Branded / With USB / From: BA556090 / To: BA999999	-	1	Enquire
<06024	LR025802	LID - STORAGE COMPARTMENT	LR025802 LID - STORAGE COMPARTMENT Almond, Console Top Plate - PVC, With Premium Sound System / With USB / From: BA556090 / To: BA999999	-	1	Enquire
<06024	LR025809	LID - STORAGE COMPARTMENT	LR025809 LID - STORAGE COMPARTMENT Console Top Plate - Leather, Ebony Black/Ebony Black Interior, Hi ICE Branded / With USB / From: BA556090 / To: BA999999	-	1	Enquire
<06024	LR025810	LID - STORAGE COMPARTMENT	LR025810 LID - STORAGE COMPARTMENT Almond, Console Top Plate - Leather, With Premium Sound System / With USB / From: BA556090 / To: BA999999	-	1	Enquire
<06024	LR025811	LID - STORAGE COMPARTMENT	LR025811 LID - STORAGE COMPARTMENT Console Top Plate - PVC, Ebony Black/Ebony Black Interior, Standard Audio (Base) / Less USB / From: BA556090 / To: BA999999	-	1	Enquire
<06024	LR025812	LID - STORAGE COMPARTMENT	LR025812 LID - STORAGE COMPARTMENT Almond, Console Top Plate - PVC, Midline Sound System / Less USB / From: BA556090 / To: BA999999	-	1	Enquire
<06024	LR025813	LID - STORAGE COMPARTMENT	LR025813 LID - STORAGE COMPARTMENT Console Top Plate - Leather, Ebony Black/Ebony Black Interior, Standard Audio (Base), With Lunar Contrast Stitching / Less USB / From: BA556090 / To: BA999999	-	1	Enquire
<06024	LR025814	LID - STORAGE COMPARTMENT	LR025814 LID - STORAGE COMPARTMENT Almond, Console Top Plate - Leather, Standard Audio (Base) / Less USB / From: BA556090 / To: BA999999	-	1	Enquire
<06024	LR025802	LID - STORAGE COMPARTMENT	LR025802 LID - STORAGE COMPARTMENT Almond, Console Top Plate - PVC, With A/V Jack And USB / With USB / From: CA000001 / To: CA651042	-	1	Enquire
<06024	LR025801	LID - STORAGE COMPARTMENT	LR025801 LID - STORAGE COMPARTMENT Console Top Plate - PVC, Ebony Black/Ebony Black Interior, With A/V Jack And USB / With USB / From: CA000001 / To: CA651042	-	1	Enquire
<06024	LR025812	LID - STORAGE COMPARTMENT	LR025812 LID - STORAGE COMPARTMENT Almond, Console Top Plate - PVC, Less A/V Jack / Less USB / From: CA000001 / To: CA651042	-	1	Enquire
<06024	LR025811	LID - STORAGE COMPARTMENT	LR025811 LID - STORAGE COMPARTMENT Console Top Plate - PVC, Ivory, Less A/V Jack / Less USB / From: CA000001 / To: CA651042	-	1	Enquire
<06024	LR025813	LID - STORAGE COMPARTMENT	LR025813 LID - STORAGE COMPARTMENT Console Top Plate - Leather, Ebony Black/Ebony Black Interior, Less A/V Jack, Standard Audio (Base) / Less USB / From: CA000001 / To: CA651187	-	1	Enquire
<06024	LR025809	LID - STORAGE COMPARTMENT	LR025809 LID - STORAGE COMPARTMENT Console Top Plate - Leather, Ebony Black/Ebony Black Interior, With A/V Jack And USB / With USB / From: CA000001 / To: CA651187	-	1	Enquire
<06024	LR032975	LID - STORAGE COMPARTMENT	LR032975 LID - STORAGE COMPARTMENT Almond, Console Top Plate - Leather, Premium Audio 1280 W, With A/V Jack And USB / With USB / From: BA000001 / To: CA651042	-	1	Enquire
<06024	LR032975	LID - STORAGE COMPARTMENT	LR032975 LID - STORAGE COMPARTMENT Arabica, Console Top Plate-Leather Stained, Premium Audio 1280 W, With A/V Jack And USB / With USB / From: CA000001 / To: CA651042	-	1	Enquire
<06024	LR032976	LID - STORAGE COMPARTMENT	LR032976 LID - STORAGE COMPARTMENT Arabica, Console Top Plate-Leather Stained, Less A/V Jack, Standard Audio (Base) / Less USB / From: CA000001 / To: CA651042	-	1	Enquire
<06024	LR032976	LID - STORAGE COMPARTMENT	LR032976 LID - STORAGE COMPARTMENT Almond, Console Top Plate-Leather Stained, Standard Audio (Base) / Less USB / From: BA000001 / To: CA651042	-	1	Enquire
<06024	LR029508	LID - STORAGE COMPARTMENT	LR029508 LID - STORAGE COMPARTMENT Console Top Plate - Leather, Ebony Black/Ebony Black Interior, Luxury Limited Edition, With A/V Jack And USB, With Ivory Contrast Stitching / With USB / From: CA000001 / To: DA000001	-	1	Enquire
<06024	LR044049	LID - STORAGE COMPARTMENT	LR044049 LID - STORAGE COMPARTMENT Console Top Plate - Leather, Ebony Black/Ebony Black Interior, Less A/V Jack, Standard Audio (Base) / Less USB / From: CA651188 / To: DA999999	-	1	Enquire
<06024	LR044043	DOOR - GLOVE COMPARTMENT	LR044043 DOOR - GLOVE COMPARTMENT Arabica, Console Top Plate - PVC, With A/V Jack And USB / With USB / From: CA651043 / To: DA999999	-	1	Enquire
<06024	LR044203	DOOR - GLOVE COMPARTMENT	LR044203 DOOR - GLOVE COMPARTMENT Console Top Plate - PVC, Ivory, Less A/V Jack, Standard Audio (Base) / Less USB / From: CA651043 / To: DA999999	-	1	Enquire
<06024	LR044044	DOOR - GLOVE COMPARTMENT	LR044044 DOOR - GLOVE COMPARTMENT Almond, Console Top Plate - PVC, Less A/V Jack / Less USB / From: CA651043 / To: DA999999	-	1	Enquire
<06024	LR045351	DOOR - GLOVE COMPARTMENT	LR045351 DOOR - GLOVE COMPARTMENT Almond, Console Top Plate-Leather Stained, Less A/V Jack, Midline Sound System / Less USB / From: CA651043 / To: DA699646	-	1	Enquire
<06024	LR044202	DOOR - GLOVE COMPARTMENT	LR044202 DOOR - GLOVE COMPARTMENT Console Top Plate - PVC, Ebony Black/Ebony Black Interior, Hi Line Audio System - 600 W, With A/V Jack And USB / With USB / From: CA651043 / To: DA999999	-	1	Enquire
<06024	LR030706	LID - STORAGE COMPARTMENT	LR030706 LID - STORAGE COMPARTMENT Console Top Plate - Leather, Ebony Black/Ebony Black Interior, Less A/V Jack, Standard Audio (Base) / Less USB / From: CA651188 / To: CA999999	-	1	Enquire
<06024	LR030704	DOOR - STOWAGE BOX	LR030704 DOOR - STOWAGE BOX Console Top Plate - Leather, Ebony Black/Ebony Black Interior, With A/V Jack And USB, With Lunar Contrast Stitching / With USB / From: CA651188 / To: CA999999	-	1	Enquire
<06024	LR030633	DOOR - GLOVE COMPARTMENT	LR030633 DOOR - GLOVE COMPARTMENT Console Top Plate - Leather, Ivory, With A/V Jack And USB / With USB / From: DA000001 / To: DA999999	-	1	Enquire
<06024	LR044049	LID - STORAGE COMPARTMENT	LR044049 LID - STORAGE COMPARTMENT Console Top Plate - Leather, Ivory / From: EA000001	-	1	Enquire
<06024	LR059609	LID - STORAGE COMPARTMENT	LR059609 LID - STORAGE COMPARTMENT Cirrus Contrast Stitching, Console Top Plate - Leather, Ebony Black/Ebony Black Interior / From: EA000001 / To: EA999999	-	1	Enquire
<06024	LR059610	LID - STORAGE COMPARTMENT	LR059610 LID - STORAGE COMPARTMENT Cirrus, Console Top Plate - Leather / From: EA000001 / To: EA999999	-	1	Enquire
<06024	LR074191	LID - STORAGE COMPARTMENT	LR074191 LID - STORAGE COMPARTMENT Almond, Console Top Plate - Leather / Less USB / From: GA000001	-	1	Enquire
<06024	LR045351	DOOR - GLOVE COMPARTMENT	LR045351 DOOR - GLOVE COMPARTMENT Almond, Console Top Plate-Leather Stained / From: DA699647	-	1	Enquire
<06024	LR044204	LID - STORAGE COMPARTMENT	LR044204 LID - STORAGE COMPARTMENT Almond, Console Top Plate - Leather, Standard Audio (Base), With A/V Jack And USB / With USB / From: CA651043 / To: DA999999	-	1	Enquire
<06024	LR044049	LID - STORAGE COMPARTMENT	LR044049 LID - STORAGE COMPARTMENT Console Top Plate - Leather, Ebony Black/Ebony Black Interior, With Lunar Contrast Stitching / From: EA000001 / To: EA999999	-	1	Enquire
<06024	LR044049	LID - STORAGE COMPARTMENT	LR044049 LID - STORAGE COMPARTMENT Console Top Plate - Leather, Ebony/Cirrus / From: FA000001	-	1	Enquire
<06024	LR044203	DOOR - GLOVE COMPARTMENT	LR044203 DOOR - GLOVE COMPARTMENT Console Top Plate - PVC, Ivory / From: EA000001 / To: FA999999	-	1	Enquire
<06024	LR044203	DOOR - GLOVE COMPARTMENT	LR044203 DOOR - GLOVE COMPARTMENT Console Top Plate - PVC, Ebony Black/Ebony Black Interior / From: EA000001	-	1	Enquire
<06024	LR044044	DOOR - GLOVE COMPARTMENT	LR044044 DOOR - GLOVE COMPARTMENT Arabica, Console Top Plate - PVC / From: EA000001 / To: FA999999	-	1	Enquire
<06024	LR044044	DOOR - GLOVE COMPARTMENT	LR044044 DOOR - GLOVE COMPARTMENT Almond, Console Top Plate - PVC / From: EA000001	-	1	Enquire
<22800	LR056265	HINGE - STOWAGE BOX	LR056265 HINGE - STOWAGE BOX Door Hinge, Stowage Box / From: AA000001	-	1	Enquire
HS1	LR066957	SCREW AND WASHER	LR066957 SCREW AND WASHER 4.2 x 16MM, Stowage Box / From: AA000001	-	2	Enquire
HS2	FYP500270	SCREW	FYP500270 SCREW Hinge, M8 X 23MM, Torx / From: AA000001	-	1	Enquire
