Heater Hoses (Rear) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Heater Hoses (Rear) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
JUP500050 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
JUP500060 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
JHH500020 CONNECTOR Enquire To Order
Photo Part No Description Price (each) Stock
JUP000040 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
JHB501790 HOSE - HEATER WATER Enquire To Order
LR070647 HOSE - HEATER WATER Enquire To Order
Photo Part No Description Price (each) Stock
JHB500054 HOSE - HEATER WATER Enquire To Order
JHB501830 Hose - Heater Water Enquire To Order
LR070646 HOSE - HEATER WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR013845 HOSE - HEATER WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR019109 HOSE - HEATER WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR019110 HOSE - HEATER WATER Enquire To Order
View All

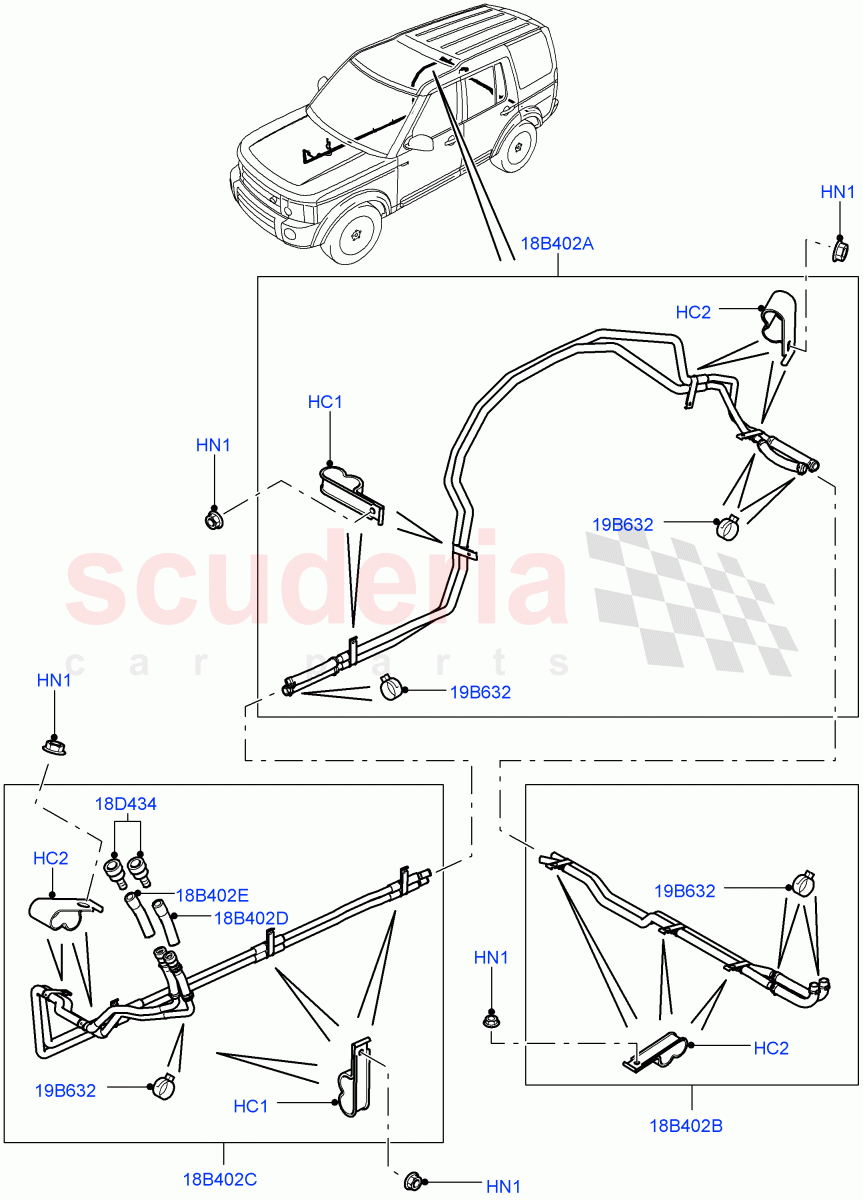

Heater Hoses (Rear) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 JUP500050
CLIP
With Rear Seat Climate Control / Double / From: AA000001 		- 4 Enquire
HC2 JUP500060
CLIP
With Rear Seat Climate Control / Double / From: AA000001 		- 7 Enquire
HN1 FN106046
NUT - HEX.
With Rear Seat Climate Control / Hexagonal Head, M6 / From: AA000001 		- 12 Enquire
18B402A JHB501790
HOSE - HEATER WATER
With Rear Seat Climate Control / Middle / From: AA000001 / To: FA999999 		- 1 Enquire
18B402A LR070647
HOSE - HEATER WATER
With Rear Seat Climate Control / Middle / From: GA000001 		- 1 Enquire
18B402B JHB500054
HOSE - HEATER WATER
With Rear Seat Climate Control / Rear, To Heater Matrix / From: AA000001 / To: BA559407 		- 1 Enquire
18B402B JHB501830
Hose - Heater Water
With Rear Seat Climate Control / Rear, To Heater Matrix / From: BA559408 / To: FA999999 		- 1 Enquire
18B402B LR070646
HOSE - HEATER WATER
With Rear Seat Climate Control / Rear, To Heater Matrix / From: GA000001 		- 1 Enquire
18B402C LR013845
HOSE - HEATER WATER
With Rear Seat Climate Control / Front / From: AA000001 		- 1 Enquire
18B402D LR019109
HOSE - HEATER WATER
With Rear Seat Climate Control / Feed / From: AA000001 		- 1 Enquire
18B402E LR019110
HOSE - HEATER WATER
With Rear Seat Climate Control / Return / From: AA000001 		- 1 Enquire
18D434 JHH500020
CONNECTOR
With Rear Seat Climate Control / From: AA000001 		- 2 Enquire
19B632 JUP000040
CLIP
With Rear Seat Climate Control / From: AA000001 		- 10 Enquire
