Air Conditioning System (Front) (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Air Conditioning System (Front) (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001)

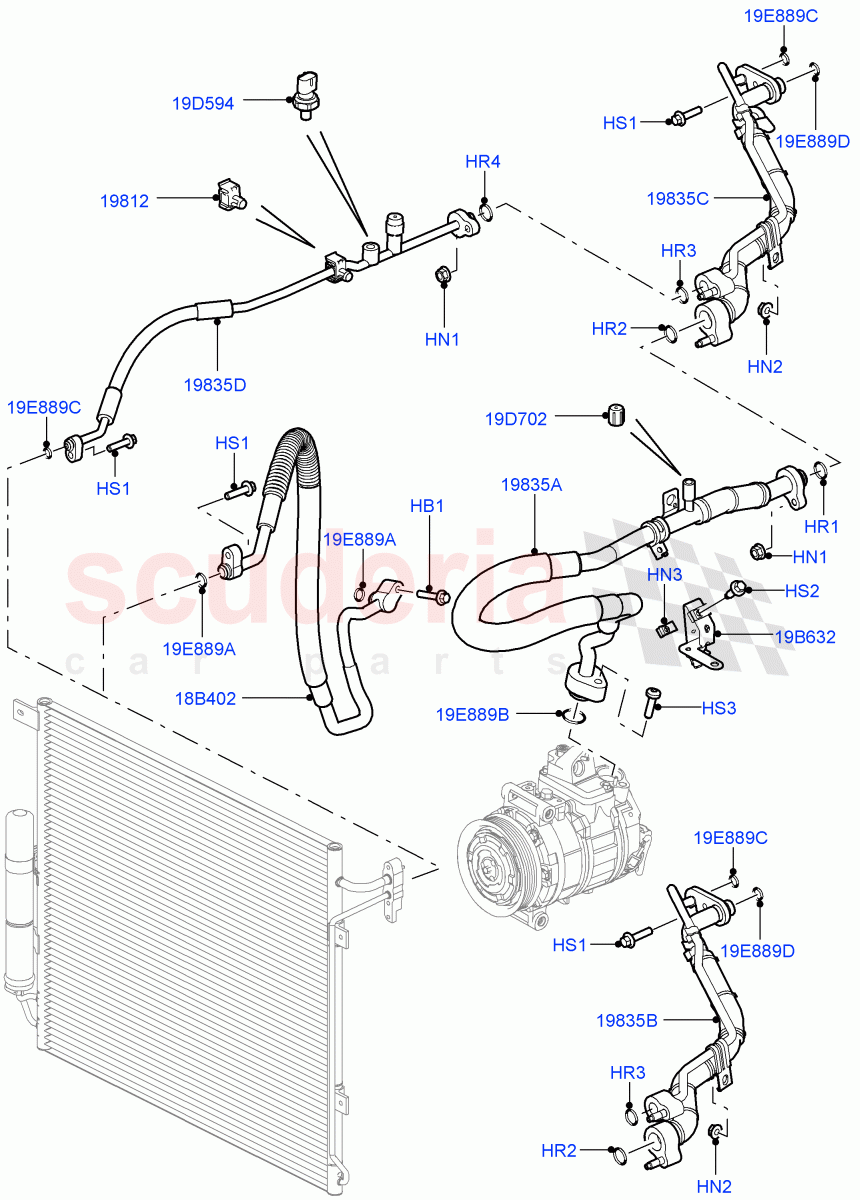

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FB106066	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN108046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500690	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002720	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001924	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002721	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002719	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106256	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JYP500110	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010849	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013868	HOSE - AIR CONDITIONING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013876	HOSE - AIR CONDITIONING	Enquire	To Order
	LR019676	HOSE - AIR CONDITIONING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014460	HOSE - AIR CONDITIONING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014461	HOSE - AIR CONDITIONING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013879	HOSE - AIR CONDITIONING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013851	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JTE000010	SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023246	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JUU500020	O-RING	Enquire	To Order
	LR031797	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JUU500040	O-RING	Enquire	To Order
	LR031798	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JUU500010	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JUU500030	O-RING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FB106066	BOLT	FB106066 BOLT M6 x 30MM / From: AA000001	-	1	Enquire
HN1	FN108046	NUT - HEX.	FN108046 NUT - HEX. Hexagonal Head, M8 / From: AA000001	-	2	Enquire
HN2	FN106046	NUT - HEX.	FN106046 NUT - HEX. Hexagonal Head, M6 / From: AA000001	-	1	Enquire
HN3	RYH500690	Nut	RYH500690 Nut U-Nut M6 X 0.8 - 4.0 / From: AA000001	-	1	Enquire
HR1	LR002720	O-RING	LR002720 O-RING 16.25 X 2.5MM / From: AA000001	-	1	Enquire
HR2	LR001924	O-RING	LR001924 O-RING 26.3 x 3mm, Orange / From: AA000001	-	1	Enquire
HR3	LR002721	O-RING	LR002721 O-RING 19.2 X 3MM / From: AA000001	-	1	Enquire
HR4	LR002719	O-RING	LR002719 O-RING 9.5 X 2.5MM / From: AA000001	-	1	Enquire
HS1	FS106256	SCREW	FS106256 SCREW M6 x 25MM / From: AA000001	-	3	Enquire
HS2	FS106166	SCREW	FS106166 SCREW Hexagonal Head, M6 X 16MM / From: AA000001	-	1	Enquire
HS3	JYP500110	SCREW	JYP500110 SCREW M8 x 30MM / From: AA000001	-	1	Enquire
18B402	LR013868	HOSE - AIR CONDITIONING	LR013868 HOSE - AIR CONDITIONING Compressor To Condenser, Includes O-Ring / From: AA000001	-	1	Enquire
19B632	LR013851	CLIP	LR013851 CLIP From: AA000001	-	1	Enquire
19D594	JTE000010	SWITCH	JTE000010 SWITCH Pressure / From: AA000001	-	1	Enquire
19D702	LR023246	CAP	LR023246 CAP From: AA000001	-	1	Enquire
19E889A	JUU500020	O-RING	JUU500020 O-RING From: AA000001 / To: BA584130	-	2	Enquire
19E889A	LR031797	O-RING	LR031797 O-RING 10.6 x 2.4MM / From: BA584131	-	2	Enquire
19E889B	JUU500040	O-RING	JUU500040 O-RING From: AA000001 / To: AA515353	-	1	Enquire
19E889B	LR031798	O-RING	LR031798 O-RING	-	1	Enquire
19E889C	JUU500010	O-RING	JUU500010 O-RING From: AA000001	-	2	Enquire
19E889D	JUU500030	O-RING	JUU500030 O-RING From: AA000001	-	1	Enquire
19812	LR010849	BRACKET	LR010849 BRACKET From: AA000001	-	1	Enquire
19835A	LR013876	HOSE - AIR CONDITIONING	LR013876 HOSE - AIR CONDITIONING Air Conditioning Evaporator To Compressor, Includes O-Ring / From: AA000001 / To: AA515353	-	1	Enquire
19835A	LR019676	HOSE - AIR CONDITIONING	LR019676 HOSE - AIR CONDITIONING Air Conditioning Evaporator To Compressor, Includes O-Ring / From: AA515354	-	1	Enquire
19835B	LR014460	HOSE - AIR CONDITIONING	LR014460 HOSE - AIR CONDITIONING Less Rear Seat Climate Control / Includes O-Ring, To Evaporator / From: AA000001	-	1	Enquire
19835C	LR014461	HOSE - AIR CONDITIONING	LR014461 HOSE - AIR CONDITIONING With Rear Seat Climate Control / Includes O-Ring, To Evaporator / From: AA000001	-	1	Enquire
19835D	LR013879	HOSE - AIR CONDITIONING	LR013879 HOSE - AIR CONDITIONING Condenser To Evaporator, Includes O-Ring, With Sensor / From: AA000001	-	1	Enquire
