Heater/Air Cond.internal Components (Rear) (With Rear Seat Climate Control) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Heater/Air Cond.Internal Components (Rear) (With Rear Seat Climate Control) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
ALU1844L BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR013420 HEATER Enquire To Order
LR043069 HEATER & EVAPORATOR UNIT Enquire To Order
LR066834 HEATER & EVAPORATOR UNIT Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
JGC500080 MOTOR Enquire To Order
Photo Part No Description Price (each) Stock
JGN500010 SWITCH - HEATER BLOWER Enquire To Order
Photo Part No Description Price (each) Stock
LR013425 VALVE - EVAPORATOR EXPANSION Enquire To Order
LR072517 VALVE - EVAPORATOR EXPANSION Enquire To Order
Photo Part No Description Price (each) Stock
JQB500020 EVAPORATOR Enquire To Order
LR043494 EVAPORATOR Enquire To Order
LR066866 EVAPORATOR Enquire To Order
Photo Part No Description Price (each) Stock
JEP500090 CORE - HEATER Enquire To Order
Photo Part No Description Price (each) Stock
JGK500050 WIRING Enquire To Order
Photo Part No Description Price (each) Stock
JTF500020 SENSOR - HEATER TEMPERATURE CONTROL Enquire To Order
Photo Part No Description Price (each) Stock
JWO500080 MOTOR Enquire To Order
LR043490 MOTOR - A/C ADJUSTING Enquire To Order
Photo Part No Description Price (each) Stock
JWO500060 MOTOR Enquire To Order
LR043489 MOTOR - A/C ADJUSTING Enquire To Order
View All

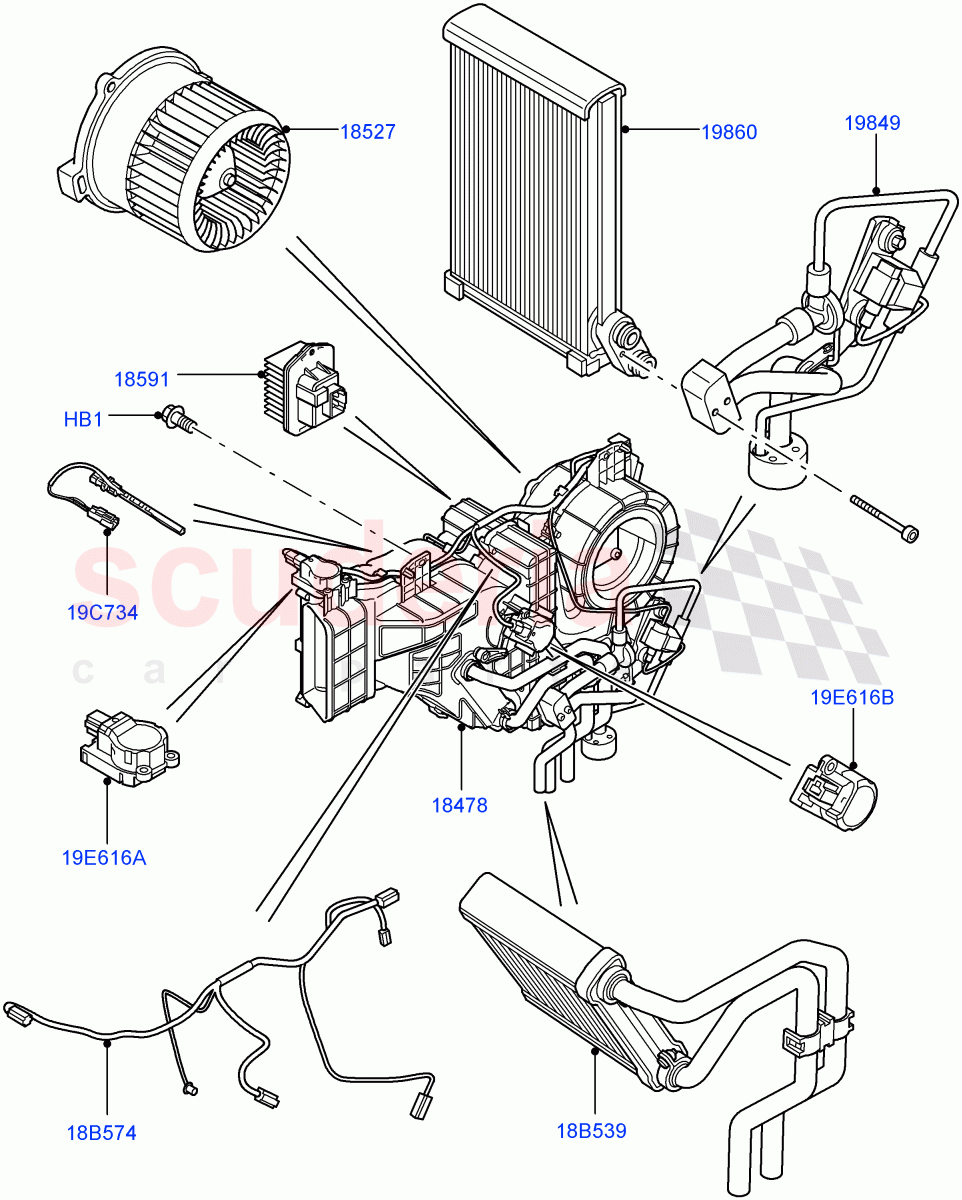

Heater/Air Cond.Internal Components (Rear) (With Rear Seat Climate Control) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 ALU1844L
BOLT
M6 x 25MM / From: AA000001 		- 3 Enquire
18B539 JEP500090
CORE - HEATER
From: AA000001 		- 1 Enquire
18B574 JGK500050
WIRING
From: AA000001 		- 1 Enquire
19C734 JTF500020
SENSOR - HEATER TEMPERATURE CONTROL
From: AA000001 		- 1 Enquire
19E616A JWO500080
MOTOR
Face/Footwell Stepper / From: AA000001 / To: CA613850 		- 1 Enquire
19E616A LR043490
MOTOR - A/C ADJUSTING
Face/Footwell Stepper / From: CA613851 		- 1 Enquire
19E616B JWO500060
MOTOR
Air Mix Left Stepper / From: AA000001 / To: CA613850 		- 1 Enquire
19E616B LR043489
MOTOR - A/C ADJUSTING
Air Mix Left Stepper / From: CA613851 		- 1 Enquire
18478 LR013420
HEATER
From: AA000001 / To: CA613850 		- 1 Enquire
18478 LR043069
HEATER & EVAPORATOR UNIT
From: CA613851 / To: EA720950 		- 1 Enquire
18478 LR066834
HEATER & EVAPORATOR UNIT
From: EA720951 / To: FA745572 		- 1 Enquire
18478 LR072073
HEATER & EVAPORATOR UNIT
From: FA745573 		- 1 Enquire
18527 JGC500080
MOTOR
From: AA000001 		- 1 Enquire
18591 JGN500010
SWITCH - HEATER BLOWER
From: AA000001 		- 1 Enquire
19849 LR013425
VALVE - EVAPORATOR EXPANSION
From: AA000001 / To: FA745571 		- 1 Enquire
19849 LR072517
VALVE - EVAPORATOR EXPANSION
From: FA745572 		- 1 Enquire
19860 JQB500020
EVAPORATOR
From: AA000001 / To: CA613850 		- 1 Enquire
19860 LR043494
EVAPORATOR
From: CA613851 / To: DA670983 		- 1 Enquire
19860 LR066866
EVAPORATOR
From: DA670984 		- 1 Enquire
