Electrical Wiring - Engine And Dash (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]

View All

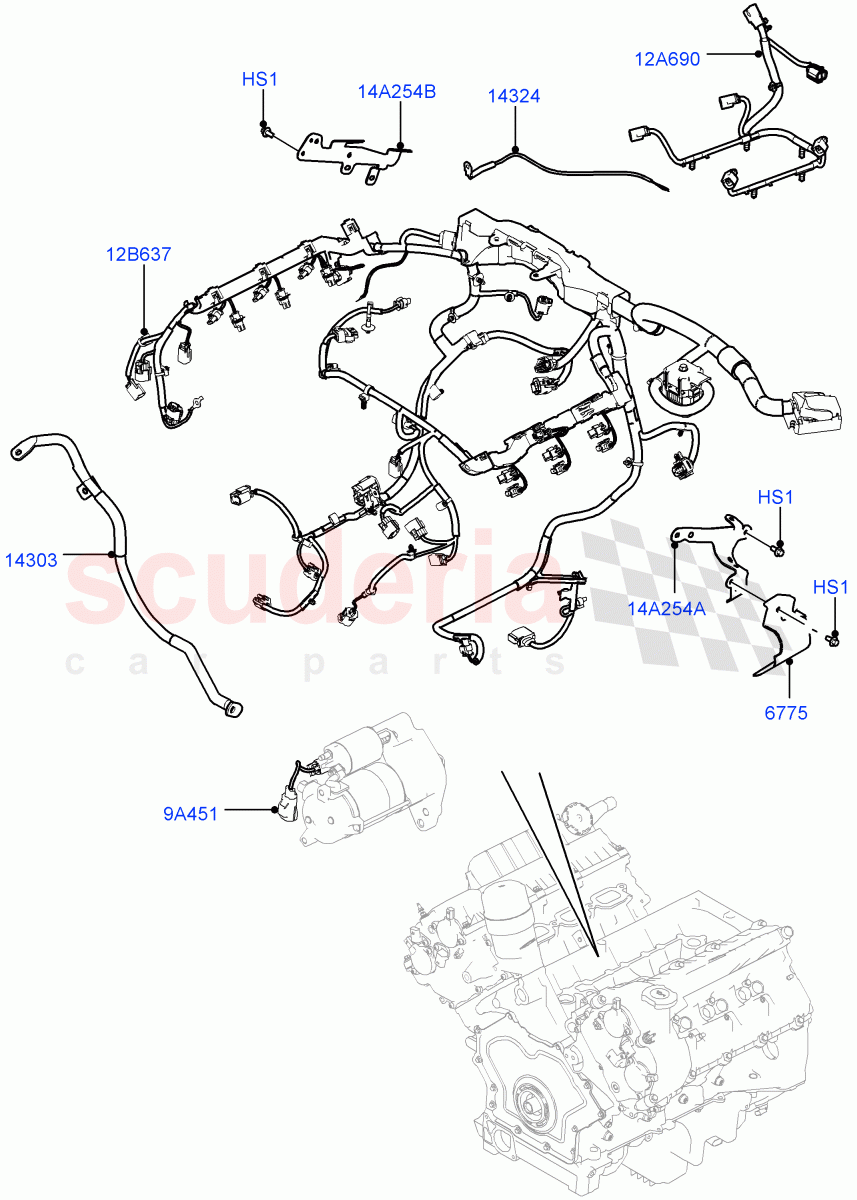

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Electrical Wiring - Engine And Dash (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FA106126	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011500	HEAT SHIELD - CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052408	CABLE - BATTERY NEGATIVE	Enquire	To Order
	LR052409	CABLE - BATTERY NEGATIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052768	WIRE - EARTH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041197	WIRING - STARTER MOTOR	Enquire	To Order
	LR043370	WIRING - STARTER MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048467	WIRE - KNOCK SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053312	WIRING - ENGINE	Enquire	To Order
	LR062718	WIRING - ENGINE	Enquire	To Order
	LR082617	WIRING - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052407	BRACKET - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052406	BRACKET - WIRING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	FA106126	SCREW	FA106126 SCREW Hexagonal Head, M6 x 12MM / From: EA000001	-	5	Enquire
9A451	LR041197	WIRING - STARTER MOTOR	LR041197 WIRING - STARTER MOTOR Starter - Stop/Start System / From: EA000001	-	1	Enquire
9A451	LR043370	WIRING - STARTER MOTOR	LR043370 WIRING - STARTER MOTOR Standard Electric Starter Motor / From: EA000001	-	1	Enquire
12A690	LR048467	WIRE - KNOCK SENSOR	LR048467 WIRE - KNOCK SENSOR Anti-Knock Sensor / From: EA000001	-	1	Enquire
12B637	LR053312	WIRING - ENGINE	LR053312 WIRING - ENGINE From: EA000001 / To: EA999999	-	1	Enquire
12B637	LR062718	WIRING - ENGINE	LR062718 WIRING - ENGINE From: FA000001 / To: FA776538	-	1	Enquire
12B637	LR082617	WIRING - ENGINE	LR082617 WIRING - ENGINE From: FA776539	-	1	Enquire
14A254A	LR052407	BRACKET - WIRING	LR052407 BRACKET - WIRING RH, Engine Harness / From: EA000001	-	1	Enquire
14A254B	LR052406	BRACKET - WIRING	LR052406 BRACKET - WIRING LH, Engine Harness / From: EA000001	-	1	Enquire
6775	LR011500	HEAT SHIELD - CONNECTOR	LR011500 HEAT SHIELD - CONNECTOR LH / From: EA000001	-	1	Enquire
14303	LR052408	CABLE - BATTERY NEGATIVE	LR052408 CABLE - BATTERY NEGATIVE LHD / Ground Cable, From Engine To Chassis / From: EA000001	-	1	Enquire
14303	LR052409	CABLE - BATTERY NEGATIVE	LR052409 CABLE - BATTERY NEGATIVE RHD / Ground Cable, From Engine To Chassis / From: EA000001	-	1	Enquire
14324	LR052768	WIRE - EARTH	LR052768 WIRE - EARTH Starter - Stop/Start System / Earth Lead To Body / From: EA000001	-	1	Enquire
