Rear Lamps ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]

View All

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Rear Lamps ((V) FROMAA000001)

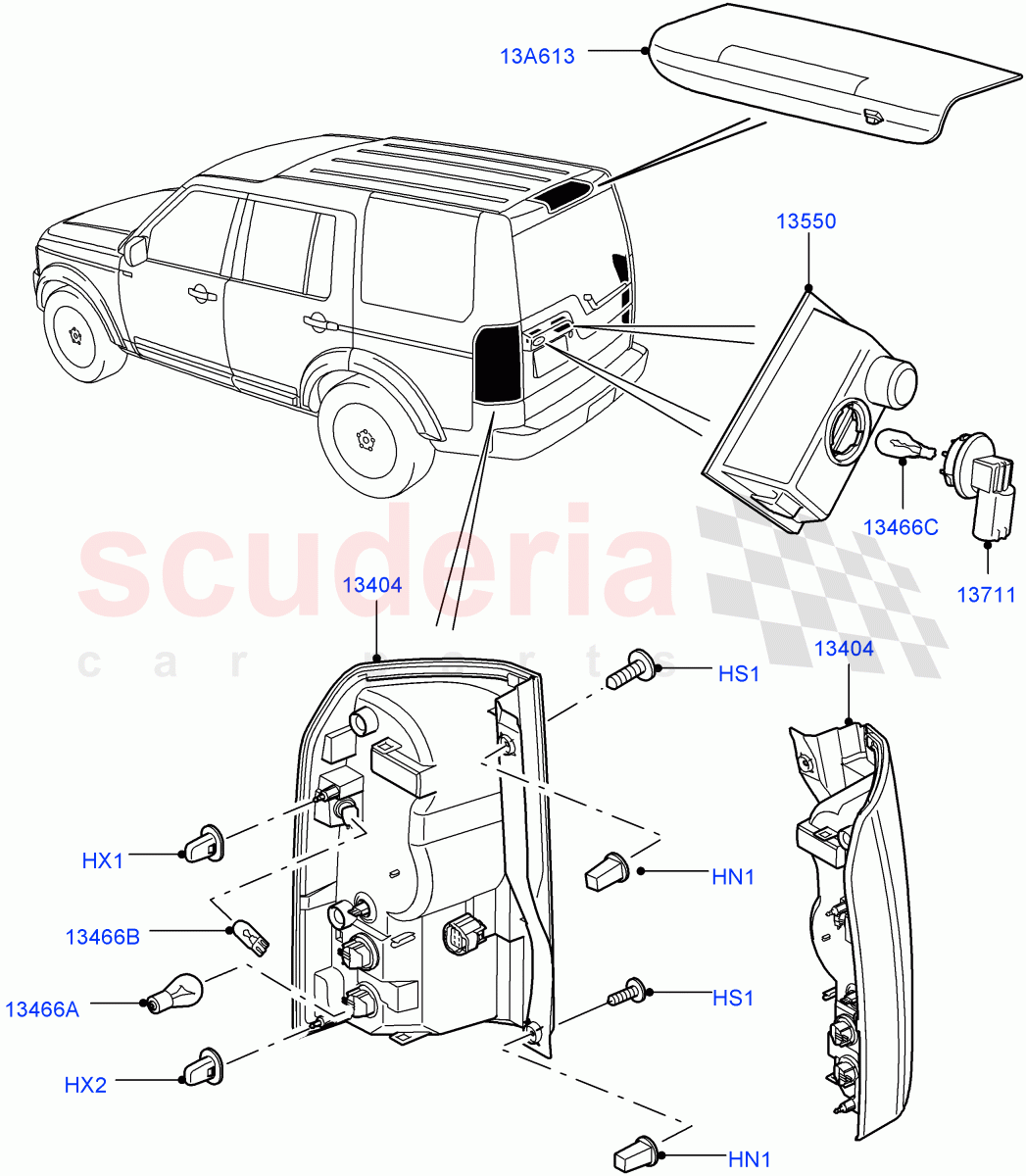

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYH500840	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DA610058	SCREW - PAN HEAD - SELF-TAPPING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	XZP500010	RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	XZP500020	RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014001	LAMP - REAR- STOP AND FLASHER	Enquire	To Order
	LR014003	LAMP	Enquire	To Order
	LR014002	LAMP - REAR- STOP AND FLASHER	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	XFC500040	LAMP - LICENCE PLATE - WITH BULB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	XBP100210	HOLDER - BULB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000863	BULB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000701	BULB - FLASHER LAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	XZQ000060	BULB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	XFG000062	LAMP - REAR - HIGH MOUNTED	Enquire	To Order
	LR029623	LAMP - REAR - HIGH MOUNTED	Enquire	To Order
	LR072856	LAMP - REAR - HIGH MOUNTED	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HN1	RYH500840	NUT	RYH500840 NUT 8.3MM, Rear Lamp / From: AA000001	-	4	Enquire
HS1	DA610058	SCREW - PAN HEAD - SELF-TAPPING	DA610058 SCREW - PAN HEAD - SELF-TAPPING M5 X 16MM, Rear Lamp, Self Tapping / From: AA000001	-	4	Enquire
HX1	XZP500010	RETAINER	XZP500010 RETAINER Upper / From: AA000001	-	2	Enquire
HX2	XZP500020	RETAINER	XZP500020 RETAINER Lower / From: AA000001	-	2	Enquire
13A613	XFG000062	LAMP - REAR - HIGH MOUNTED	XFG000062 LAMP - REAR - HIGH MOUNTED high mounted stop lamp / From: AA000001 / To: BA999999	-	1	Enquire
13A613	LR029623	LAMP - REAR - HIGH MOUNTED	LR029623 LAMP - REAR - HIGH MOUNTED high mounted stop lamp / From: CA000001 / To: GA787110	-	1	Enquire
13A613	LR072856	LAMP - REAR - HIGH MOUNTED	LR072856 LAMP - REAR - HIGH MOUNTED high mounted stop lamp / From: GA787111	-	1	Enquire
13404	LR014001	LAMP - REAR- STOP AND FLASHER	LR014001 LAMP - REAR- STOP AND FLASHER Less Side Marker Lamps / RH / From: AA000001 / To: CA754432	-	1	Enquire
13404	LR014003	LAMP	LR014003 LAMP Less Side Marker Lamps / LH / From: AA000001 / To: CA754432	-	1	Enquire
13404	LR014002	LAMP - REAR- STOP AND FLASHER	LR014002 LAMP - REAR- STOP AND FLASHER (+)"CDN/MEX/USA", With Side Marker Lamps / RH / From: AA000001 / To: CA754432	-	1	Enquire
13404	LR014004	LAMP	LR014004 LAMP (+)"CDN/MEX/USA", With Side Marker Lamps / LH / From: AA000001 / To: CA754432	-	1	Enquire
13404	LR036163	LAMP - REAR- STOP AND FLASHER	LR036163 LAMP - REAR- STOP AND FLASHER Less Side Marker Lamps / RH / From: CA754433 / To: DA999999	-	1	Enquire
13404	LR036164	LAMP - REAR- STOP AND FLASHER	LR036164 LAMP - REAR- STOP AND FLASHER (+)"CDN/MEX/USA", With Side Marker Lamps / RH / From: CA754433 / To: DA999999	-	1	Enquire
13404	LR036165	LAMP - REAR- STOP AND FLASHER	LR036165 LAMP - REAR- STOP AND FLASHER Less Side Marker Lamps / LH / From: CA754433 / To: DA999999	-	1	Enquire
13404	LR036166	LAMP - REAR- STOP AND FLASHER	LR036166 LAMP - REAR- STOP AND FLASHER (+)"CDN/MEX/USA", With Side Marker Lamps / LH / From: CA754433 / To: DA999999	-	1	Enquire
13404	LR162972	LAMP - REAR- STOP AND FLASHER	LR162972 LAMP - REAR- STOP AND FLASHER Less Side Marker Lamps / RH / From: EA000001	-	1	Enquire
13404	LR052396	LAMP - REAR- STOP AND FLASHER	LR052396 LAMP - REAR- STOP AND FLASHER (+)"CDN/MEX/USA", With Side Marker Lamps / RH / From: EA000001	-	1	Enquire
13404	LR052398	LAMP - REAR- STOP AND FLASHER	LR052398 LAMP - REAR- STOP AND FLASHER (+)"CDN/MEX/USA", With Side Marker Lamps / LH / From: EA000001	-	1	Enquire
13404	LR162974	LAMP - REAR- STOP AND FLASHER	LR162974 LAMP - REAR- STOP AND FLASHER Less Side Marker Lamps / LH / From: EA000001	-	1	Enquire
13466A	LR000863	BULB	LR000863 BULB 12V 21W, Fog Lamp, Reverse / From: AA000001	-	-	Enquire
13466B	LR000701	BULB - FLASHER LAMP	LR000701 BULB - FLASHER LAMP With Side Marker Lamps / 12V - 5W, Side Marker, W5W / From: AA000001	-	-	Enquire
13466C	XZQ000060	BULB	XZQ000060 BULB 12V-5W, Clear, Rear Licence Plate Lamp, W5W / From: AA000001	-	-	Enquire
13550	XFC500040	LAMP - LICENCE PLATE - WITH BULB	XFC500040 LAMP - LICENCE PLATE - WITH BULB From: AA000001	-	2	Enquire
13711	XBP100210	HOLDER - BULB	XBP100210 HOLDER - BULB Rear Licence Plate Lamp / From: AA000001	-	2	Enquire
