Speakers (Premium Audio 1280 W) ((V) Fromca000001)

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Speakers (Premium Audio 1280 W) ((V) FROMCA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FYC500040 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
RYH500840 NUT Enquire To Order
Photo Part No Description Price (each) Stock
FY106047 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
LR066957 SCREW AND WASHER Enquire To Order
Photo Part No Description Price (each) Stock
DA608064 Screw Enquire To Order
LR077604 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR010797 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR046742 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR029721 SPEAKER Enquire To Order
LR050923 SPEAKER Enquire To Order
LR057786 SPEAKER Enquire To Order
Photo Part No Description Price (each) Stock
LR018984 GRILLE - SPEAKER Enquire To Order
Photo Part No Description Price (each) Stock
LR029720 SPEAKER Enquire To Order
LR050924 SPEAKER Enquire To Order
LR057788 SPEAKER Enquire To Order
Photo Part No Description Price (each) Stock
LR029719 SPEAKER Enquire To Order
LR050925 SPEAKER Enquire To Order
Photo Part No Description Price (each) Stock
LR029808 SPEAKER Enquire To Order
LR050928 SPEAKER Enquire To Order
Photo Part No Description Price (each) Stock
LR029722 SUBWOOFER Enquire To Order
Photo Part No Description Price (each) Stock
FAU500060 SEAL Enquire To Order
Photo Part No Description Price (each) Stock
LR029723 SPEAKER Enquire To Order
View All

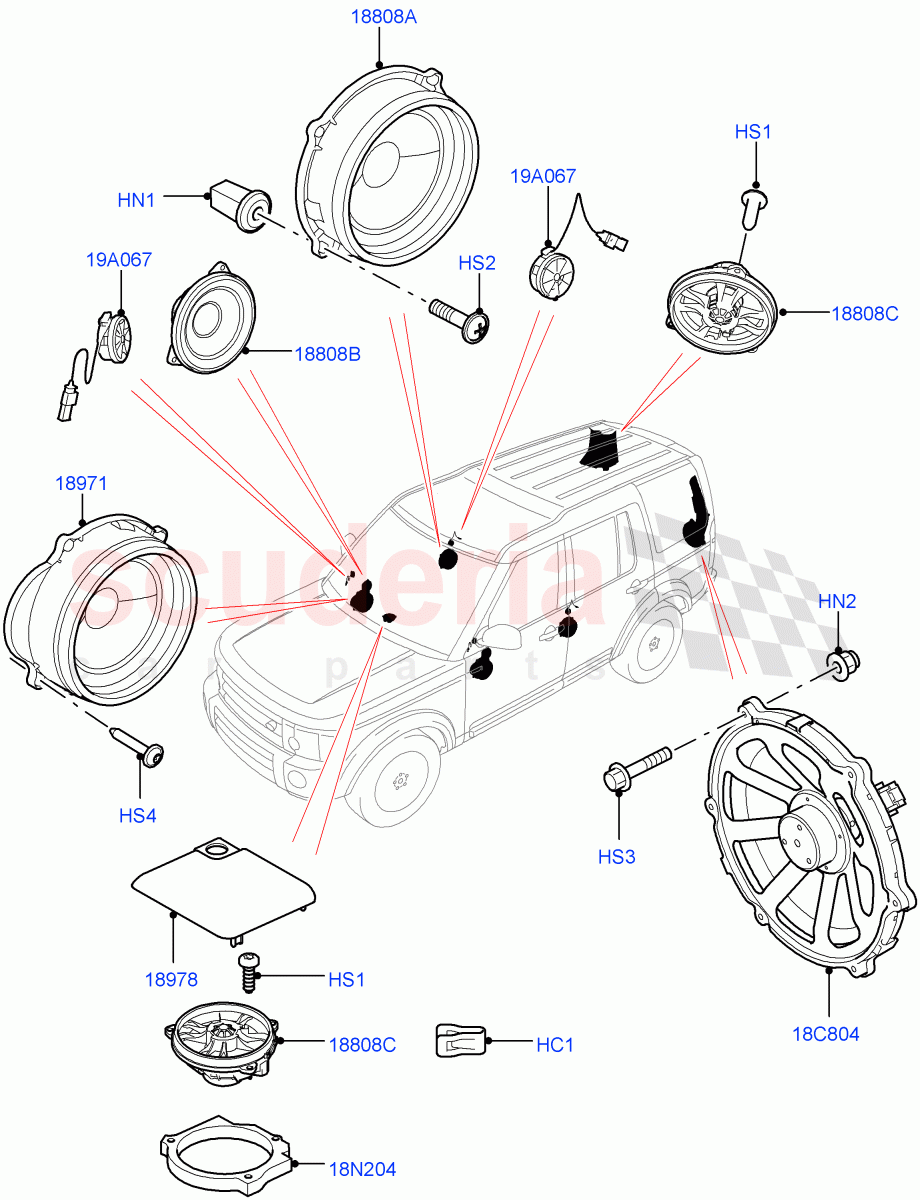

Speakers (Premium Audio 1280 W) ((V) FROMCA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 FYC500040
CLIP
Centre, Instrument Panel, Steel, With Speaker Grille / From: CA000001 		- 1 Enquire
HN1 RYH500840
NUT
M4, Plastic Nut / From: CA000001 		- 16 Enquire
HN2 FY106047
NUT - FLANGED
M6 / From: CA000001 		- 6 Enquire
HS1 LR066957
SCREW AND WASHER
4.2 x 16MM / From: CA000001 		- 9 Enquire
HS2 DA608064
Screw
No.8 X 19, Self Tapping / From: CA000001 / To: GA785491 		- 16 Enquire
HS2 LR077604
SCREW
No.8 X 19, Self Tapping / From: GA785492 		- 16 Enquire
HS3 LR010797
SCREW
M5 X 12MM, Torx / From: CA000001 		- 6 Enquire
HS4 LR046742
SCREW
4.2 x 25MM 		- - Enquire
18C804 LR029722
SUBWOOFER
Lower Tailgate / From: CA000001 		- 1 Enquire
18N204 FAU500060
SEAL
Centre, Located Behind Dash Fascia, To Speaker / From: CA000001 		- 1 Enquire
19A067 LR029723
SPEAKER
Front And Rear Door, Tweeter / From: CA000001 		- 4 Enquire
18808A LR029720
SPEAKER
Rear Door, Woofer / From: CA000001 / To: DA698237 		- 2 Enquire
18808A LR050924
SPEAKER
Rear Door, Woofer / From: EA000001 		- 2 Enquire
18808A LR057788
SPEAKER
Rear Door, Woofer / From: DA698238 / To: DA999999 		- 2 Enquire
18808B LR029719
SPEAKER
Front Door, Mid Range / From: CA000001 / To: DA999999 		- 2 Enquire
18808B LR050925
SPEAKER
Front Door, Mid Range / From: EA000001 		- 2 Enquire
18808C LR029808
SPEAKER
Surround Sound / From: CA000001 / To: DA999999 		- 3 Enquire
18808C LR050928
SPEAKER
Surround Sound / From: EA000001 		- 3 Enquire
18971 LR029721
SPEAKER
Front Door, Woofer / From: CA000001 / To: DA698237 		- 2 Enquire
18971 LR050923
SPEAKER
Front Door, Woofer / From: EA000001 		- 2 Enquire
18971 LR057786
SPEAKER
Front Door, Woofer / From: DA698238 / To: DA999999 		- 2 Enquire
18978 LR018984
GRILLE - SPEAKER
Ebony Black, Fascia Only / From: CA000001 		- 1 Enquire
