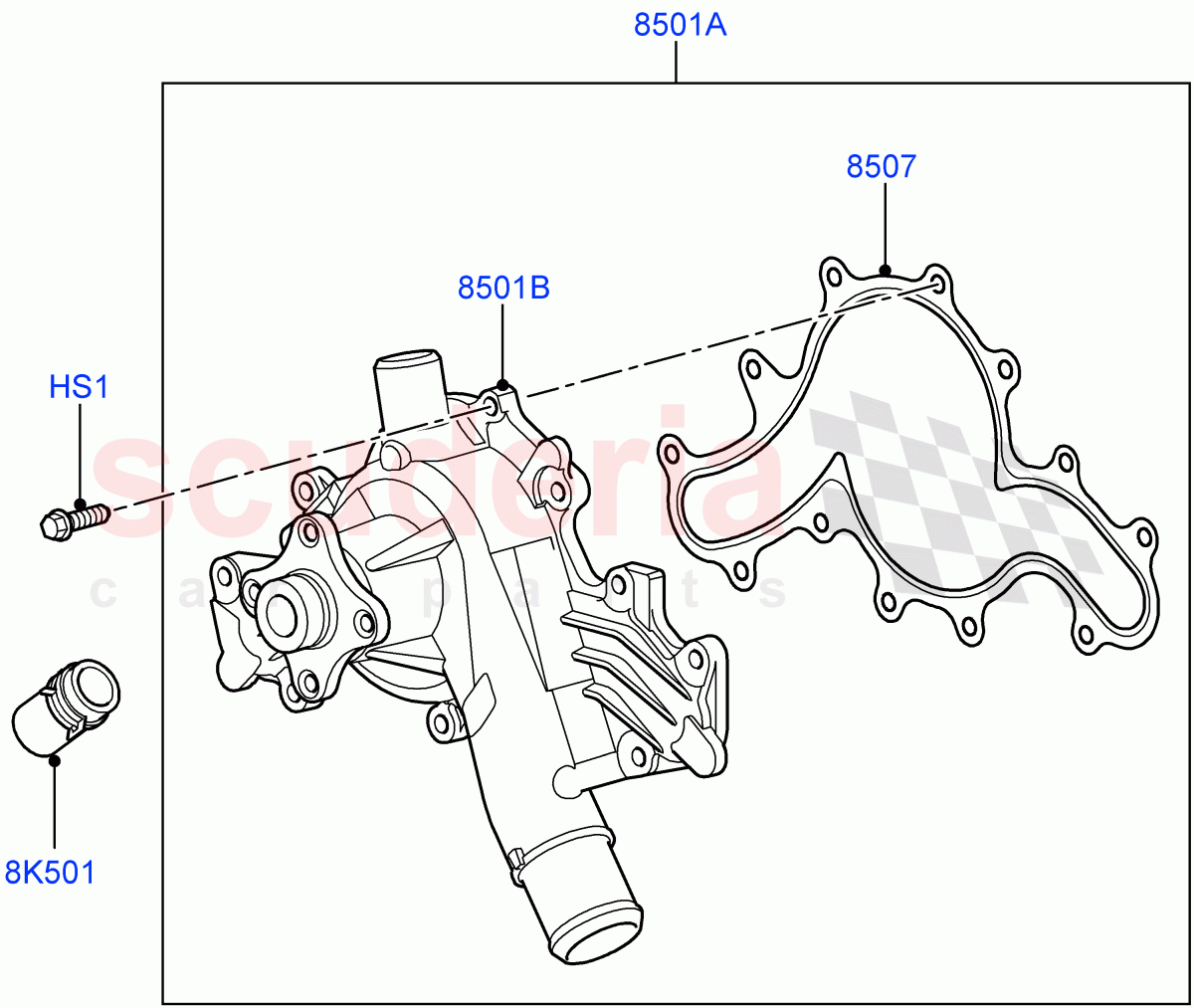

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4380670	SCREW	$0.73	To Order

Photo	Part No	Description	Price (each)	Stock
	1106473	GASKET - WATER PUMP	$9.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027547	PUMP - WATER	$240.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR026093	PUMP - WATER	$231.40	To Order

Photo	Part No	Description	Price (each)	Stock
	4585558	CAP	$2.40	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	4380670	SCREW	4380670 SCREW Hexagonal Head, M6 X 16MM / From: AA000001	$0.73	12
8K501	4585558	CAP	4585558 CAP From: AA000001	$2.40	1
8501A	LR027547	PUMP - WATER	LR027547 PUMP - WATER With Gasket / From: AA000001	$240.37	1
8501B	LR026093	PUMP - WATER	LR026093 PUMP - WATER Less Gasket / From: AA000001	$231.40	1
8507	1106473	GASKET - WATER PUMP	1106473 GASKET - WATER PUMP From: AA000001	$9.48	1
