Radiator/Coolant Overflow Container (Cologne V6 4.0 EFI (SOHC)) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]

View All

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Radiator/Coolant Overflow Container (Cologne V6 4.0 EFI (SOHC)) ((V) FROMAA000001)

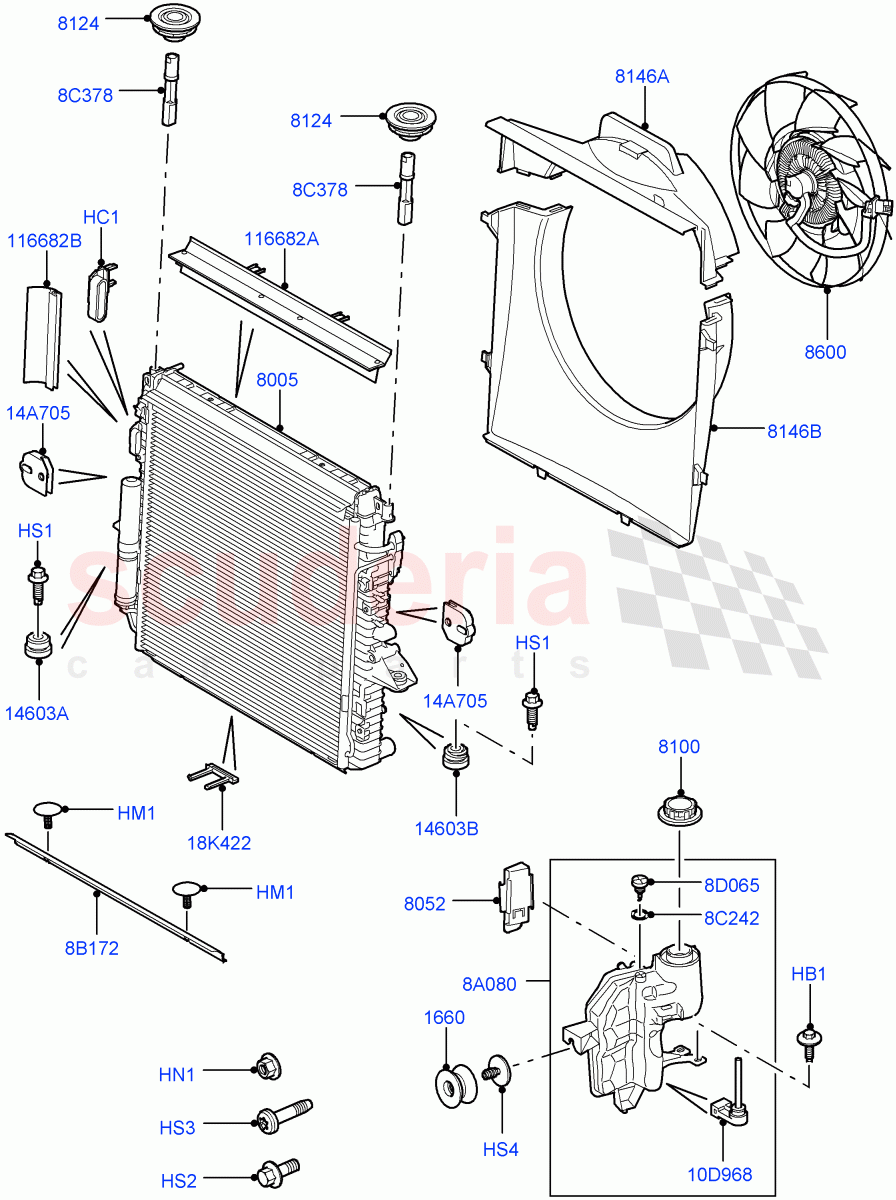

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	PYP500120	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IPN500010	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002185	PIN - FASTENING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AL608031	NUT - SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PYP000221	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106167L	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	MYP100500L	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AB608068	Screw	Enquire	To Order
	LR020269	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KGX500020	SPACER	Enquire	To Order
	LR015830	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021777	RADIATOR	Enquire	To Order
	PCC500630	RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCU500091	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR176861	CAP - OVERFLOW CONTAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PDI500012	INSULATOR - RADIATOR MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PGG500350	FAN	Enquire	To Order
	LR025966	MOTOR AND FAN - ENGINE COOLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PGK500180	SHROUD - RADIATOR FAN	Enquire	To Order
	PGK500043	SHROUD - RADIATOR FAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PGK500052	SHROUD - FAN	Enquire	To Order
	PGK500190	SHROUD - RADIATOR FAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013663	TANK - RADIATOR OVERFLOW	Enquire	To Order
	LR020367	TANK - RADIATOR OVERFLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCZ500010	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007315	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PDG500045	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007314	VALVE - BLEEDER SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCJ500030	SENSOR - COOLANT LEVEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCG500090	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCG500011	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCU500220	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PYC500080	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DHE500010	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PZB500020	SEAL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	PYP500120	BOLT	PYP500120 BOLT M6 X 20MM / From: AA000001	-	2	Enquire
HC1	IPN500010	CLIP	IPN500010 CLIP RH, Radiator Support, Upper / From: AA000001	-	1	Enquire
HM1	LR002185	PIN - FASTENING	LR002185 PIN - FASTENING 6.35 X 28.5 X 2-13.5MM, Push Pin / From: AA000001	-	2	Enquire
HN1	AL608031	NUT - SPRING	AL608031 NUT - SPRING Nut "U" Spring / From: AA000001	-	1	Enquire
HS1	PYP000221	SCREW AND WASHER	PYP000221 SCREW AND WASHER M8 X 25MM / From: AA000001	-	2	Enquire
HS2	FS106167L	SCREW	FS106167L SCREW M6 X 16MM / From: AA000001	-	1	Enquire
HS3	MYP100500L	SCREW	MYP100500L SCREW 6 X 26 / From: AA000001	-	1	Enquire
HS4	AB608068	Screw	AB608068 Screw 4.2 X 19MM / From: AA000001 / To: AA523459	-	1	Enquire
HS4	LR020269	SCREW	LR020269 SCREW 4.2 X 19MM / From: AA523460	-	1	Enquire
8A080	LR013663	TANK - RADIATOR OVERFLOW	LR013663 TANK - RADIATOR OVERFLOW With Sensor / From: AA000001 / To: AA520252	-	1	Enquire
8A080	LR020367	TANK - RADIATOR OVERFLOW	LR020367 TANK - RADIATOR OVERFLOW From: AA520253	-	1	Enquire
8B172	PCZ500010	SEAL	PCZ500010 SEAL Lower / From: AA000001	-	1	Enquire
8C242	LR007315	SEAL	LR007315 SEAL Bleeder Screw / From: AA000001	-	1	Enquire
8C378	PDG500045	PIN	PDG500045 PIN Top / From: AA000001	-	2	Enquire
8D065	LR007314	VALVE - BLEEDER SCREW	LR007314 VALVE - BLEEDER SCREW Bleeder Screw / From: AA000001	-	1	Enquire
10D968	PCJ500030	SENSOR - COOLANT LEVEL	PCJ500030 SENSOR - COOLANT LEVEL From: AA000001	-	1	Enquire
14A705	PCU500220	BRACKET	PCU500220 BRACKET From: AA000001	-	2	Enquire
18K422	PYC500080	CLIP	PYC500080 CLIP From: AA000001	-	1	Enquire
1660	KGX500020	SPACER	KGX500020 SPACER From: AA000001 / To: AA521655	-	1	Enquire
1660	LR015830	SPACER	LR015830 SPACER From: AA521656	-	1	Enquire
8005	LR021777	RADIATOR	LR021777 RADIATOR From: AA537585	-	1	Enquire
8005	PCC500630	RADIATOR	PCC500630 RADIATOR From: AA000001 / To: AA537584	-	1	Enquire
8052	PCU500091	BRACKET	PCU500091 BRACKET Expansion Reservoir Overflow / From: AA000001	-	1	Enquire
8100	LR176861	CAP - OVERFLOW CONTAINER	LR176861 CAP - OVERFLOW CONTAINER From: AA000001	-	1	Enquire
8124	PDI500012	INSULATOR - RADIATOR MOUNTING	PDI500012 INSULATOR - RADIATOR MOUNTING Radiator Mounting, Top / From: AA000001	-	2	Enquire
8146A	PGK500180	SHROUD - RADIATOR FAN	PGK500180 SHROUD - RADIATOR FAN For Hot Climate Zones / Upper / From: AA000001	-	1	Enquire
8146A	PGK500043	SHROUD - RADIATOR FAN	PGK500043 SHROUD - RADIATOR FAN For Cold Temperature Zones / Upper / From: AA000001	-	1	Enquire
8146B	PGK500052	SHROUD - FAN	PGK500052 SHROUD - FAN For Cold Temperature Zones / Lower / From: AA000001	-	1	Enquire
8146B	PGK500190	SHROUD - RADIATOR FAN	PGK500190 SHROUD - RADIATOR FAN For Hot Climate Zones / Lower / From: AA000001	-	1	Enquire
8600	PGG500350	FAN	PGG500350 FAN From: AA000001 / To: AA551386	-	1	Enquire
8600	LR025966	MOTOR AND FAN - ENGINE COOLING	LR025966 MOTOR AND FAN - ENGINE COOLING From: AA551387	-	1	Enquire
14603A	PCG500090	GROMMET	PCG500090 GROMMET RH, Round / From: AA000001	-	2	Enquire
14603B	PCG500011	GROMMET	PCG500011 GROMMET LH, Lower, Screw Type / From: AA000001	-	1	Enquire
116682A	DHE500010	SEAL	DHE500010 SEAL Top / From: AA000001	-	1	Enquire
116682B	PZB500020	SEAL	PZB500020 SEAL RH / From: AA000001	-	1	Enquire
