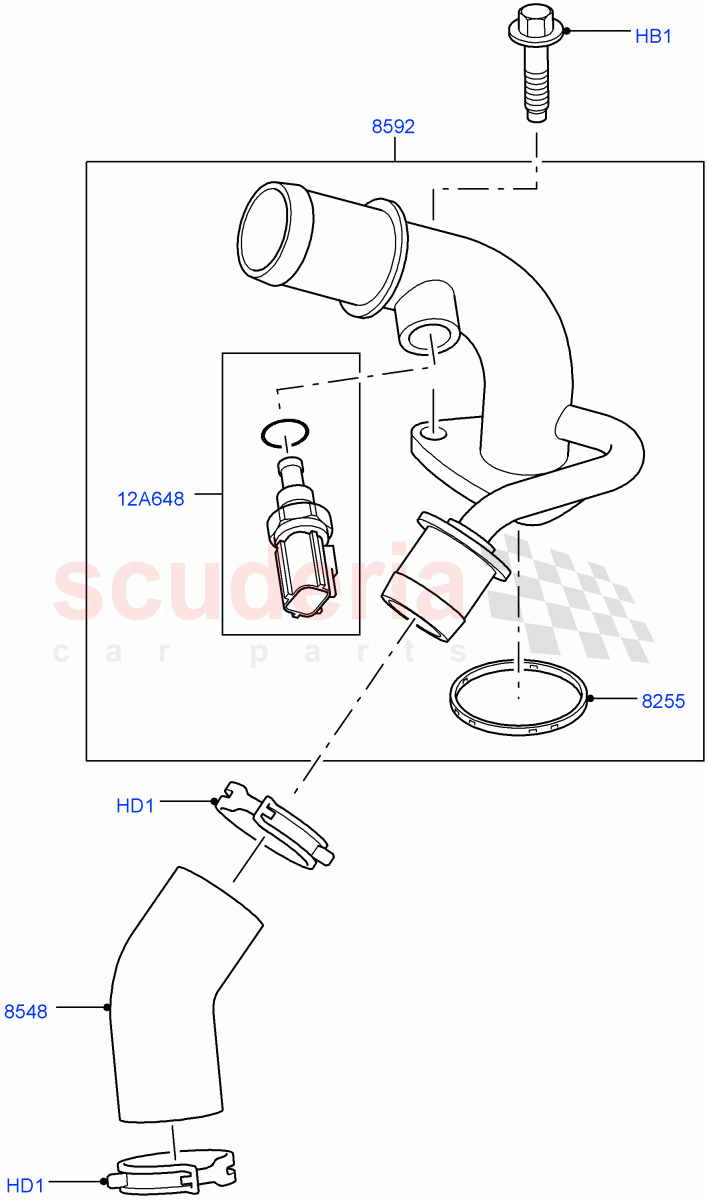

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4341356	BOLT - HEX. HEAD - FLANGED	$0.69	To Order

Photo	Part No	Description	Price (each)	Stock
	1093094	CLAMP	$6.12	To Order

Photo	Part No	Description	Price (each)	Stock
	4537669	GASKET	$1.53	To Order

Photo	Part No	Description	Price (each)	Stock
	1038353	TUBE	$8.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020008	CONNECTION - WATER OUTLET	$180.69	To Order

Photo	Part No	Description	Price (each)	Stock
	4537712	SENDER	$9.62	To Order
	LR019736	SENSOR - ENGINE COOLANT TEMPERATURE	$285.90	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	4341356	BOLT - HEX. HEAD - FLANGED	4341356 BOLT - HEX. HEAD - FLANGED For Japan Only Order With LR Prefix, M6 X 25MM / From: AA000001	$0.69	3
HD1	1093094	CLAMP	1093094 CLAMP 35MM, For Japan Only Order With LR Prefix / From: AA000001	$6.12	2
12A648	4537712	SENDER	4537712 SENDER For Japan Only Order With LR Prefix, Threaded/Screw In / From: AA000001 / To: AA333332	$9.62	1
12A648	LR019736	SENSOR - ENGINE COOLANT TEMPERATURE	LR019736 SENSOR - ENGINE COOLANT TEMPERATURE Threaded/Screw In / From: AA333333	$285.90	1
8255	4537669	GASKET	4537669 GASKET For Japan Only Order With LR Prefix / From: AA000001	$1.53	1
8548	1038353	TUBE	1038353 TUBE For Japan Only Order With LR Prefix / From: AA000001	$8.40	3
8592	LR020008	CONNECTION - WATER OUTLET	LR020008 CONNECTION - WATER OUTLET For Japan Only Order With LR Prefix / From: AA000001	$180.69	1
