Name: Inlet Manifold (Cologne V6 4.0 EFI (SOHC)) ((V) FROMAA000001)
Rating: 4.9 (1 reviews)

View All

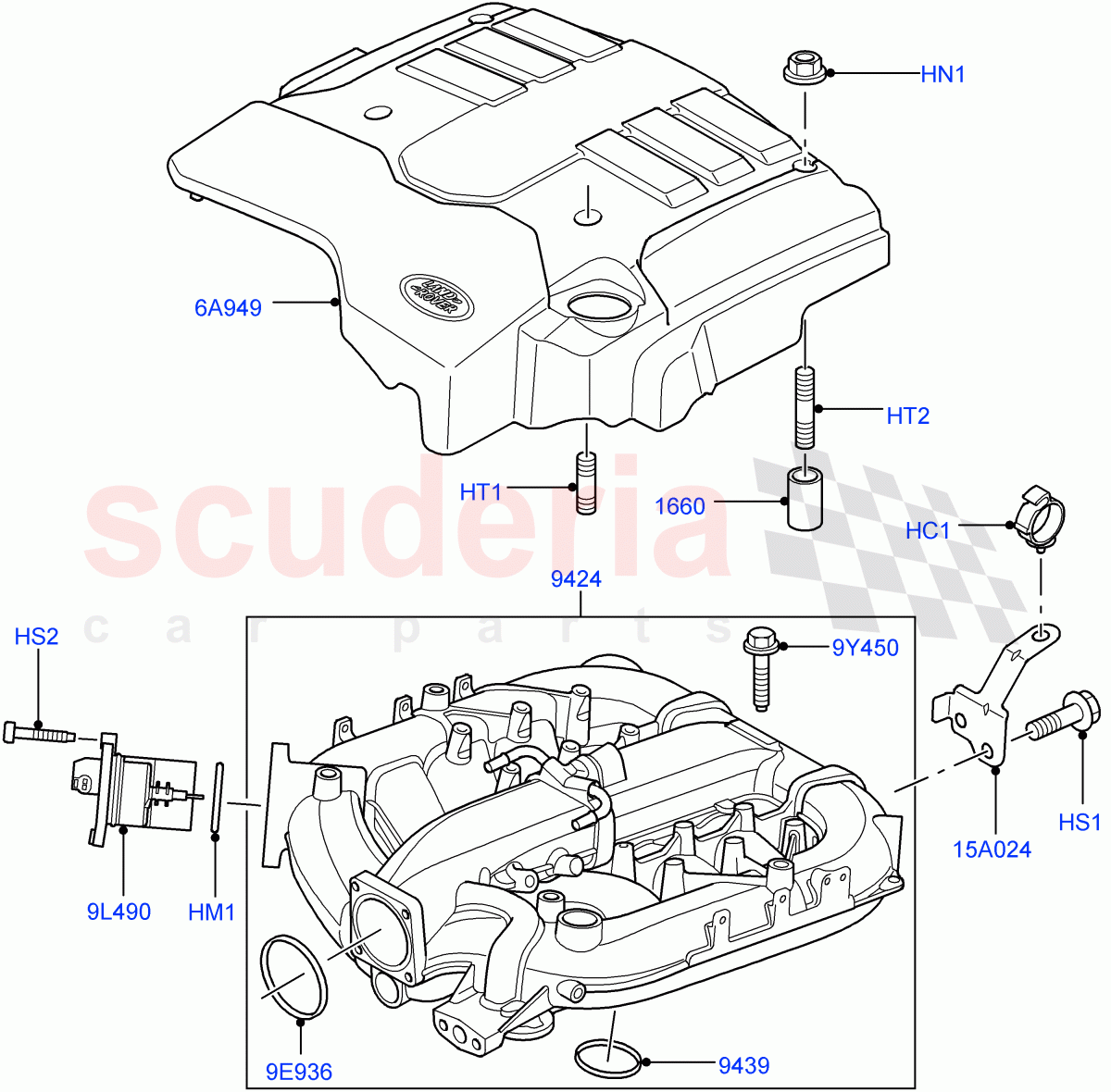

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	YQR500150	CLIP	$7.67	To Order

Photo	Part No	Description	Price (each)	Stock
	3903031	SEAL	$31.01	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106045L	NUT - HEX.	$1.09	To Order

Photo	Part No	Description	Price (each)	Stock
	FS105167	Screw	$0.18	To Order

Photo	Part No	Description	Price (each)	Stock
	4413274	SCREW	$0.51	To Order

Photo	Part No	Description	Price (each)	Stock
	TE106035	STUD	$0.74	To Order

Photo	Part No	Description	Price (each)	Stock
	TE106065	STUD	$0.74	To Order

Photo	Part No	Description	Price (each)	Stock
	AMW780020	SPACER	$2.77	To Order

Photo	Part No	Description	Price (each)	Stock
	4650786	MANIFOLD - INLET	$952.33	To Order

Photo	Part No	Description	Price (each)	Stock
	4537676	GASKET - INTAKE MANIFOLD	$5.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LBH500083	COVER	$164.97	To Order

Photo	Part No	Description	Price (each)	Stock
	4650787	GASKET	$5.69	To Order

Photo	Part No	Description	Price (each)	Stock
	4659929	VALVE - AIR	$251.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002496	BOLT	$3.90	To Order

Photo	Part No	Description	Price (each)	Stock
	YSU500055	BRACKET	$114.81	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	YQR500150	CLIP	YQR500150 CLIP Clip Wire Harness / From: AA000001	$7.67	1
HM1	3903031	SEAL	3903031 SEAL 2 3/8"O.D.-1/16"Thick / From: AA000001	$31.01	1
HN1	FN106045L	NUT - HEX.	FN106045L NUT - HEX. M6 x 1.0 / From: AA000001	$1.09	4
HS1	FS105167	Screw	FS105167 Screw M5 X 16MM / From: AA000001	$0.18	1
HS2	4413274	SCREW	4413274 SCREW 4 Per Package, M6X30 / From: AA000001	$0.51	4
HT1	TE106035	STUD	TE106035 STUD M6 / From: AA000001	$0.74	2
HT2	TE106065	STUD	TE106065 STUD M6 / From: AA000001	$0.74	2
6A949	LBH500083	COVER	LBH500083 COVER From: AA000001	$164.97	1
9E936	4650787	GASKET	4650787 GASKET From: AA000001	$5.69	1
9L490	4659929	VALVE - AIR	4659929 VALVE - AIR From: AA000001	$251.66	1
9Y450	LR002496	BOLT	LR002496 BOLT M6 X 33 / From: AA000001	$3.90	8
15A024	YSU500055	BRACKET	YSU500055 BRACKET From: AA000001	$114.81	1
1660	AMW780020	SPACER	AMW780020 SPACER From: AA000001	$2.77	2
9424	4650786	MANIFOLD - INLET	4650786 MANIFOLD - INLET From: AA000001	$952.33	1
9439	4537676	GASKET - INTAKE MANIFOLD	4537676 GASKET - INTAKE MANIFOLD From: AA000001	$5.62	6

Inlet Manifold (Cologne V6 4.0 Efi (Sohc)) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]
