Cylinder Block And Plugs (Cologne V6 4.0 EFI (SOHC)) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]

View All

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Cylinder Block And Plugs (Cologne V6 4.0 EFI (SOHC)) ((V) FROMAA000001)

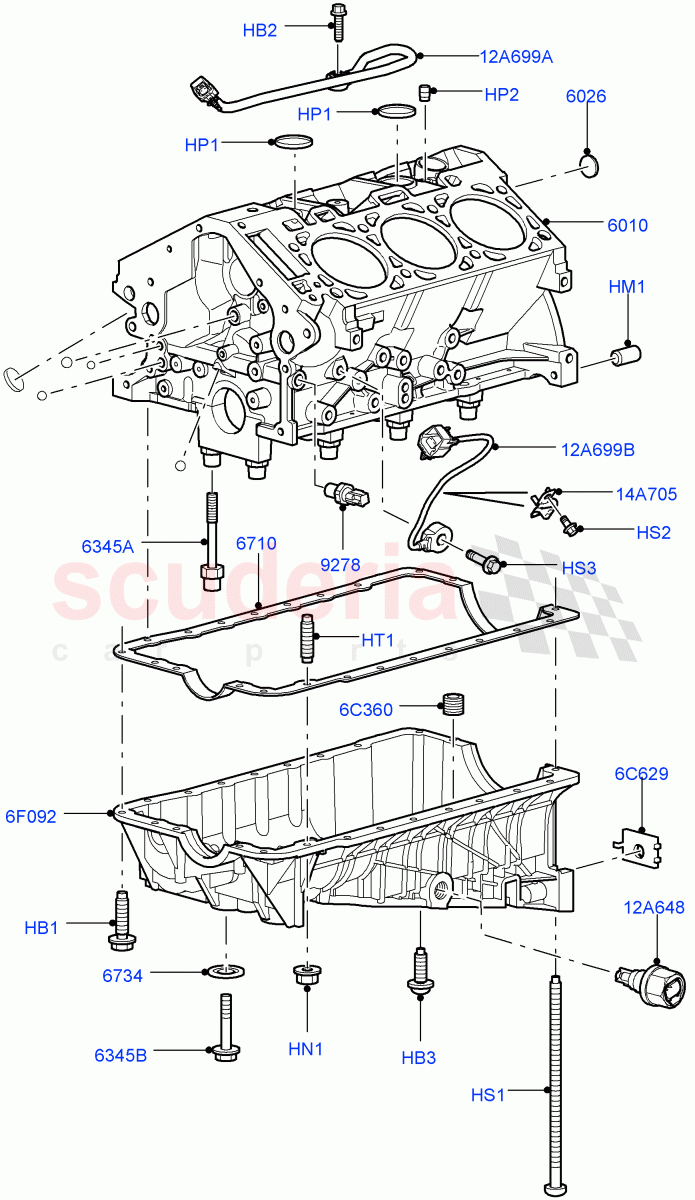

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000603	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000300	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4537596	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4650139	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4413736	NUT - HEX. - SELF-LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4646352	PLUG - EXPANSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1132271	PLUG - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4413735	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106127L	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108307L	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4537597	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007293	CYLINDER BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000431	PLUG - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1025228	GASKET - OIL PAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000437	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000619	SWITCH - OIL PRESSURE	Enquire	To Order
	LR027622	SWITCH - OIL PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000434	BOLT - BEARING CAP - HEX. HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1031345	BOLT - BEARING CAP - HEX. HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1025334	SCREW - ADJUSTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6426568	SPACER	Enquire	To Order
	6426569	SPACER	Enquire	To Order
	6426570	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4558766	BULKHEAD - FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4644891	SENSOR - ENGINE COOLANT TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	YQU500480	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3991033	SENSOR - ENGINE KNOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NSC500600	SENSOR - ENGINE KNOCK	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR000603	BOLT	LR000603 BOLT M6 X 20MM / From: AA000001	-	20	Enquire
HB2	LR000300	BOLT	LR000300 BOLT M8 X 30 / From: AA000001	-	1	Enquire
HB3	4537596	BOLT	4537596 BOLT M6 X 20MM / From: AA000001	-	1	Enquire
HM1	4650139	DOWEL	4650139 DOWEL 15.45 X 23MM, Pin - Dowell / From: AA000001	-	2	Enquire
HN1	4413736	NUT - HEX. - SELF-LOCKING	4413736 NUT - HEX. - SELF-LOCKING M6 / From: AA000001	-	2	Enquire
HP1	4646352	PLUG - EXPANSION	4646352 PLUG - EXPANSION -38MM / From: AA000001	-	2	Enquire
HP2	1132271	PLUG - ENGINE	1132271 PLUG - ENGINE 1/8" NPTF - 27 / From: AA000001	-	5	Enquire
HS1	4413735	SCREW	4413735 SCREW M6 X 11MM / From: AA000001	-	1	Enquire
HS2	FS106127L	SCREW	FS106127L SCREW HEX Flange, M6 x 12MM / From: AA000001	-	1	Enquire
HS3	FS108307L	SCREW	FS108307L SCREW M8 x 30MM / From: AA000001	-	1	Enquire
HT1	4537597	STUD	4537597 STUD M6 X 19 + M6 X 19 / From: AA000001	-	2	Enquire
6C360	1025334	SCREW - ADJUSTING	1025334 SCREW - ADJUSTING From: AA000001	-	8	Enquire
6C629	6426568	SPACER	6426568 SPACER .009'' Thick / From: AA000001	-	-	Enquire
6C629	6426569	SPACER	6426569 SPACER .0185'' Thick / From: AA000001	-	-	Enquire
6C629	6426570	SPACER	6426570 SPACER .028'' Thick / From: AA000001	-	-	Enquire
6F092	4558766	BULKHEAD - FRONT	4558766 BULKHEAD - FRONT From: AA000001	-	1	Enquire
12A648	4644891	SENSOR - ENGINE COOLANT TEMPERATURE	4644891 SENSOR - ENGINE COOLANT TEMPERATURE Used As Coolant Temp Sensor And Engine Oil Temp Sensor On Some Applications / From: AA000001	-	1	Enquire
12A699A	3991033	SENSOR - ENGINE KNOCK	3991033 SENSOR - ENGINE KNOCK From: AA000001	-	1	Enquire
12A699B	NSC500600	SENSOR - ENGINE KNOCK	NSC500600 SENSOR - ENGINE KNOCK From: AA000001	-	1	Enquire
14A705	YQU500480	BRACKET	YQU500480 BRACKET From: AA000001	-	1	Enquire
6010	LR007293	CYLINDER BLOCK	LR007293 CYLINDER BLOCK From: AA000001	-	1	Enquire
6026	LR000431	PLUG - ENGINE	LR000431 PLUG - ENGINE Rear / From: AA000001	-	1	Enquire
6345A	LR000434	BOLT - BEARING CAP - HEX. HEAD	LR000434 BOLT - BEARING CAP - HEX. HEAD M12 / From: AA000001	-	8	Enquire
6345B	1031345	BOLT - BEARING CAP - HEX. HEAD	1031345 BOLT - BEARING CAP - HEX. HEAD M8 X 45MM / From: AA000001	-	8	Enquire
6710	1025228	GASKET - OIL PAN	1025228 GASKET - OIL PAN Upper / From: AA000001	-	1	Enquire
6734	LR000437	GASKET	LR000437 GASKET (MM), 14 / From: AA000001	-	2	Enquire
9278	LR000619	SWITCH - OIL PRESSURE	LR000619 SWITCH - OIL PRESSURE From: AA000001 / To: AA999999	-	1	Enquire
9278	LR027622	SWITCH - OIL PRESSURE	LR027622 SWITCH - OIL PRESSURE From: BA000001	-	1	Enquire
