Cylinder Head (Cologne V6 4.0 EFI (SOHC)) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]

View All

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Cylinder Head (Cologne V6 4.0 EFI (SOHC)) ((V) FROMAA000001)

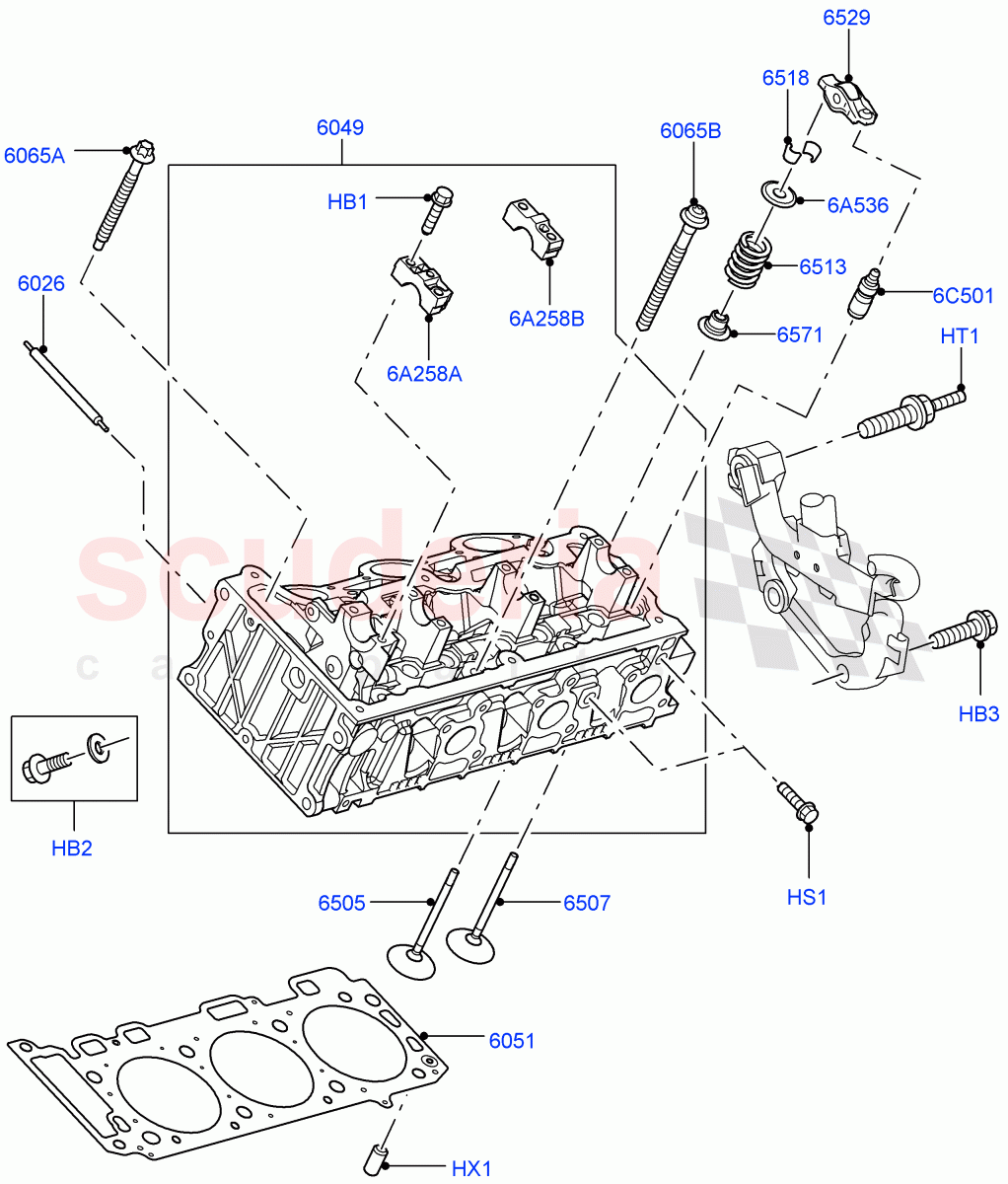

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1031404	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4357433	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3902863	BOLT - HEX. HEAD - FLANGED	Enquire	To Order
	4744021	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4413744	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4537594	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000396	Retainer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4068468	PLUG - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006057	CYLINDER HEAD	Enquire	To Order
	LR006058	CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003548	GASKET - CYLINDER HEAD	Enquire	To Order
	LR003549	GASKET - CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4438257	VALVE - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4438258	VALVE - INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4397912	SPRING - VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004433	COLLET - VALVE SPRING RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003909	ARM - VALVE ROCKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1025374	SEAL - VALVE STEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4345510	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1042848	BOLT - CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1025376	RETAINER - VALVE SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1025392	ADJUSTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4558817	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4558818	CAP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	1031404	BOLT	1031404 BOLT M7 X 1.0 X 38 / From: AA000001	-	16	Enquire
HB2	4357433	BOLT AND WASHER - HEX.HEAD	4357433 BOLT AND WASHER - HEX.HEAD M6 x 15 / From: AA000001	-	1	Enquire
HB3	3902863	BOLT - HEX. HEAD - FLANGED	3902863 BOLT - HEX. HEAD - FLANGED M10 x 35MM / From: AA000001 / To: AA999999	-	2	Enquire
HB3	4744021	BOLT	4744021 BOLT M10 x 35MM / From: BA000001	-	2	Enquire
HS1	4413744	SCREW	4413744 SCREW Lashing Eye, M12 x 25MM / From: AA000001	-	4	Enquire
HT1	4537594	STUD	4537594 STUD M10 X 40 + M8 X 29 / From: AA000001	-	1	Enquire
HX1	LR000396	Retainer	LR000396 Retainer Straight Dowel / From: AA000001	-	2	Enquire
6A258A	4558817	CAP	4558817 CAP From: AA000001	-	2	Enquire
6A258B	4558818	CAP	4558818 CAP From: AA000001	-	6	Enquire
6A536	1025376	RETAINER - VALVE SPRING	1025376 RETAINER - VALVE SPRING From: AA000001	-	12	Enquire
6C501	1025392	ADJUSTER	1025392 ADJUSTER From: AA000001	-	12	Enquire
6026	4068468	PLUG - ENGINE	4068468 PLUG - ENGINE From: AA000001	-	1	Enquire
6049	LR006057	CYLINDER HEAD	LR006057 CYLINDER HEAD RH, Excludes Valves / From: AA000001	-	1	Enquire
6049	LR006058	CYLINDER HEAD	LR006058 CYLINDER HEAD LH, Excludes Valves / From: AA000001	-	1	Enquire
6051	LR003548	GASKET - CYLINDER HEAD	LR003548 GASKET - CYLINDER HEAD RH, For Production Engines Only / From: AA000001	-	1	Enquire
6051	LR003549	GASKET - CYLINDER HEAD	LR003549 GASKET - CYLINDER HEAD LH, For Production Engines Only / From: AA000001	-	1	Enquire
6065A	4345510	BOLT - HEX.HEAD	4345510 BOLT - HEX.HEAD Cologne V6 4.0 EFI (SOHC) / M8 / From: AA000001	-	4	Enquire
6065B	1042848	BOLT - CYLINDER HEAD	1042848 BOLT - CYLINDER HEAD Cologne V6 4.0 EFI (SOHC) / From: AA000001	-	16	Enquire
6505	4438257	VALVE - EXHAUST	4438257 VALVE - EXHAUST From: AA000001	-	6	Enquire
6507	4438258	VALVE - INLET	4438258 VALVE - INLET From: AA000001	-	6	Enquire
6513	4397912	SPRING - VALVE	4397912 SPRING - VALVE From: AA000001	-	12	Enquire
6518	LR004433	COLLET - VALVE SPRING RETAINER	LR004433 COLLET - VALVE SPRING RETAINER From: AA000001	-	24	Enquire
6529	LR003909	ARM - VALVE ROCKER	LR003909 ARM - VALVE ROCKER From: AA000001	-	12	Enquire
6571	1025374	SEAL - VALVE STEM	1025374 SEAL - VALVE STEM From: AA000001	-	12	Enquire
