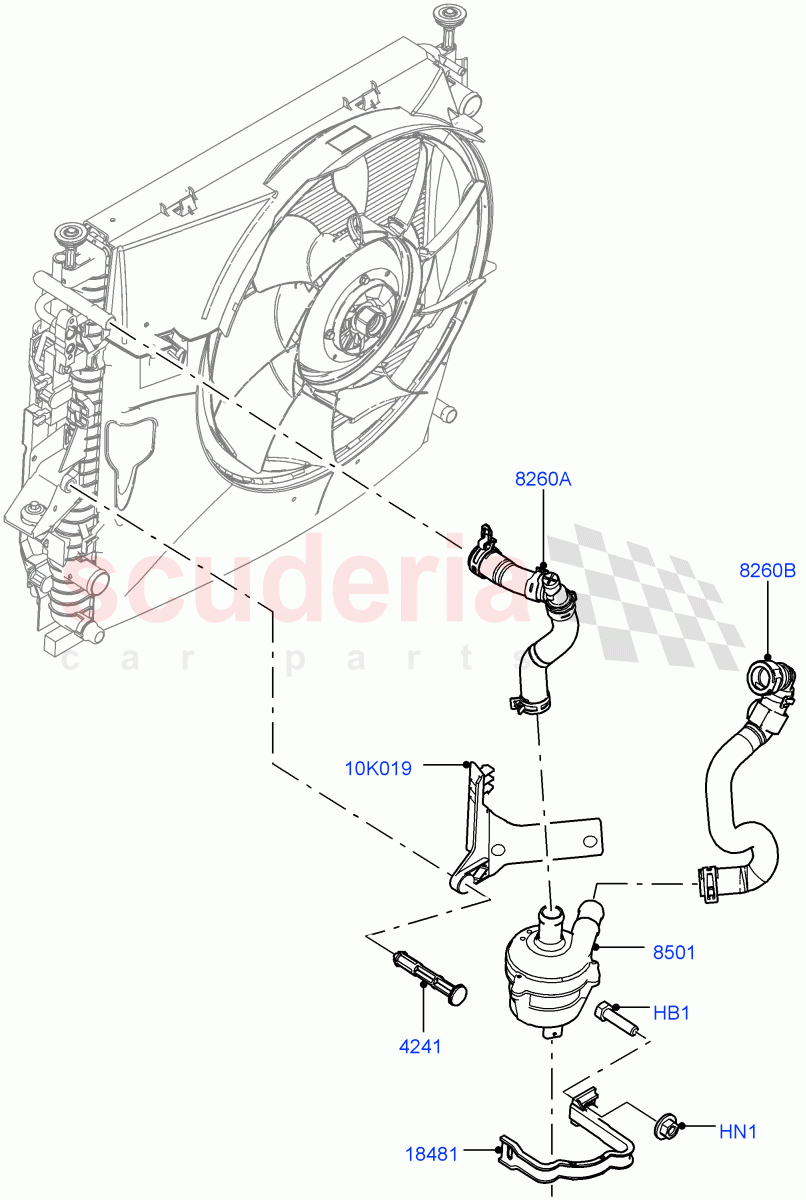

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR010328	Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086927	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019005	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061983	PUMP - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048860	CLAMP - WATER PUMP MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066140	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066138	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066136	BRACKET - PUMP SUPPORT	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR010328	Bolt	LR010328 Bolt M6 x 12MM / From: FA000001	-	1	Enquire
HN1	LR086927	Nut	LR086927 Nut M5 / From: FA000001	-	1	Enquire
10K019	LR066136	BRACKET - PUMP SUPPORT	LR066136 BRACKET - PUMP SUPPORT From: FA000001	-	1	Enquire
4241	LR019005	PIN	LR019005 PIN Water Pump / From: FA000001	-	1	Enquire
8260A	LR066140	HOSE - RADIATOR	LR066140 HOSE - RADIATOR Inlet, Water Pump / From: FA000001	-	1	Enquire
8260B	LR066138	HOSE - WATER	LR066138 HOSE - WATER Outlet, Water Pump / From: FA000001	-	1	Enquire
8501	LR061983	PUMP - WATER	LR061983 PUMP - WATER From: FA000001	-	1	Enquire
18481	LR048860	CLAMP - WATER PUMP MOUNTING	LR048860 CLAMP - WATER PUMP MOUNTING Water Pump / From: FA000001	-	1	Enquire
