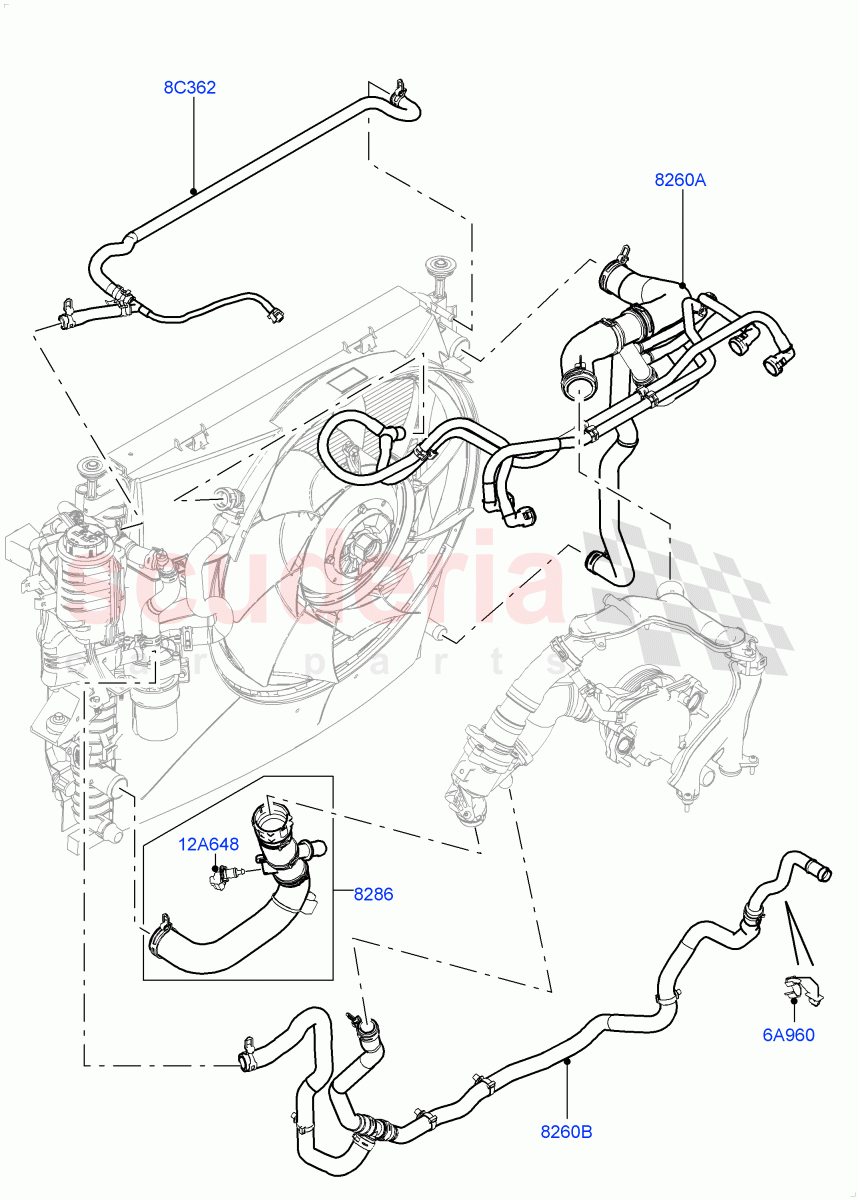

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR050855	HOSE - RADIATOR	$149.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014313	BRACKET - COOLING HOSE	$20.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050854	HOSE - RADIATOR	$184.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014567	HOSE	$69.41	To Order

Photo	Part No	Description	Price (each)	Stock
	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	$57.30	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
6A960	LR014313	BRACKET - COOLING HOSE	LR014313 BRACKET - COOLING HOSE To Heater Hoses / From: EA000001	$20.64	1
8C362	LR014567	HOSE	LR014567 HOSE Radiator To Expansion Tank Bleed, With Clips / From: EA000001	$69.41	1
12A648	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	4346360 SENSOR - ENGINE COOLANT TEMPERATURE From: EA000001	$57.30	1
8260A	LR050854	HOSE - RADIATOR	LR050854 HOSE - RADIATOR Radiator, Top / From: EA000001	$184.84	1
8260B	LR013693	HOSE	LR013693 HOSE To Expansion Tank, To Heater Hoses, To Thermostat, With Clips / From: EA000001 / To: EA999999	$142.06	1
8260B	LR066383	HOSE - WATER	LR066383 HOSE - WATER To Expansion Tank, To Heater Hoses, To Thermostat, With Clips / From: FA000001	$124.23	1
8286	LR050855	HOSE - RADIATOR	LR050855 HOSE - RADIATOR Bottom, Radiator, With Sensor / From: EA000001	$149.49	1
