Radiator/Coolant Overflow Container (Main Unit) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Radiator/Coolant Overflow Container (Main Unit) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001)

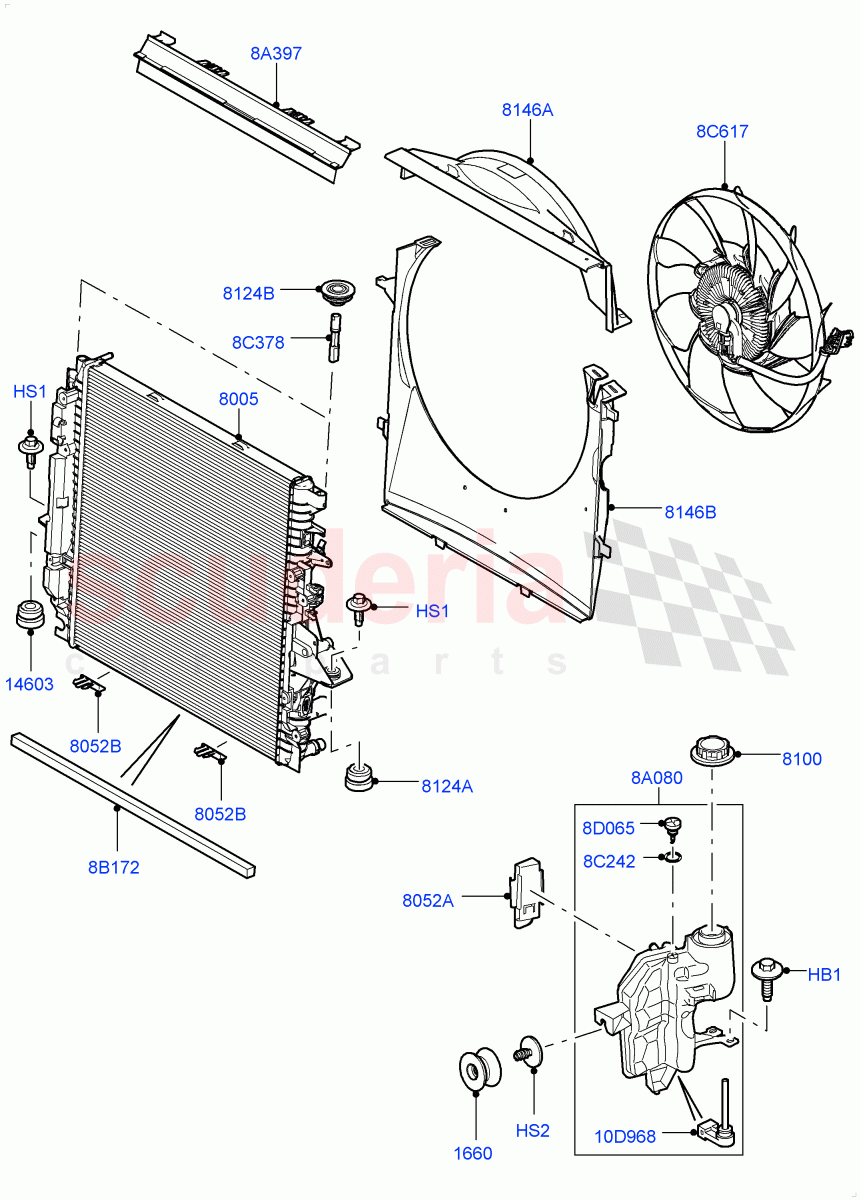

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	PYP500120	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PYP000221	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020269	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015830	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015560	RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR176861	CAP - OVERFLOW CONTAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCG500090	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCU500091	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016624	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCG500120	INSULATOR - RADIATOR SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PDI500012	INSULATOR - RADIATOR MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016208	SHROUD - RADIATOR FAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR030053	SHROUD - RADIATOR FAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020367	TANK - RADIATOR OVERFLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016215	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028946	FOAM - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007315	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PDG500045	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012644	FAN AND MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR055301	VALVE - BLEEDER SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCJ500030	SENSOR - COOLANT LEVEL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	PYP500120	BOLT	PYP500120 BOLT M6 X 20MM / From: EA000001	-	2	Enquire
HS1	PYP000221	SCREW AND WASHER	PYP000221 SCREW AND WASHER M8 X 25MM / From: EA000001	-	2	Enquire
HS2	LR020269	SCREW	LR020269 SCREW 4.2 X 19MM / From: EA000001	-	1	Enquire
8A080	LR020367	TANK - RADIATOR OVERFLOW	LR020367 TANK - RADIATOR OVERFLOW From: EA000001	-	1	Enquire
8A397	LR016215	SEAL	LR016215 SEAL Radiator, Upper / From: EA000001	-	1	Enquire
8B172	LR028946	FOAM - SEALING	LR028946 FOAM - SEALING Lower, Radiator / From: EA000001	-	1	Enquire
8C242	LR007315	SEAL	LR007315 SEAL Bleeder Screw / From: EA000001	-	1	Enquire
8C378	PDG500045	PIN	PDG500045 PIN Radiator Mounting, Top / From: EA000001	-	2	Enquire
8C617	LR012644	FAN AND MOTOR	LR012644 FAN AND MOTOR From: EA000001	-	1	Enquire
8D065	LR055301	VALVE - BLEEDER SCREW	LR055301 VALVE - BLEEDER SCREW Bleeder Screw / From: EA000001	-	1	Enquire
10D968	PCJ500030	SENSOR - COOLANT LEVEL	PCJ500030 SENSOR - COOLANT LEVEL From: EA000001	-	1	Enquire
1660	LR015830	SPACER	LR015830 SPACER Expansion Tank / From: EA000001	-	1	Enquire
8005	LR015560	RADIATOR	LR015560 RADIATOR From: EA000001	-	1	Enquire
8052A	PCU500091	BRACKET	PCU500091 BRACKET Expansion Tank / From: EA000001	-	1	Enquire
8052B	LR016624	BRACKET	LR016624 BRACKET Bottom, Radiator / From: EA000001	-	1	Enquire
8100	LR176861	CAP - OVERFLOW CONTAINER	LR176861 CAP - OVERFLOW CONTAINER From: EA000001	-	1	Enquire
8124A	PCG500120	INSULATOR - RADIATOR SUPPORT	PCG500120 INSULATOR - RADIATOR SUPPORT LH, Lower, Round / From: EA000001	-	1	Enquire
8124B	PDI500012	INSULATOR - RADIATOR MOUNTING	PDI500012 INSULATOR - RADIATOR MOUNTING Radiator Mounting, Top / From: EA000001	-	2	Enquire
8146A	LR016208	SHROUD - RADIATOR FAN	LR016208 SHROUD - RADIATOR FAN Upper / From: EA000001	-	1	Enquire
8146B	LR030053	SHROUD - RADIATOR FAN	LR030053 SHROUD - RADIATOR FAN Lower / From: EA000001	-	1	Enquire
14603	PCG500090	GROMMET	PCG500090 GROMMET RH, Lower, Round / From: EA000001	-	1	Enquire
