Air Conditioning Condensr/Compressr (Front / Rear, Solihull Plant Build) (With Air Conditioning -...

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Air Conditioning Condensr/Compressr (Front / Rear, Solihull Plant Build) (With Air Conditioning -...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500800 BOLT $0.50 To Order
Photo Part No Description Price (each) Stock
LR011519 CLIP $1.97 IN STOCK
Photo Part No Description Price (each) Stock
LR051520 CLIP - SINGLE $3.36 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.45 IN STOCK
Photo Part No Description Price (each) Stock
LR038544 NUT $2.01 To Order
Photo Part No Description Price (each) Stock
LR044466 O-RING $4.16 To Order
Photo Part No Description Price (each) Stock
LR044465 O-RING $2.81 To Order
Photo Part No Description Price (each) Stock
RYG500220 SCREW $3.31 IN STOCK
Photo Part No Description Price (each) Stock
FS106256 SCREW $0.42 To Order
Photo Part No Description Price (each) Stock
LR038548 BRACKET - A/C PIPE $20.33 To Order
Photo Part No Description Price (each) Stock
LR036404 SEAL - RUBBER $21.48 To Order
Photo Part No Description Price (each) Stock
LR050806 TUBE- A/C EVAPORATOR INLET & OUTLET $481.04 To Order
LR050808 TUBE- A/C EVAPORATOR INLET & OUTLET $356.39 To Order
Photo Part No Description Price (each) Stock
LR085576 TUBE - AUXILIARY EVAPORATOR $177.03 To Order
LR099641 TUBE - AUXILIARY EVAPORATOR $171.40 To Order
Photo Part No Description Price (each) Stock
LR072189 TUBE - AUXILIARY HEATER SUPPLY $364.56 To Order
Photo Part No Description Price (each) Stock
LR085577 TUBE - AUXILIARY EVAPORATOR $129.81 To Order
View All

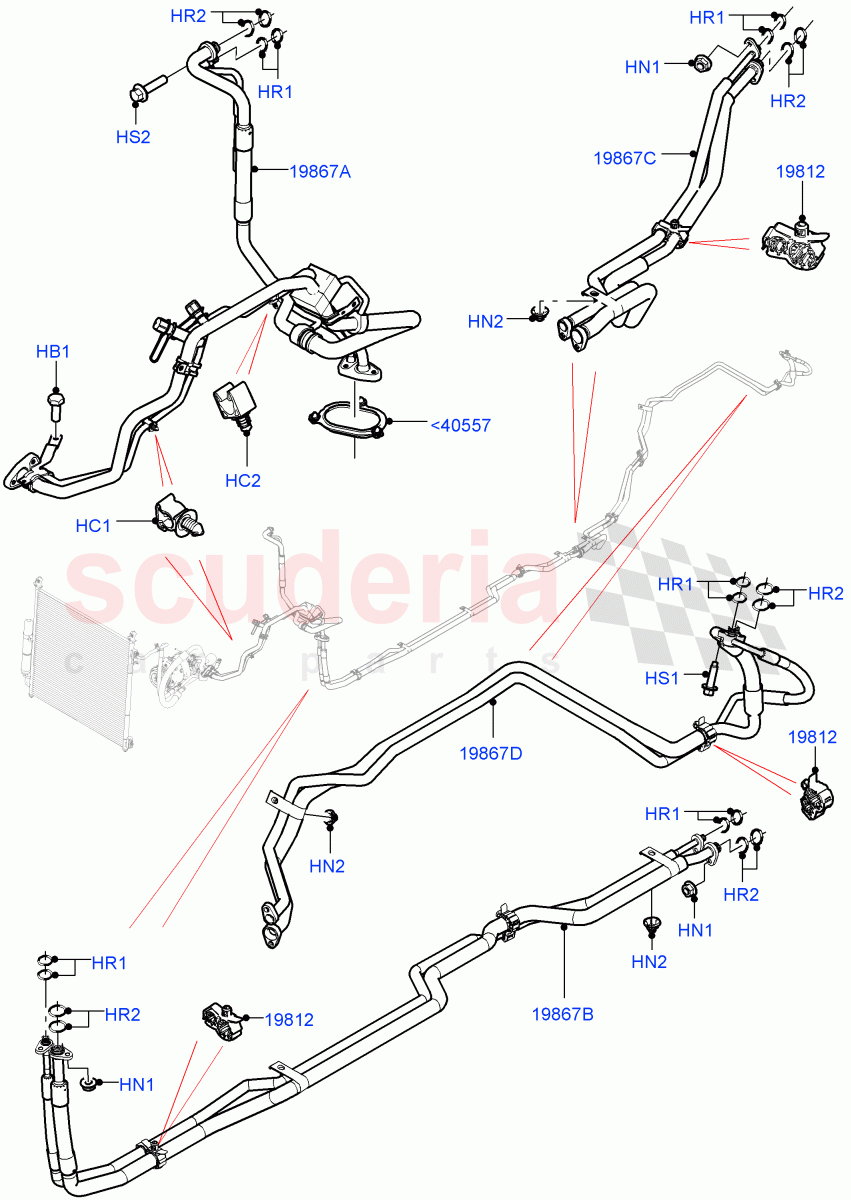

Air Conditioning Condensr/Compressr (Front / Rear, Solihull Plant Build) (With Air Conditioning - Front/Rear) ((V) FROMHA000001, (V) TOJA999999) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<40557 LR036404
SEAL - RUBBER 		$21.48 1
HB1 RYG500800
BOLT
Hexagonal Head, M6 X 16MM 		$0.50 4
HC1 LR011519
CLIP
9.5 X 6 X 2, Single
IN STOCK 		$1.97 1
HC2 LR051520
CLIP - SINGLE
Single 		$3.36 1
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.45 6
HN2 LR038544
NUT
6 X 1.6MM 		$2.01 4
HR1 LR044466
O-RING
7.65 X 1.78 		$4.16 10
HR2 LR044465
O-RING
14 X 1.78 		$2.81 10
HS1 RYG500220
SCREW
Hexagonal Head, M6 X 20MM
IN STOCK 		$3.31 2
HS2 FS106256
SCREW
HEX Flange, M6 x 25MM 		$0.42 1
19812 LR038548
BRACKET - A/C PIPE 		$20.33 4
19867A LR050806
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Conditioning Refrigerant-R134A / Condenser To Evaporator, With Rear A/C 		$481.04 1
19867A LR050808
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Con Refrigerant-HF01234YF / Condenser To Evaporator, With Rear A/C 		$356.39 1
19867B LR085576
TUBE - AUXILIARY EVAPORATOR
Front, Set Of 2 Pieces, With Rear A/C / To: HA999999 		$177.03 1
19867B LR099641
TUBE - AUXILIARY EVAPORATOR
Front, Set Of 2 Pieces, With Rear A/C / From: JA000001 		$171.40 1
19867C LR072189
TUBE - AUXILIARY HEATER SUPPLY
Middle, Set Of 2 Pieces, With Rear Air Conditioning 		$364.56 1
19867D LR085577
TUBE - AUXILIARY EVAPORATOR
Connects To Rear Evaporator Core, Rear, Set Of 2 Pieces, With Rear A/C 		$129.81 1
