Name: Air Conditioning Condensr/Compressr (Front, Solihull Plant Build) (3.0 V6 D Low MT ROW, 3.0 V6 D Gen2 Twin Turbo, 3.0 V6 D Gen2 Mono Turbo) ((V) FROMHA000001)
Rating: 4.7 (1 reviews)

Air Conditioning Condensr/Compressr (Front, Solihull Plant Build) (3.0 V6 D Low MT ROW, 3.0 V6 D Gen2 Twin Turbo, 3.0 V6 D Gen2 Mono Turbo) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Air Conditioning Condensr/Compressr (Front, Solihull Plant Build) (3.0 V6 D Low MT ROW, 3.0 V6 D...

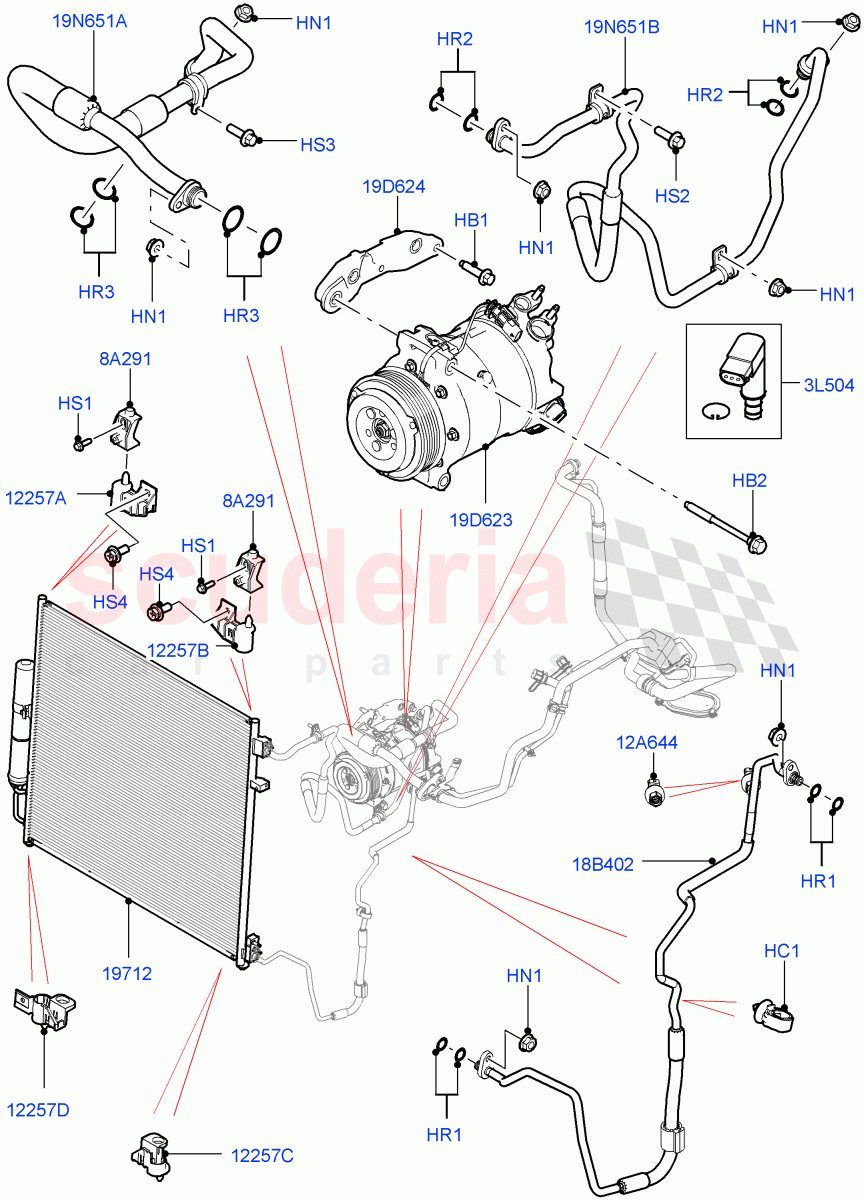

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500290	BOLT - HEX.HEAD	$0.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR005074	BOLT	$1.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035462	CLIP - HOSE	$3.20	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR044466	O-RING	$4.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054871	O-RING	$3.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054870	O-RING	$3.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018707	SCREW	$1.00	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106206	SCREW	$0.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500160	SCREW	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	FS105106	SCREW	$0.76	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR062424	CONDENSER	$592.35	To Order
	LR181384	CONDENSER	$587.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR086045	KIT - VALVE REPAIR	$168.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062331	BRACKET - RADIATOR	$17.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063161	BRACKET - INTERCOOLER RADIATOR	$6.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063162	BRACKET - INTERCOOLER RADIATOR	$6.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063164	BRACKET - INTERCOOLER RADIATOR	$5.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063165	BRACKET - INTERCOOLER RADIATOR	$6.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086926	SENSOR - REFRIGERANT PRESSURE	$229.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082205	HOSE - AIR CONDITIONING	$193.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086044	COMPRESSOR - AIR CONDITIONING	$1,344.39	To Order
	LR112584	COMPRESSOR - AIR CONDITIONING	$1,649.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013376	BRACKET - COMPRESSOR	$24.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061874	TUBE - COMPRESSOR DELIVERY	$212.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061873	TUBE - COMPRESSOR LINE	$212.85	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG500290	BOLT - HEX.HEAD IN STOCK	RYG500290 BOLT - HEX.HEAD HEX Flange, Hexagonal Head, M8 x 30MM IN STOCK	$0.50	2
HB2	LR005074	BOLT	LR005074 BOLT HEX Flange, Hexagonal Head, M8 X 96.5	$1.11	3
HC1	LR035462	CLIP - HOSE	LR035462 CLIP - HOSE For Air Conditioning Hose	$3.20	1
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 IN STOCK	$1.45	7
HR1	LR044466	O-RING	LR044466 O-RING 7.65 X 1.78	$4.16	4
HR2	LR054871	O-RING	LR054871 O-RING 10.82MM X 1.78MM	$3.17	4
HR3	LR054870	O-RING	LR054870 O-RING 16.5 X 1.78MM	$3.39	4
HS1	LR018707	SCREW	LR018707 SCREW 6X20, Hexagonal Head	$1.00	2
HS2	FS106206	SCREW IN STOCK	FS106206 SCREW Hexagonal Head, M6 X 20MM IN STOCK	$0.97	1
HS3	RYG500160	SCREW	RYG500160 SCREW Hexagonal Head, M6 X 14MM	$0.59	1
HS4	FS105106	SCREW IN STOCK	FS105106 SCREW M5 X 10MM IN STOCK	$0.76	2
3L504	LR086045	KIT - VALVE REPAIR	LR086045 KIT - VALVE REPAIR Includes A/C Compressor Control Valve And Snap Ring / To: HA000910	$168.78	1
8A291	LR062331	BRACKET - RADIATOR	LR062331 BRACKET - RADIATOR Air Conditioning Condenser	$17.28	2
12A644	LR086926	SENSOR - REFRIGERANT PRESSURE	LR086926 SENSOR - REFRIGERANT PRESSURE Refrigerant Pressure Sensor	$229.94	1
18B402	LR082205	HOSE - AIR CONDITIONING	LR082205 HOSE - AIR CONDITIONING Condenser Outlet	$193.36	1
19D623	LR086044	COMPRESSOR - AIR CONDITIONING	LR086044 COMPRESSOR - AIR CONDITIONING To: HA000910	$1,344.39	1
19D623	LR112584	COMPRESSOR - AIR CONDITIONING	LR112584 COMPRESSOR - AIR CONDITIONING From: HA000911	$1,649.66	1
19D624	LR013376	BRACKET - COMPRESSOR	LR013376 BRACKET - COMPRESSOR Air Conditioning Compressor Bracket	$24.83	1
19N651A	LR061874	TUBE - COMPRESSOR DELIVERY	LR061874 TUBE - COMPRESSOR DELIVERY Compressor Inlet	$212.85	1
19N651B	LR061873	TUBE - COMPRESSOR LINE	LR061873 TUBE - COMPRESSOR LINE Condenser Inlet Tube	$212.85	1
12257A	LR063161	BRACKET - INTERCOOLER RADIATOR	LR063161 BRACKET - INTERCOOLER RADIATOR RH Upper	$6.17	1
12257B	LR063162	BRACKET - INTERCOOLER RADIATOR	LR063162 BRACKET - INTERCOOLER RADIATOR LH Upper	$6.17	1
12257C	LR063164	BRACKET - INTERCOOLER RADIATOR	LR063164 BRACKET - INTERCOOLER RADIATOR LH Lower	$5.94	1
12257D	LR063165	BRACKET - INTERCOOLER RADIATOR	LR063165 BRACKET - INTERCOOLER RADIATOR RH Lower	$6.27	1
19712	LR062424	CONDENSER	LR062424 CONDENSER To: HA025896	$592.35	1
19712	LR181384	CONDENSER IN STOCK	LR181384 CONDENSER From: HA025897 IN STOCK	$587.03	1
