Air Conditioning Condensr/Compressr (Front, Solihull Plant Build) (2.0L I4 DSL MID DOHC AJ200, 2.0L I4 High DOHC AJ200 Petrol, 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Air Conditioning Condensr/Compressr (Front, Solihull Plant Build) (2.0L I4 DSL MID DOHC AJ200, 2.0L...

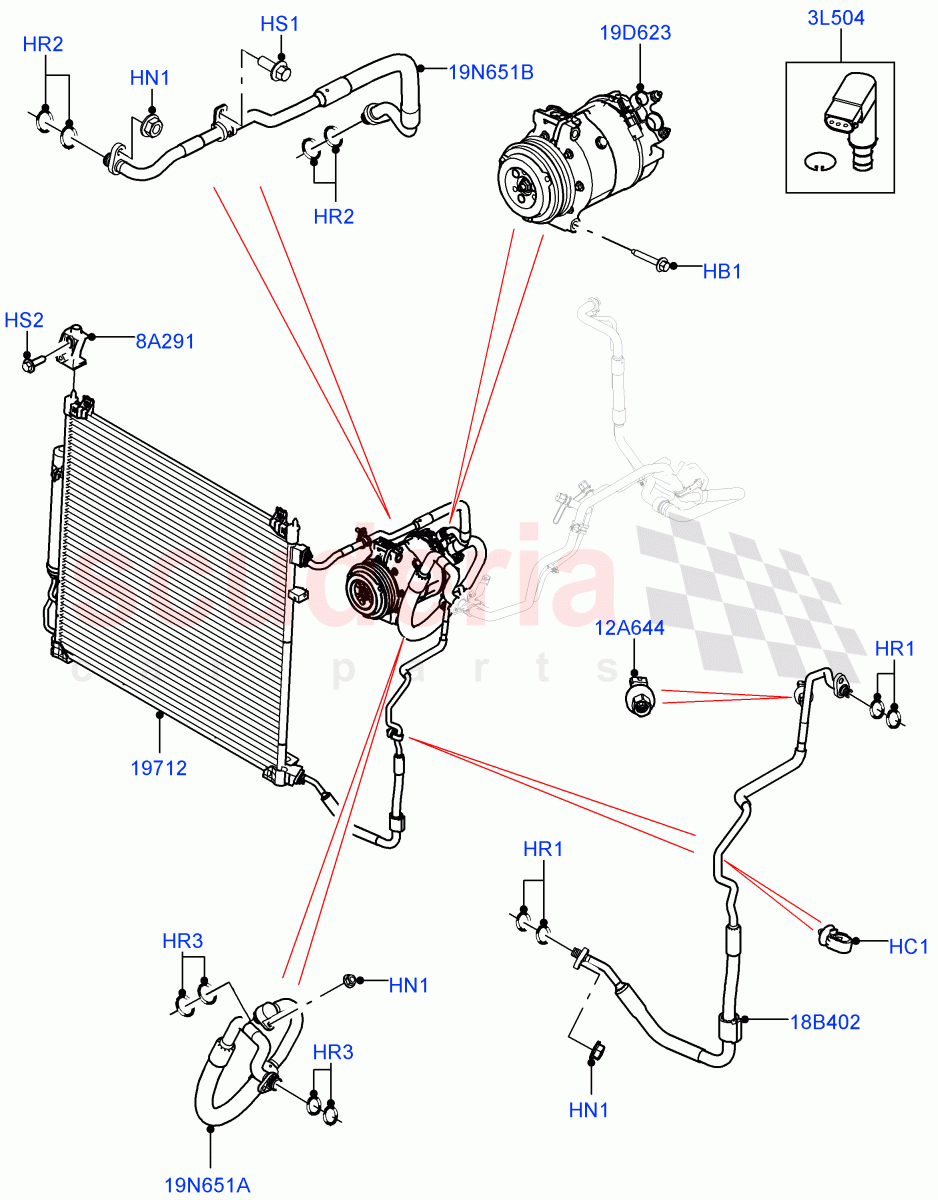

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR005074	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035462	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044466	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054871	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054870	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018707	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093455	CONDENSER	Enquire	To Order
	LR097269	CONDENSER	Enquire	To Order
	LR100570	CONDENSER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086045	KIT - VALVE REPAIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062331	BRACKET - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086926	SENSOR - REFRIGERANT PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082206	HOSE - AIR CONDITIONING	Enquire	To Order
	LR099645	HOSE - AIR CONDITIONING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086043	COMPRESSOR - AIR CONDITIONING	Enquire	To Order
	LR112585	COMPRESSOR - AIR CONDITIONING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085580	TUBE - A/C COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085584	TUBE - A/C COMPRESSOR	Enquire	To Order
	LR099647	TUBE - COMPRESSOR LINE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR005074	BOLT	LR005074 BOLT HEX Flange, Hexagonal Head, M8 X 96.5	-	3	Enquire
HC1	LR035462	CLIP - HOSE	LR035462 CLIP - HOSE For Air Conditioning Hose	-	1	Enquire
HN1	FN106046	NUT - HEX.	FN106046 NUT - HEX. Hexagonal Head, M6	-	6	Enquire
HR1	LR044466	O-RING	LR044466 O-RING 7.65 X 1.78	-	4	Enquire
HR2	LR054871	O-RING	LR054871 O-RING 10.82MM X 1.78MM	-	4	Enquire
HR3	LR054870	O-RING	LR054870 O-RING 16.5 X 1.78MM	-	4	Enquire
HS1	FS106166	SCREW	FS106166 SCREW Hexagonal Head, M6 X 16MM	-	1	Enquire
HS2	LR018707	SCREW	LR018707 SCREW 6X20, Hexagonal Head	-	2	Enquire
3L504	LR086045	KIT - VALVE REPAIR	LR086045 KIT - VALVE REPAIR Includes A/C Compressor Control Valve And Snap Ring / To: HA000802	-	1	Enquire
8A291	LR062331	BRACKET - RADIATOR	LR062331 BRACKET - RADIATOR Air Conditioning Condenser	-	2	Enquire
12A644	LR086926	SENSOR - REFRIGERANT PRESSURE	LR086926 SENSOR - REFRIGERANT PRESSURE Refrigerant Pressure Sensor	-	1	Enquire
18B402	LR082206	HOSE - AIR CONDITIONING	LR082206 HOSE - AIR CONDITIONING Condenser Outlet / To: HA999999	-	1	Enquire
18B402	LR099645	HOSE - AIR CONDITIONING	LR099645 HOSE - AIR CONDITIONING Condenser Outlet / From: JA000001	-	1	Enquire
19D623	LR086043	COMPRESSOR - AIR CONDITIONING	LR086043 COMPRESSOR - AIR CONDITIONING To: HA000802	-	1	Enquire
19D623	LR112585	COMPRESSOR - AIR CONDITIONING	LR112585 COMPRESSOR - AIR CONDITIONING From: HA000803	-	1	Enquire
19N651A	LR085580	TUBE - A/C COMPRESSOR	LR085580 TUBE - A/C COMPRESSOR Compressor Inlet	-	1	Enquire
19N651B	LR085584	TUBE - A/C COMPRESSOR	LR085584 TUBE - A/C COMPRESSOR 2.0L I4 DSL HIGH DOHC AJ200 / Condenser Inlet Tube	-	1	Enquire
19N651B	LR099647	TUBE - COMPRESSOR LINE	LR099647 TUBE - COMPRESSOR LINE 2.0L I4 High DOHC AJ200 Petrol / Condenser Inlet Tube / From: JA000001	-	1	Enquire
19712	LR093455	CONDENSER	LR093455 CONDENSER To: HA003222	-	1	Enquire
19712	LR097269	CONDENSER	LR097269 CONDENSER From: HA003223 / To: HA999999	-	1	Enquire
19712	LR100570	CONDENSER	LR100570 CONDENSER From: JA000001	-	1	Enquire
