Name: Front Suspension Struts And Springs (Solihull Plant Build) (With Four Corner Air Suspension) ((V) FROMHA000001)
Rating: 5.0 (1 reviews)

Front Suspension Struts And Springs (Solihull Plant Build) (With Four Corner Air Suspension) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Front Suspension Struts And Springs (Solihull Plant Build) (With Four Corner Air Suspension) ((V)...

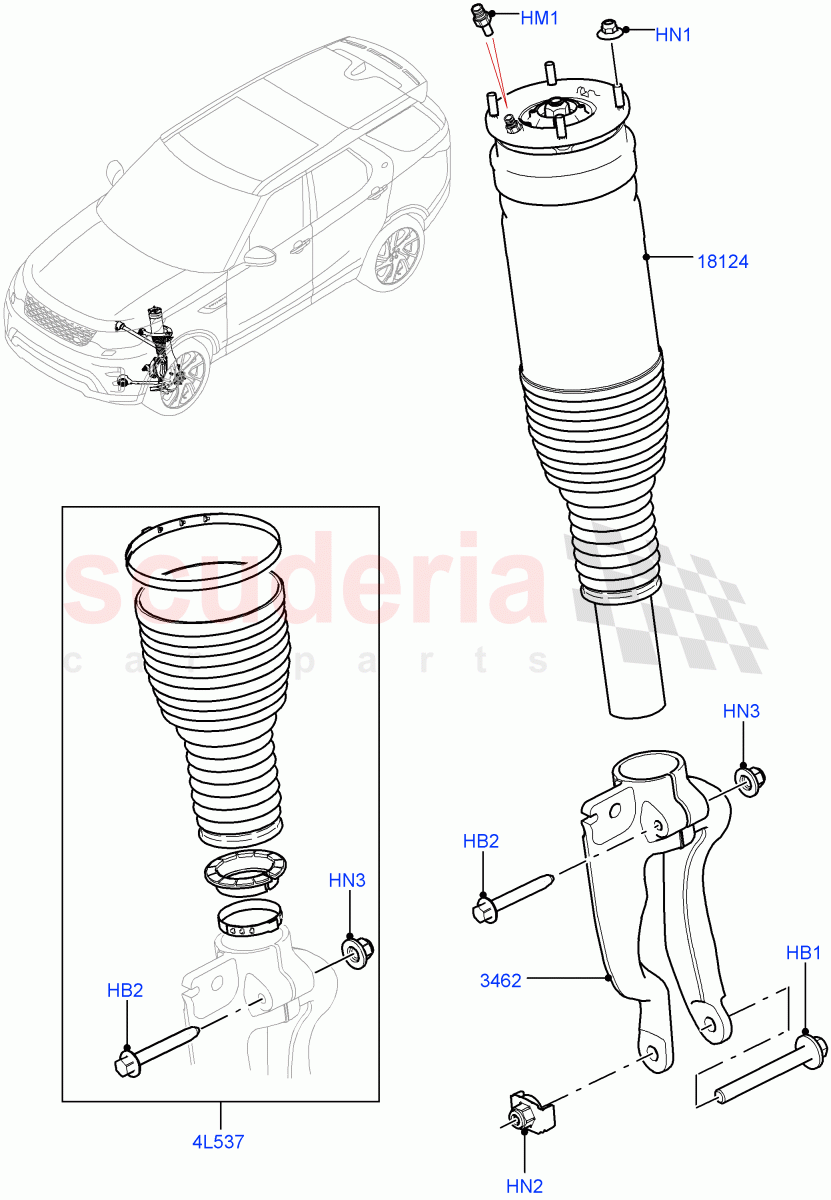

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR034230	BOLT	$9.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000094	BOLT - HEX.HEAD	$1.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR044836	CONNECTOR - VALVE BLOCK TO PIPE	$23.10	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR033202	NUT	$1.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR161093	NUT	$1.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FN112056	NUT - HEX. - FLANGED	$1.13	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR105283	YOKE - SUSPENSION	$409.24	To Order
	LR105282	YOKE - SUSPENSION	$409.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081560	MACPHERSON STRUT	$1,681.56	To Order
	LR081564	MACPHERSON STRUT	$1,681.56	To Order
	LR081560	MACPHERSON STRUT	$1,681.56	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR038813	KIT - BOOT (NON HAZ)	$63.37	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR034230	BOLT	LR034230 BOLT Hexagonal Head, M14 x 120	$9.50	2
HB2	LR000094	BOLT - HEX.HEAD IN STOCK	LR000094 BOLT - HEX.HEAD M12 x 75MM IN STOCK	$1.11	2
HM1	LR044836	CONNECTOR - VALVE BLOCK TO PIPE IN STOCK	LR044836 CONNECTOR - VALVE BLOCK TO PIPE 6MM, Connector IN STOCK	$23.10	2
HN1	LR033202	NUT IN STOCK	LR033202 NUT M8 IN STOCK	$1.38	8
HN2	LR161093	NUT IN STOCK	LR161093 NUT Flag Type, M14 IN STOCK	$1.67	2
HN3	FN112056	NUT - HEX. - FLANGED IN STOCK	FN112056 NUT - HEX. - FLANGED M12 IN STOCK	$1.13	2
4L537	LR038813	KIT - BOOT (NON HAZ)	LR038813 KIT - BOOT (NON HAZ) Includes Gaiter, Sliding Bush, Mounting Clamps, Bolt And Nut	$63.37	1
3462	LR105283	YOKE - SUSPENSION	LR105283 YOKE - SUSPENSION LH, Shock Absorber	$409.24	1
3462	LR105282	YOKE - SUSPENSION	LR105282 YOKE - SUSPENSION RH, Shock Absorber	$409.24	1
18124	LR081560	MACPHERSON STRUT	LR081560 MACPHERSON STRUT RH / To: HA999999	$1,681.56	1
18124	LR081564	MACPHERSON STRUT	LR081564 MACPHERSON STRUT LH / To: HA999999	$1,681.56	1
18124	LR081560	MACPHERSON STRUT	LR081560 MACPHERSON STRUT Less Adaptive Damping / RH / From: JA000001 / To: KA085652	$1,681.56	1
18124	LR102250	SHOCK ABSORBER	LR102250 SHOCK ABSORBER With Continuous Variable Damping / RH / From: JA000001	$1,036.99	1
18124	LR081564	MACPHERSON STRUT	LR081564 MACPHERSON STRUT Less Adaptive Damping / LH / From: JA000001 / To: KA085652	$1,681.56	1
18124	LR102253	SHOCK ABSORBER	LR102253 SHOCK ABSORBER With Continuous Variable Damping / LH / From: JA000001	$1,100.15	1
18124	LR123641	MACPHERSON STRUT	LR123641 MACPHERSON STRUT Less Adaptive Damping / RH / From: KA085653	$1,783.97	1
18124	LR123712	MACPHERSON STRUT	LR123712 MACPHERSON STRUT Less Adaptive Damping / LH / From: KA085653	$1,855.35	1
